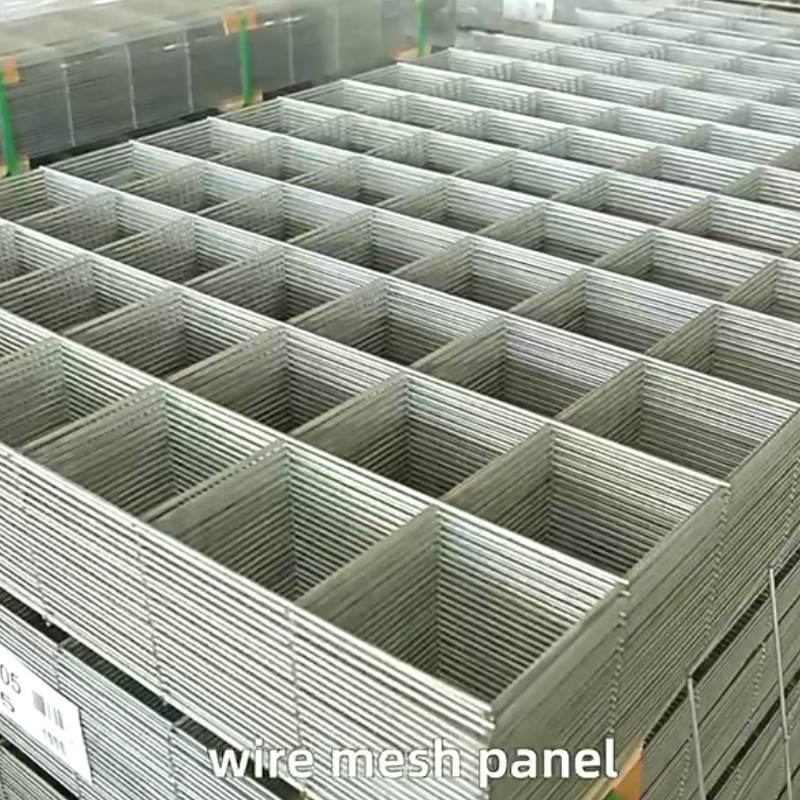

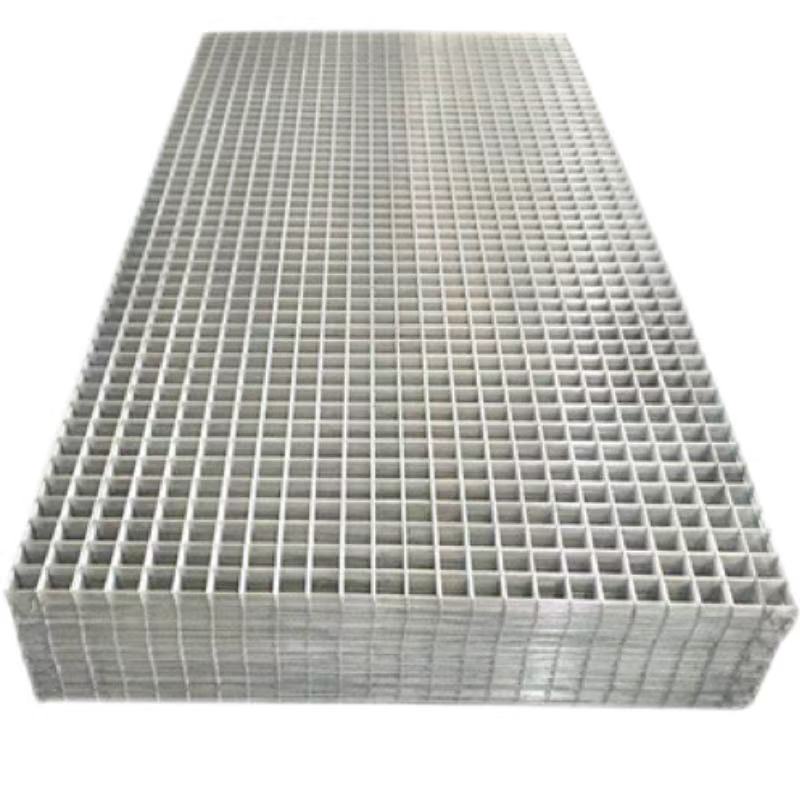

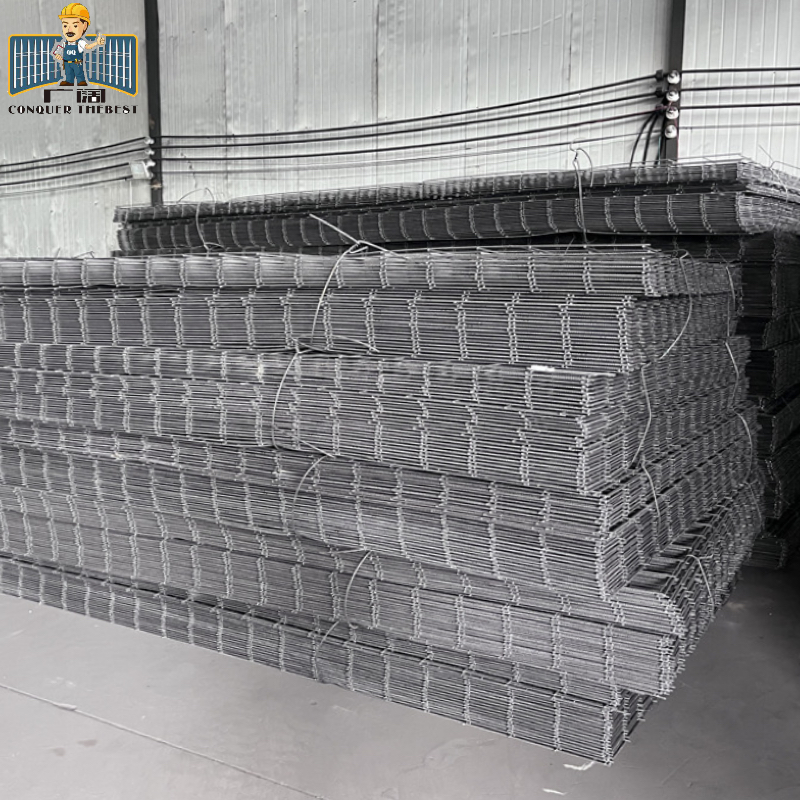

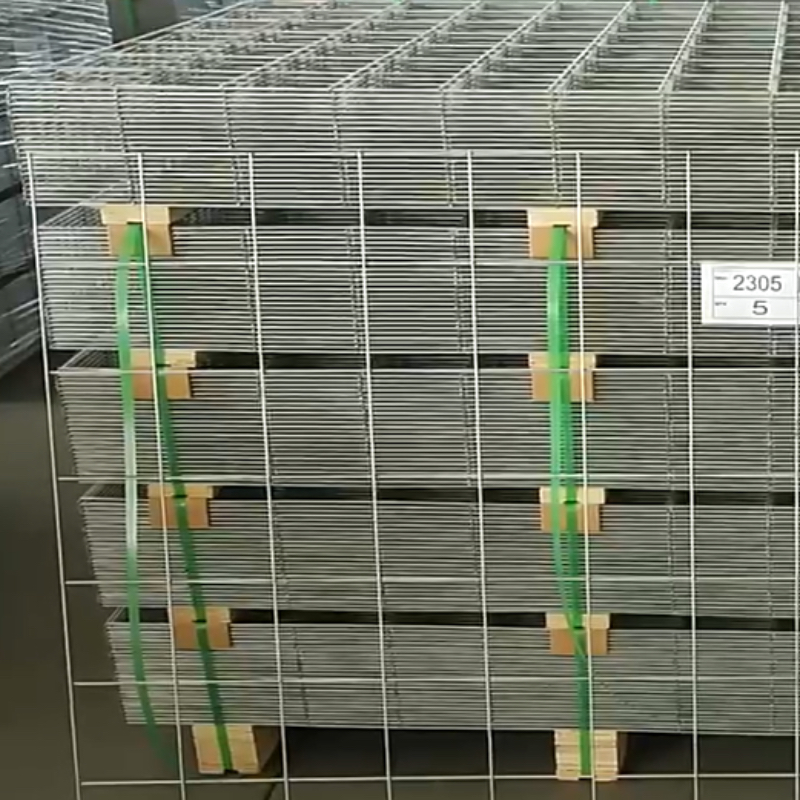

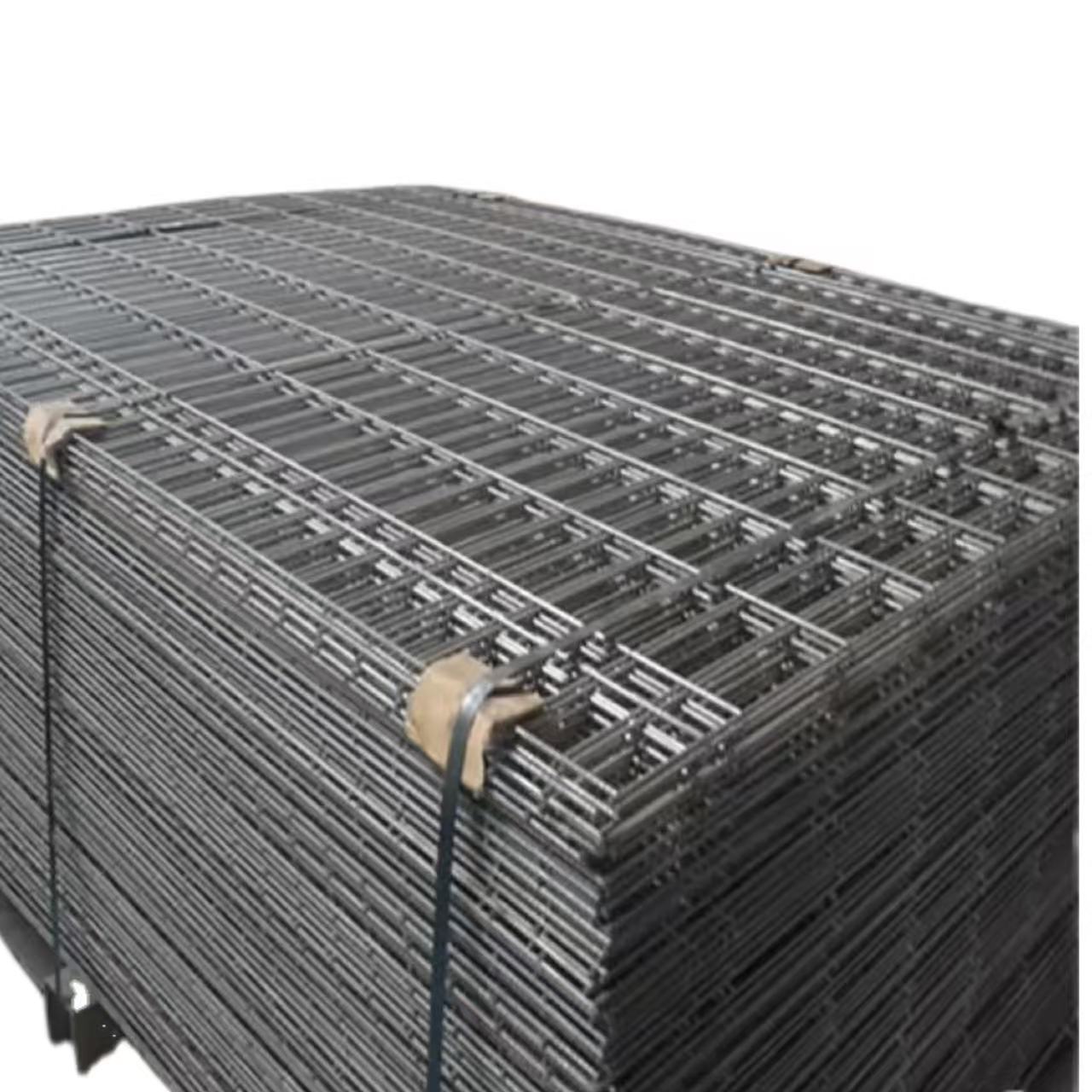

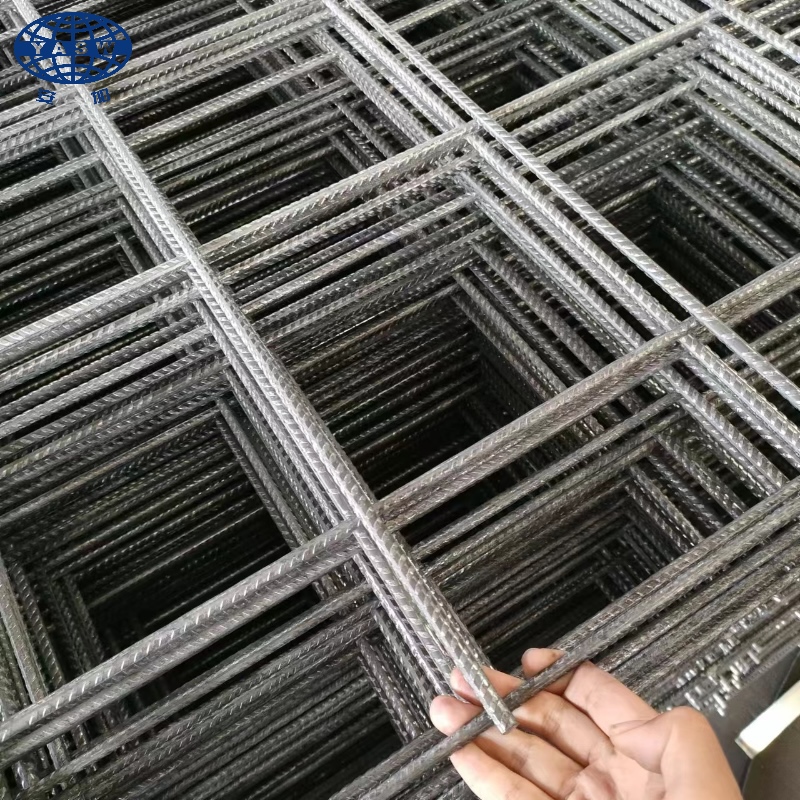

200x200mm Rib Concrete Steel Wire Mesh for Reinforcing

200x200mm Rib Concrete Steel Wire Mesh for Reinforcing

This steel bar mesh is specifically engineered for concrete reinforcement in high-rise building projects, designed to enhance the tensile strength, crack resistance, and structural stability of concrete components. It replaces traditional on-site steel bar binding, significantly reducing construction time and ensuring uniform force distribution—critical for high-rise structures subject to wind loads, seismic forces, and long-term structural stress. Specification Item Parameter Range High-Rise Construction Adaptation Mesh Sheet Size Length: 2m-12m; Width: 1m-3.6m (customizable) Longer sheets reduce joint gaps, ideal for large-span high-rise floors and external walls Steel Bar Diameter 5mm-12mm (main bars); 4mm-8mm (cross bars) 5-10mm commonly used for shear walls; 8-12mm for beam and column reinforcement Mesh Spacing Square: 100x100mm, 150x150mm, 200x200mm; Rectangular: 100x200mm 100x100mm/150x150mm for high-stress areas (e.g., core tubes, load-bearing walls) Material Low…
