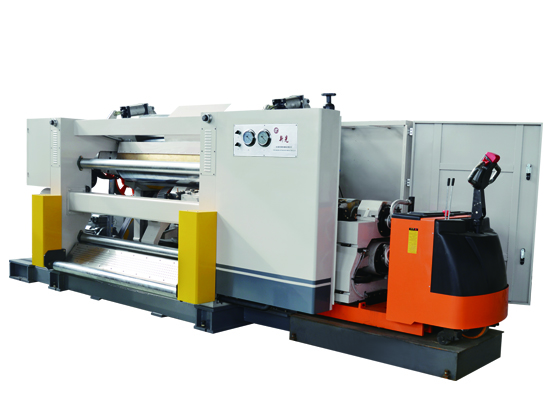

Single Facer Machine SF-320E/360E

Single Facer Machine SF-320E/360E

Structural features: design speed:150m/min. effective width:1800mm. main corrugated roller:¢320mm(According flute differ),pressure roller¢370mm,preheat roller¢400mm. using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating. quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,the entire group of corrugating with motor drive,put into the machie,fixed to the machine base,only need a buttons can complete the replacement quickly and easily. corrugated roll adopt 48CrMo high quality alloy steel,dealing with heating, after grinding tungsten carbide surface treatment. corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buf…
