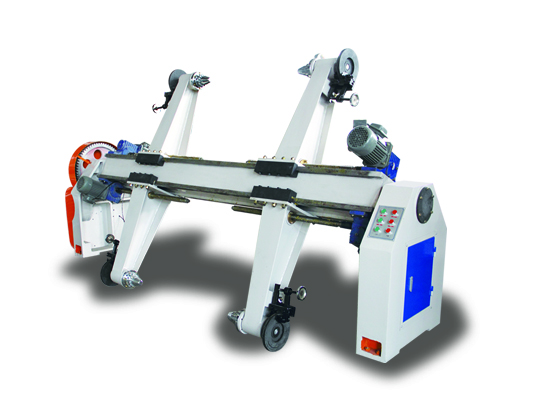

Paper Holder Machine ZJ-F

Paper Holder Machine ZJ-F

Structural features: Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc. each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 6000mm. manual dics brake,add screw following. electric elements centralized control the electric elements,toothed chuck. technical parameters: 1、the range of paper jams:maximum:1800mm    minimum:600mm 2、the diameter of paper jams:maximum:¢1600mm    minimum:¢400mm 3、Unilateral maximum load:maximum2000Kg 4、Powered motor parameters: ①Paper jams motor550W×4set  380V    50HZ short(S2)working standard ②lift motor 1.5KW      380V    50HZ …
