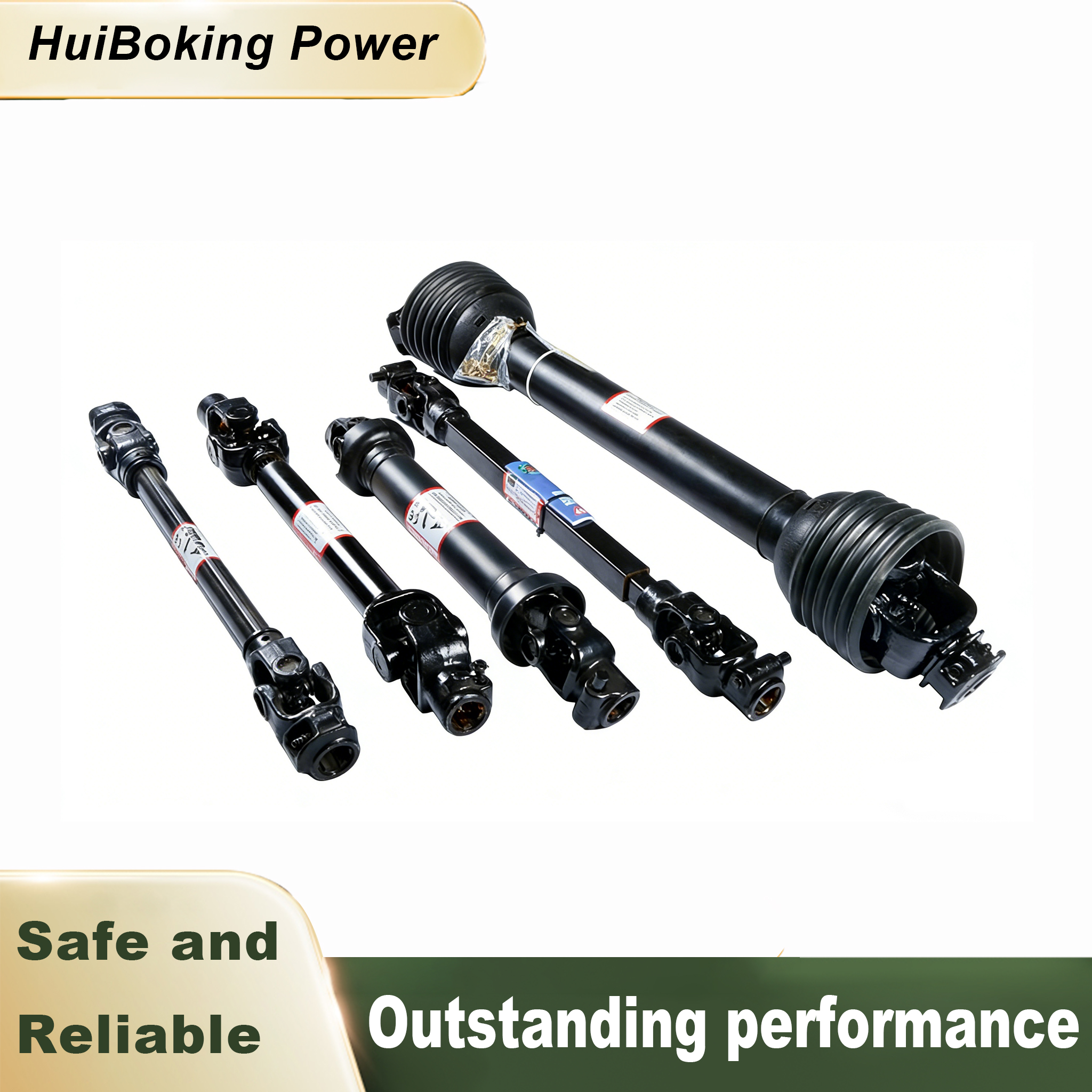

High Quality Cardan Shafts for Agricultural Applications

  A typical Cardan shaft assembly consists of several key elements working in harmony:   Universal Joints (Cardan Joints): These are the heart of the shaft. A standard universal joint, or cross joint, consists of two Y-shaped yokes connected by a central cross-shaped component called a cross or spider . This configuration allows the shaft to flex and transmit power at varying angles. The cross typically runs on needle roller bearings to reduce friction and handle high loads . Tubular Shaft: The main body is often a hollow tube, which provides high strength and torque capacity while minimizing weight . In some applications, it may be a solid shaft. Length Compensation (Telescopic Section): Many Cardan shafts include a sliding mechanism, often with a splined or profiled shaft (male) sliding inside a mating tube (female) . This allows the overall length of the shaft to change as the distance between the driving and driven components varies during operation (e.g., when a vehicle's suspens…
