OTS(R) Efficient Single-stage DoubleSuction Centrifugal Pump

Website:

OTS(R) Efficient Single-stage DoubleSuction Centrifugal Pump

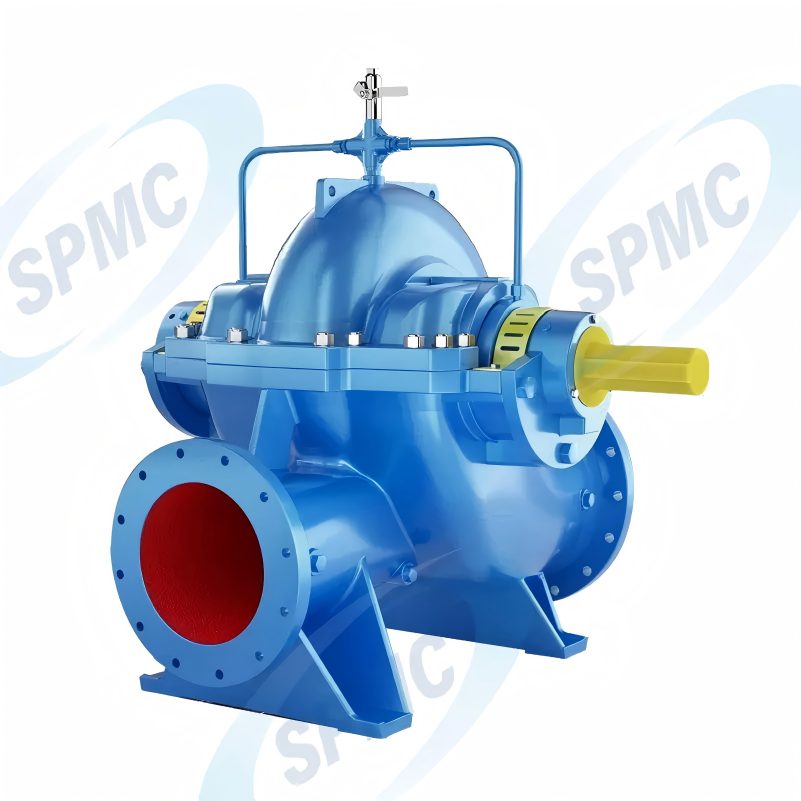

OTS(R) Efficient Single-stage Double Suction Centrifugal Pump   Product Overview The OTS(R) Efficient Single-stage Double Suction Centrifugal Pump is a high-performance, energy-saving centrifugal water pump with a horizontal split casing. Designed for large-flow and medium-head applications, it is a core model in our industrial water pump equipment lineup. This horizontal water pump features an optimized hydraulic model, high efficiency, and compact structure, delivering stable performance for clean water and similar non-corrosive media. It is widely used in municipal water supply, power plant circulating water, industrial water systems, and large-scale irrigation projects. Technical Specifications Flow range: 160–20000 m³/h Head range: 12–125 m Motor power: 30–2000 kW Inlet and outlet diameter: 150–1400 mm Installation form: Horizontal single-stage double suction, axial split Medium temperature: ≤ 80°C (≤ 105°C optional) Working pressure: ≤ 1.6 MPa Applicable medium: Clean water,…
