New energy Chinese-style transformer

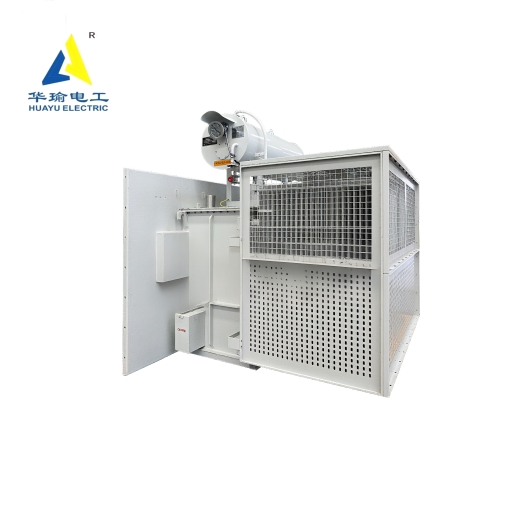

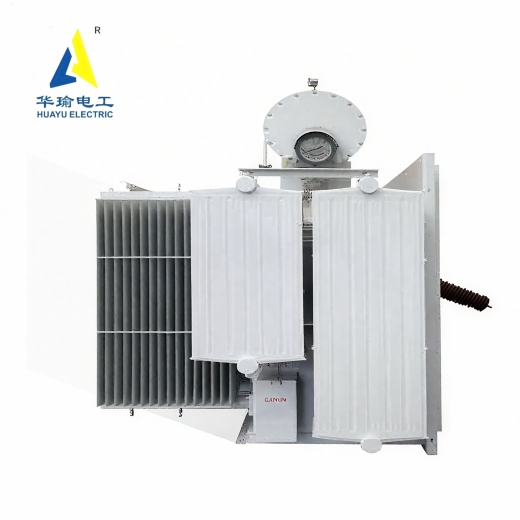

Analysis on the Structural Design and Key Components of New Energy-Specific Transformers It adopts a three-phase double-winding oil-immersed, self-cooling, non-excitation voltage regulation, and fully sealed structure, which effectively improves the stability and protection performance of the equipment. The overall layout is compact, with a sturdy metal casing, equipped with a fine metal protective net and ventilation holes, which not only ensures safety but also facilitates air circulation for auxiliary heat dissipation. The core components include the transformer body, oil tank, radiator, high and low voltage side insulating bushings, oil level gauge, pressure relief valve, temperature control meter, oil conservator (generally required for capacity ≥ 630kVA), gas relay, breather, etc. Components such as temperature control instruments on the top allow operation and maintenance personnel to monitor the equipment's operating status in real-time; the radiator has a large area and hig…
