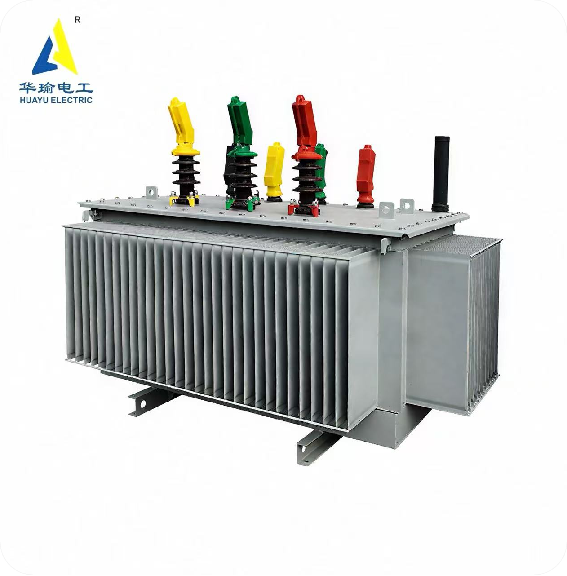

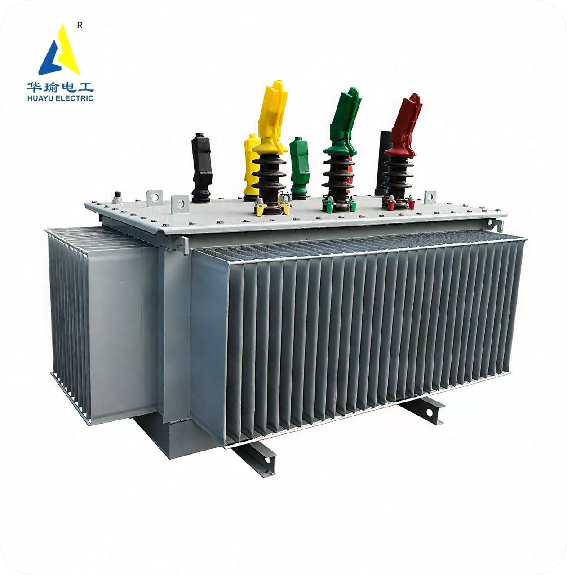

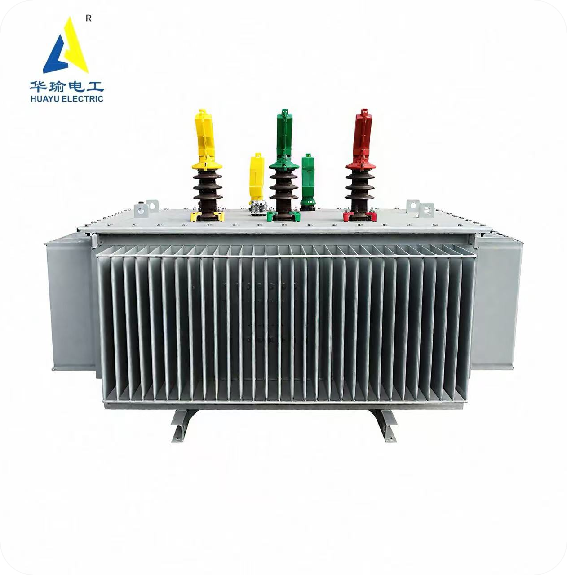

SH15-Type Amorphous Alloy Transformer

SH15-Type Amorphous Alloy Transformer

Product Type and Core Principle This product is of the oil-filled sealed type, and its working principle is consistent with that of sealed power transformers. The basic elements of the amorphous alloy it adopts include iron, nickel, cobalt, silicon, boron, carbon, etc. It is an isotropic soft magnetic material, featuring low magnetizing power and no structural defects that hinder domain wall movement—these properties help optimize the transformer's performance. Properties of Amorphous Alloy Material The thickness of the amorphous alloy is only 0.027mm, with a stacking factor of 0.75~0.8. Its resistivity is 3~6 times that of silicon steel sheets, and its hardness is 5 times that of silicon steel sheets; however, it is extremely sensitive to stress.Relying on these properties, the no-load loss of products in the SH15-M-30~2500/6~10 series is reduced by 70% based on the standard value specified in GB/T 6541, demonstrating significant energy-saving advantages. Executive Standard and App…
