Durable 10kV Epoxy Transformer SC10 SCB10 30-2500kVA

Durable 10kV Epoxy Transformer SC10 SCB10 30-2500kVA

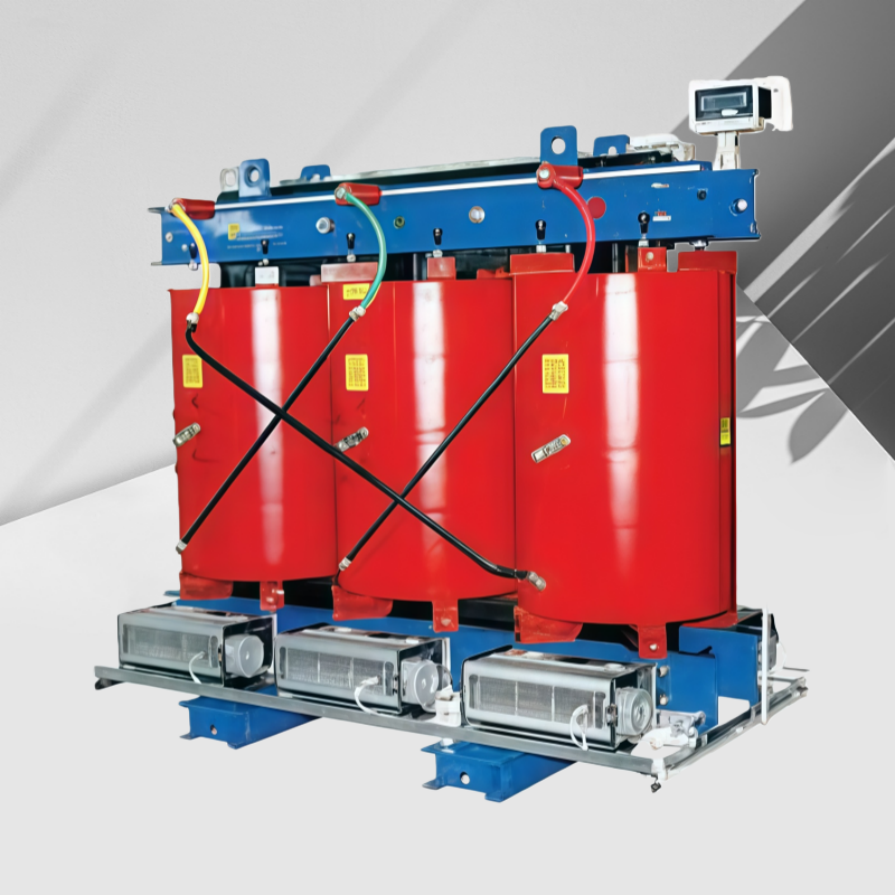

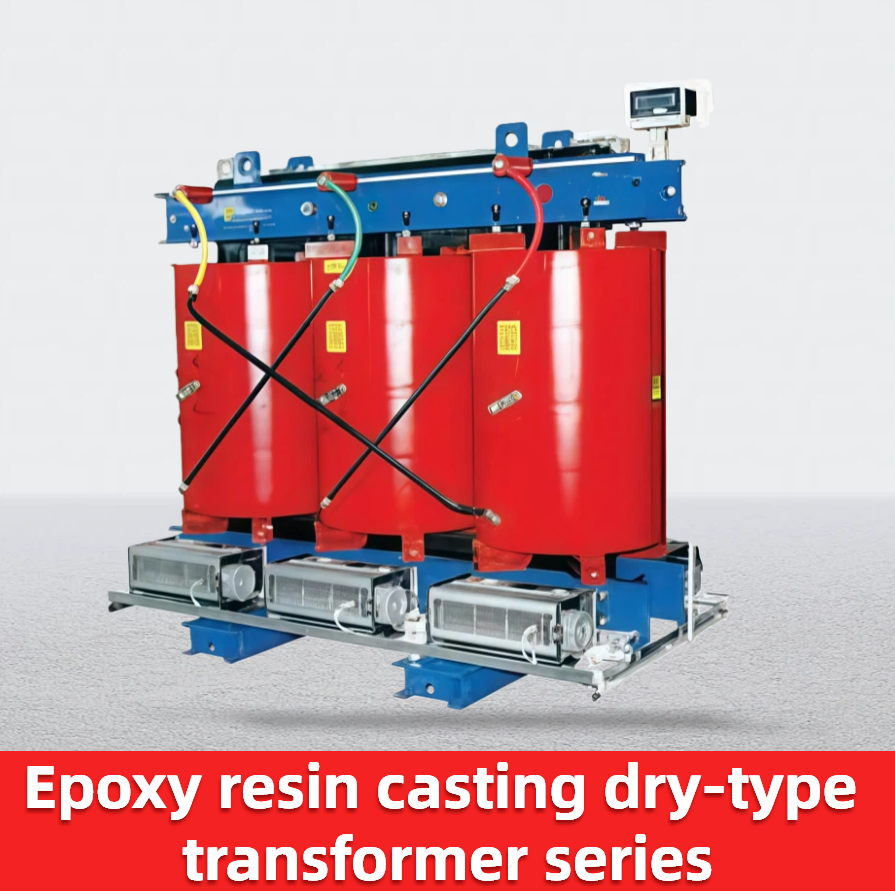

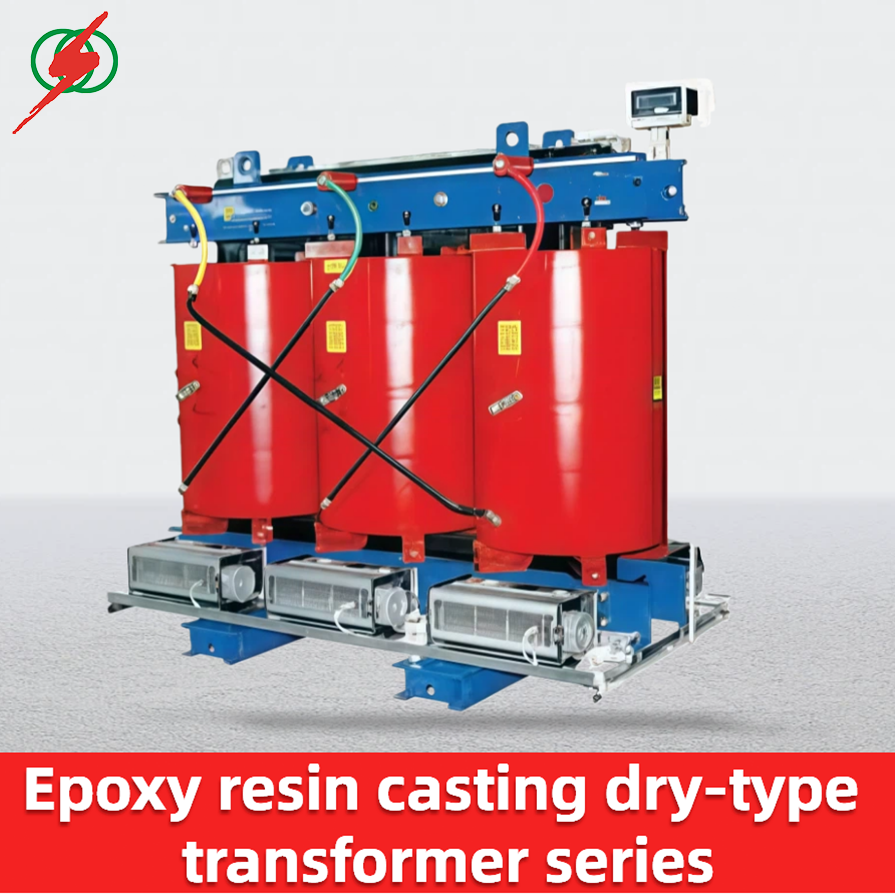

This SC10/SCB10 series epoxy cast dry-type transformer is specifically designed for 10kV power distribution systems, with a capacity range of 30 to 2500kVA. It is suitable for various scenarios such as industrial enterprises, commercial buildings, and urban power grids. It adopts a three-phase epoxy resin casting process, featuring high overall mechanical strength, moisture resistance, and anti-fouling properties. It can operate stably in harsh environments such as high altitudes and dusty conditions. The low-voltage foil-type coil design optimizes current distribution, reduces losses, and is compatible with 10 (10.5, 11, 6, 6.3, 6.6) kV multi-level high-voltage input. It can flexibly match different grid requirements. The equipment supports the Yyn0/Dyn11 connection group, with an insulation level of LI75AC35/AC3 and precise short-circuit impedance control. It also has overload capacity and short-circuit tolerance. From small-scale power distribution needs of 30kVA to large-scale pow…
