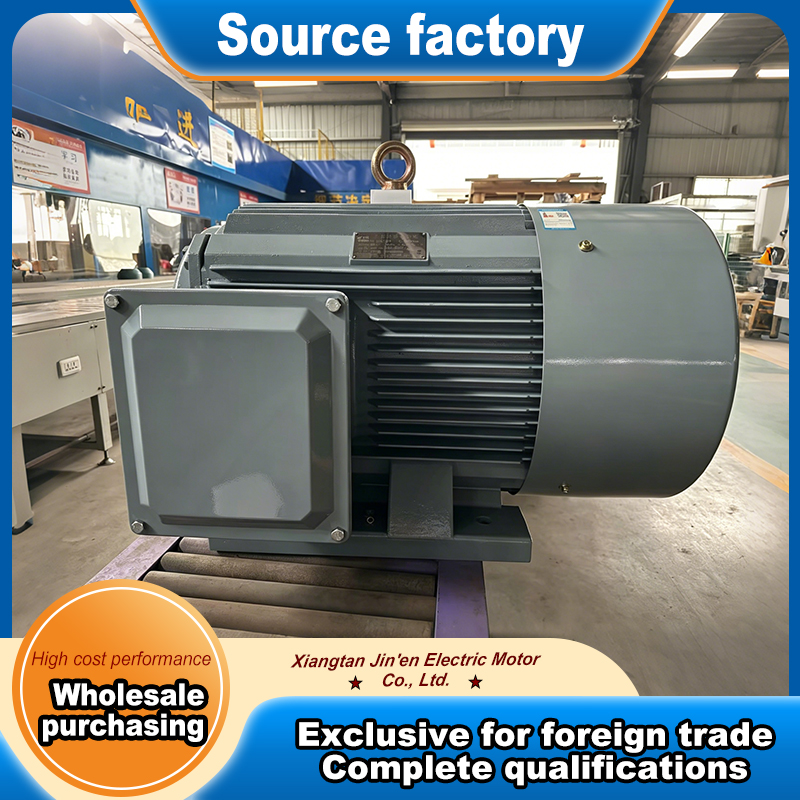

YE3 cast iron housing 380V motor

YE3 cast iron housing 380V motor

Our YE3 cast iron housing 380V motor falls into LV Induction Motors, robust Industrial Motors, full-series High Power Induction Motors and premium Efficient Motors, meeting IE3 energy efficiency criteria of IEC 60034-30 and GB18613-2020 Class 3 energy standard. This squirrel cage motor boasts comprehensive specifications: frame sizes 80–355, power span 0.55kW to 315kW, with 2/4/6/8/10 pole choices to satisfy varied speed requirements of industrial facilities. Built with thick cast iron housing, these TEFC Industrial Motors feature Class F insulation and IP55 dust & water resistance, matched with IC411 self-fan cooling system to sustain S1 continuous operation. It runs steadily under 380V 50Hz rated voltage, within 1000m altitude and -15℃~40℃ working temperature. Every LV Induction Motor adopts full pure copper winding, bringing low noise, minimal vibration and solid structural durability thanks to the rigid cast iron shell, effectively reducing frequent equipment maintenance.…
