M12 12 Core Ultra High Density Socket

M12 12 Core Ultra High Density Socket

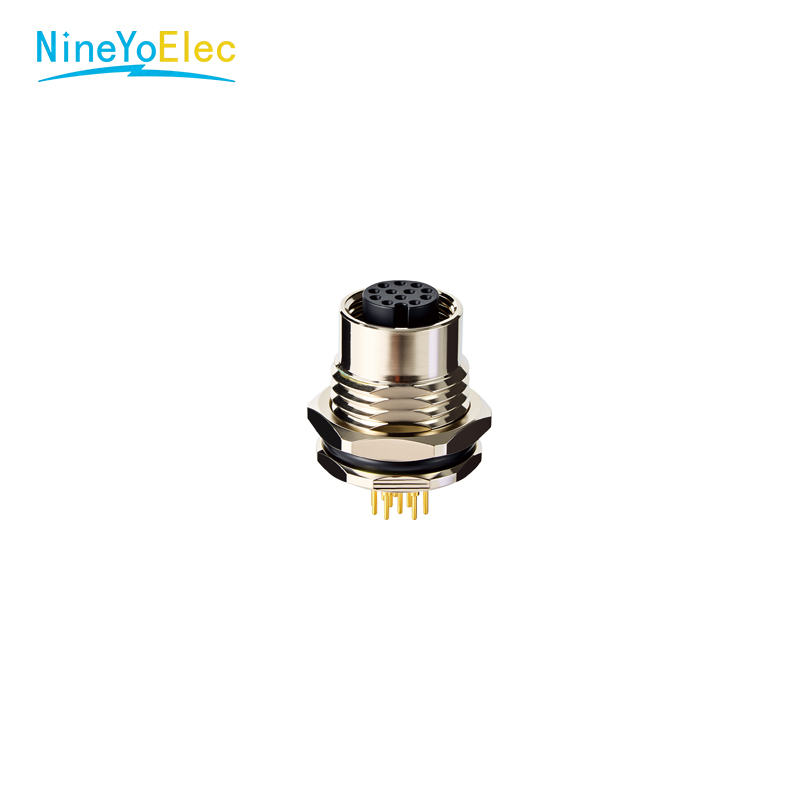

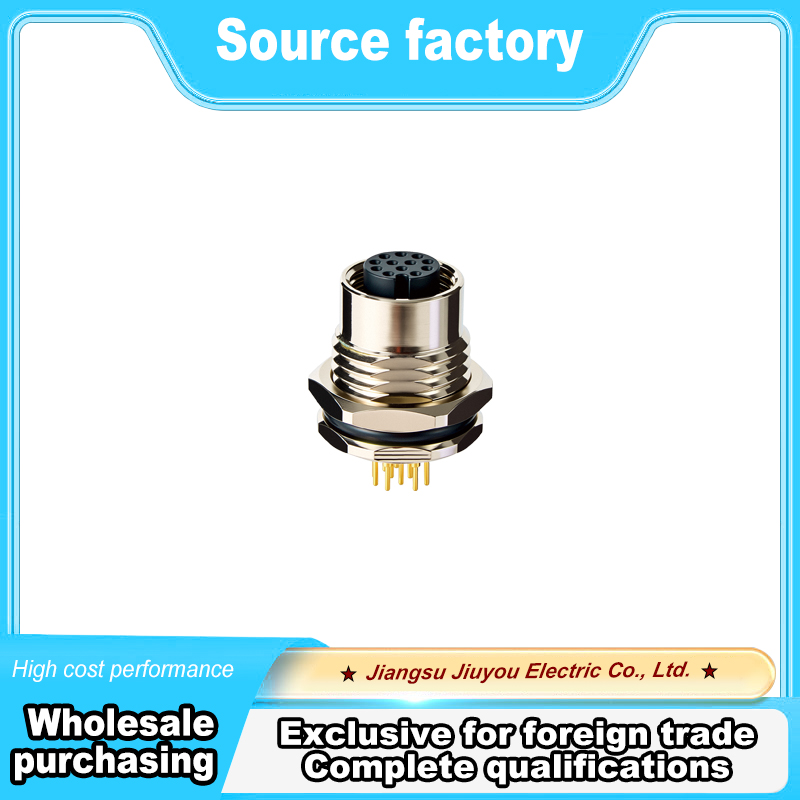

M12 A Coding 12 Core Ultra High Density Connector This M12 A coding 12 core connector belongs to our M12 Circular Connector series. It is built for test equipment and multi sensor systems where many signals must pass through a single small interface. The twelve pin layout packs more conductors into the standard M12 shell size than most people think possible. This high density design allows you to connect twelve separate signals using just one cable and one panel opening. For test equipment manufacturers this means simpler enclosures with fewer holes to drill and seal. For multi sensor arrays this means one cable runs from the junction box to the controller instead of multiple cables. The A coding ensures proper mating orientation even with so many pins packed closely together. You cannot force a wrong connection because the keying feature prevents mismating. The compact M12 size is remarkable given the twelve pin count. Many engineers assume they need a larger connector like M16 or M2…
