M12 5 Core High Power Servo Plug

M12 5 Core High Power Servo Plug

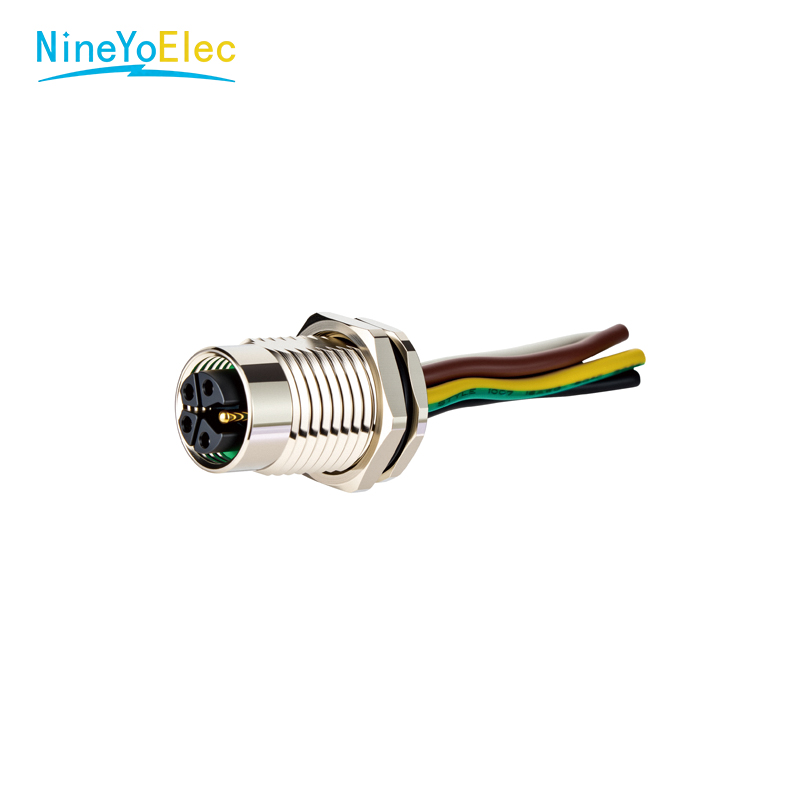

M12 K Coding 5 Core High Power Servo Connector for Heavy Machinery This M12 K coding 5 core connector belongs to our M12 Circular Connector series. It is specifically designed for high power servo motors in heavy machinery applications. The five pin K coding configuration handles significantly higher current than standard A coded M12 connectors. Two larger pins carry the motor power phases. Two smaller pins carry the brake or encoder signals. One pin serves as protective earth ground. This pinout matches the typical servo motor connection scheme used in industrial drives. The K coding ensures that you cannot accidentally plug a high power servo cable into a low power sensor port. This prevents damage to both the connector and the equipment. For heavy machinery manufacturers this M12 connector provides a compact power interface where space is limited. The M12 size is remarkable for 16 amp capability. Most connectors with this current rating are much larger. The K coding uses specially…
