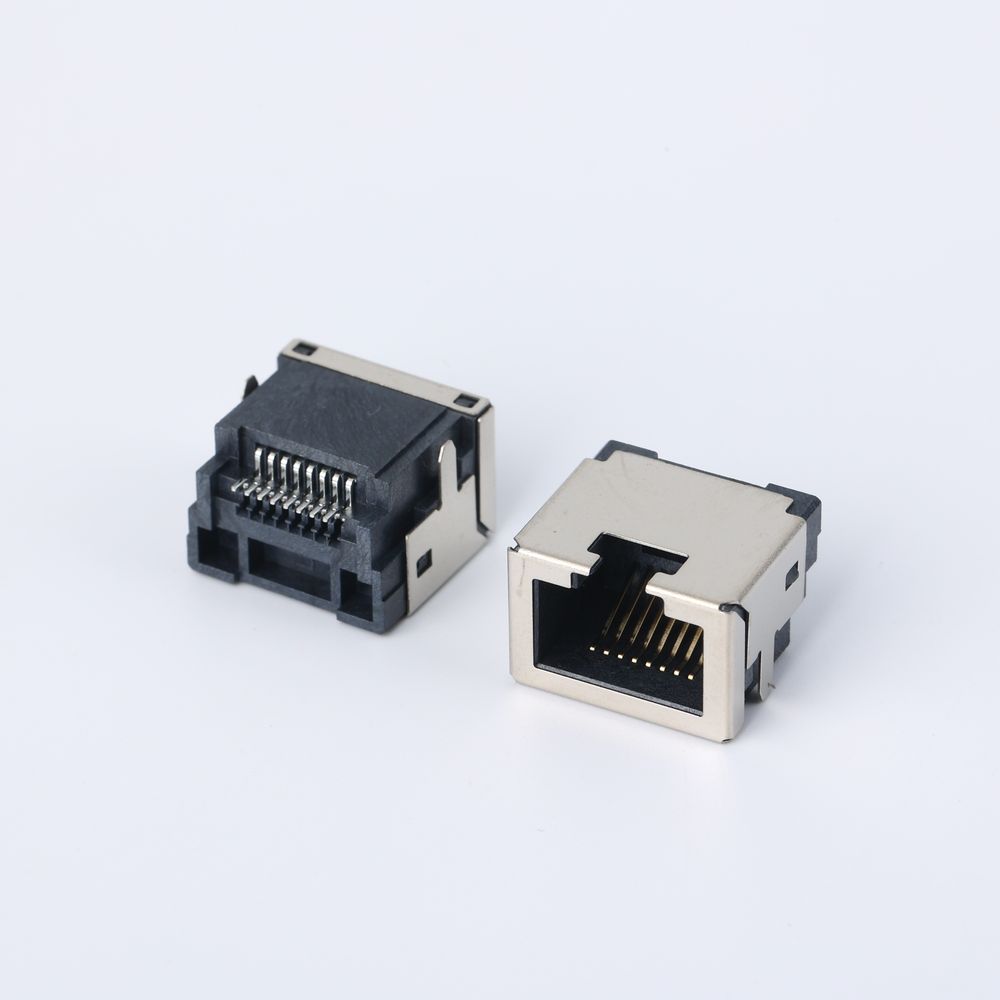

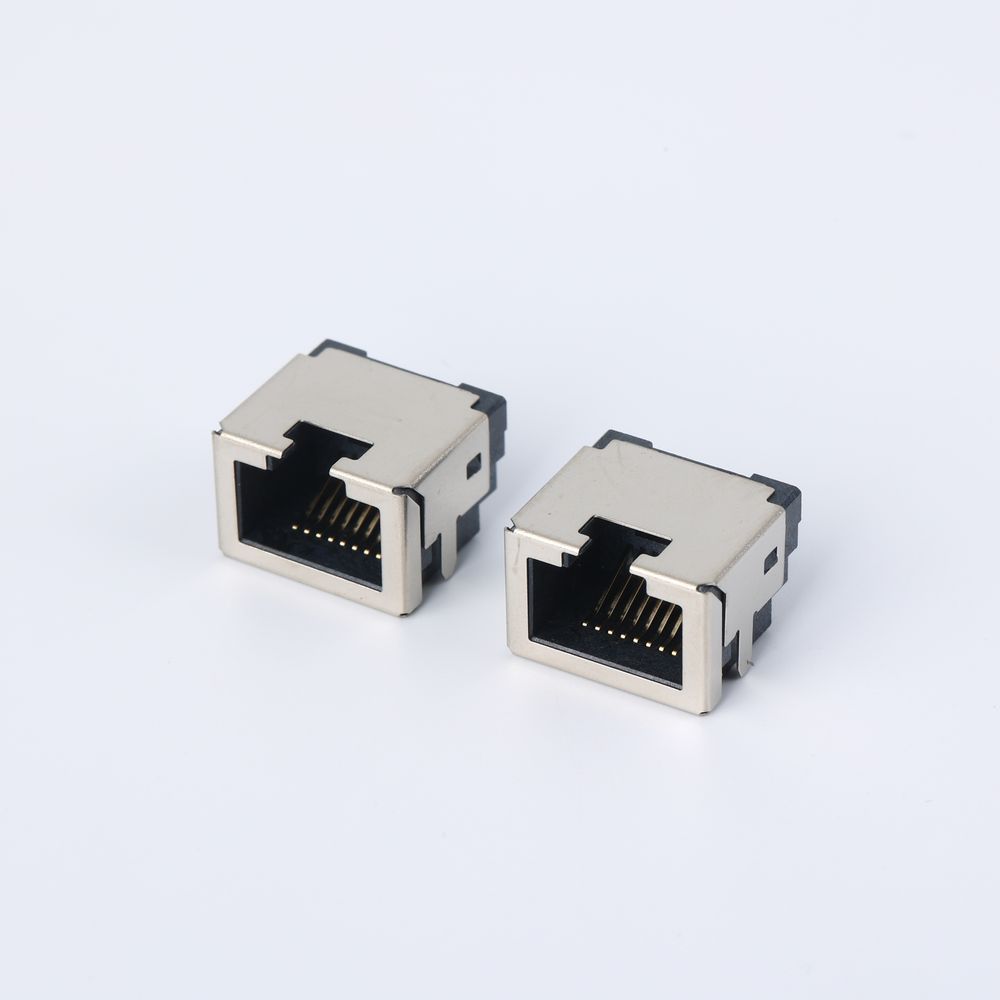

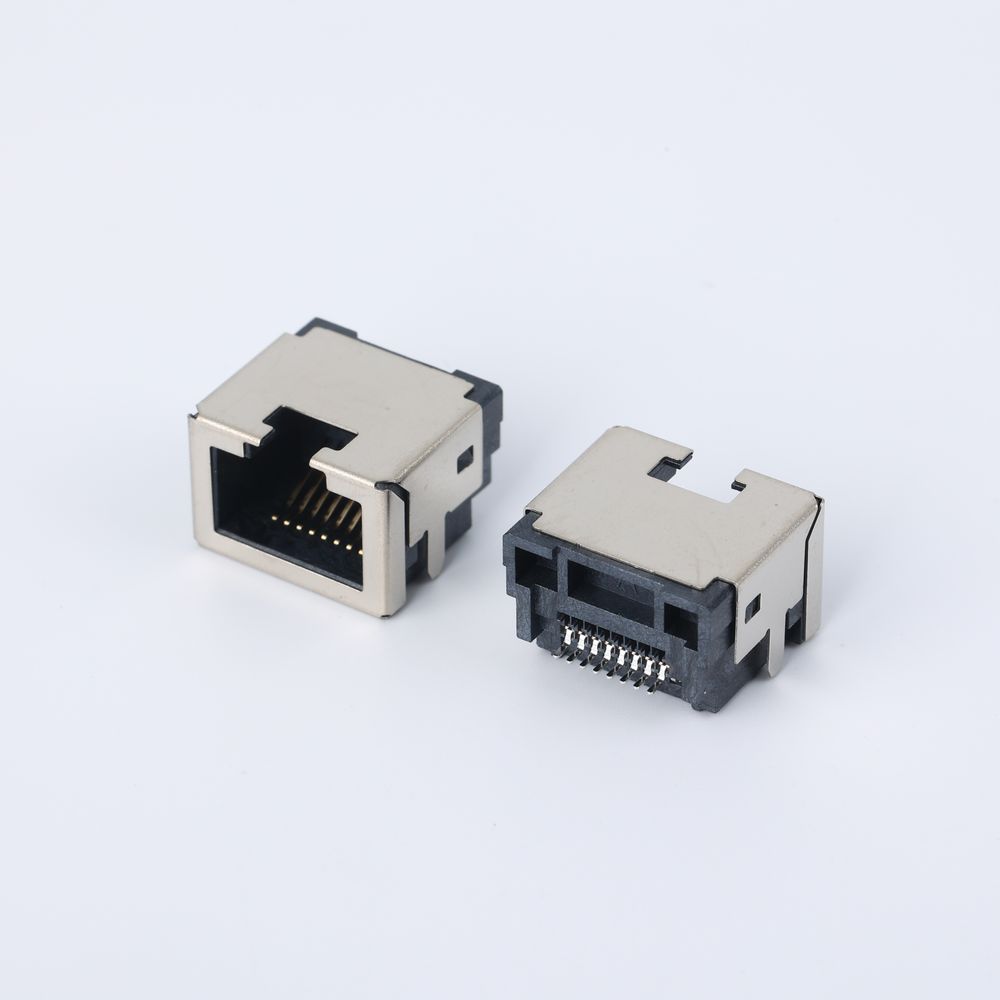

RJ45 connector 8P8C SMT without LED

RJ45 connector 8P8C SMT without LED

The rj 45 8P8C surface-mount SMT LED-less and spring-less connector is the "value king" for high-density and low-cost network design. It is particularly suitable for fixed deployment scenarios with limited space, cost sensitivity, and no frequent plugging and unplugging requirements. Material description HOUSING: LCP UL94V-0, BLACK CONTACT:  PHOSPHOR BROZEN, GOLD PLATING ON CONTACT AREA, MATTE TIN AT TAIL 80U'' MIN, NICKEL 30U'' MIN OVER ALL SHELL: SUS201, NICKEL 30U'' MIN PLATING OVER ALL ELECTRICAL: CURUENT RATING: 1.5AMP VOLTAGE RATING: 125VAC RMS CONTACT RESISTANCE: 40mΩ MAX INSULATION RESISTANCE: 500mΩ MIN AT 500VDC DIELECTRIC STRENGTH: 1000VAC 50HZ OR 60HZ 1 MINUTE OPERATING LIFE: 750 CYCLES MIN STORAGE TEMPERATURE: -40℃~+85℃, HUMIDITY <80% GUARANTEE PERIOD: 12 MONTHS OPERATING TEMPERATURE: -40℃~+85℃ RJ45 connector 8P8C SMT without LED   The SMT surface-mount design is directly attached and soldered onto the PCB board, achieving high integr…
