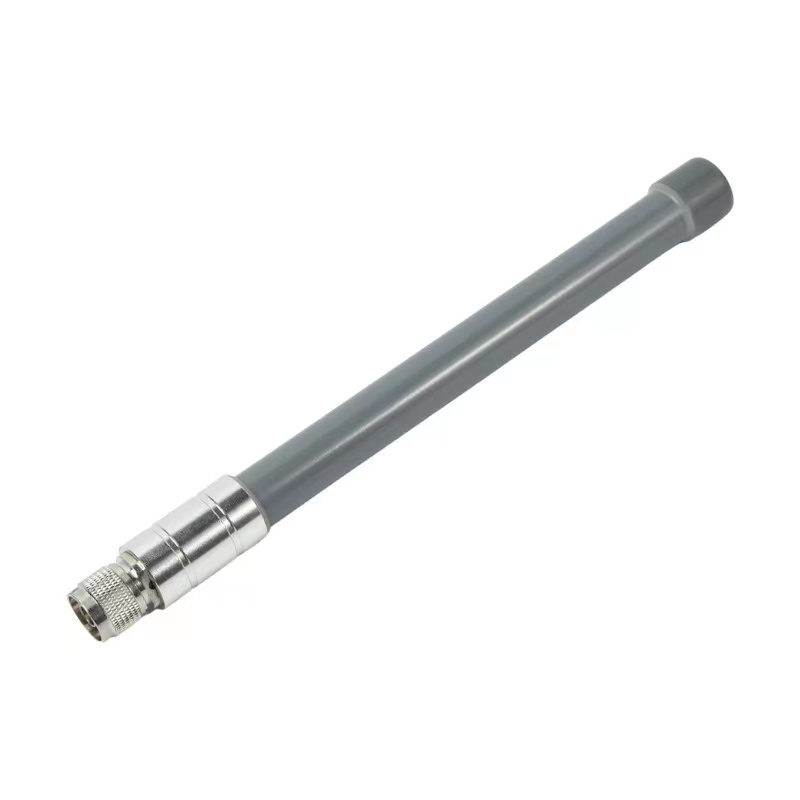

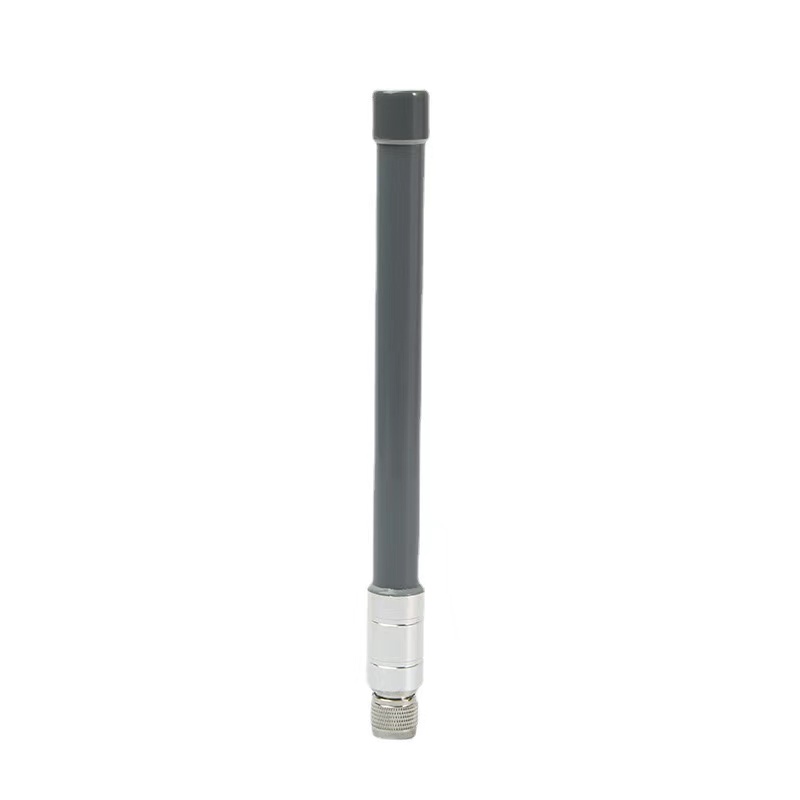

868 915mhz Omni Fiberglass Antenna

868 915mhz Omni Fiberglass Antenna

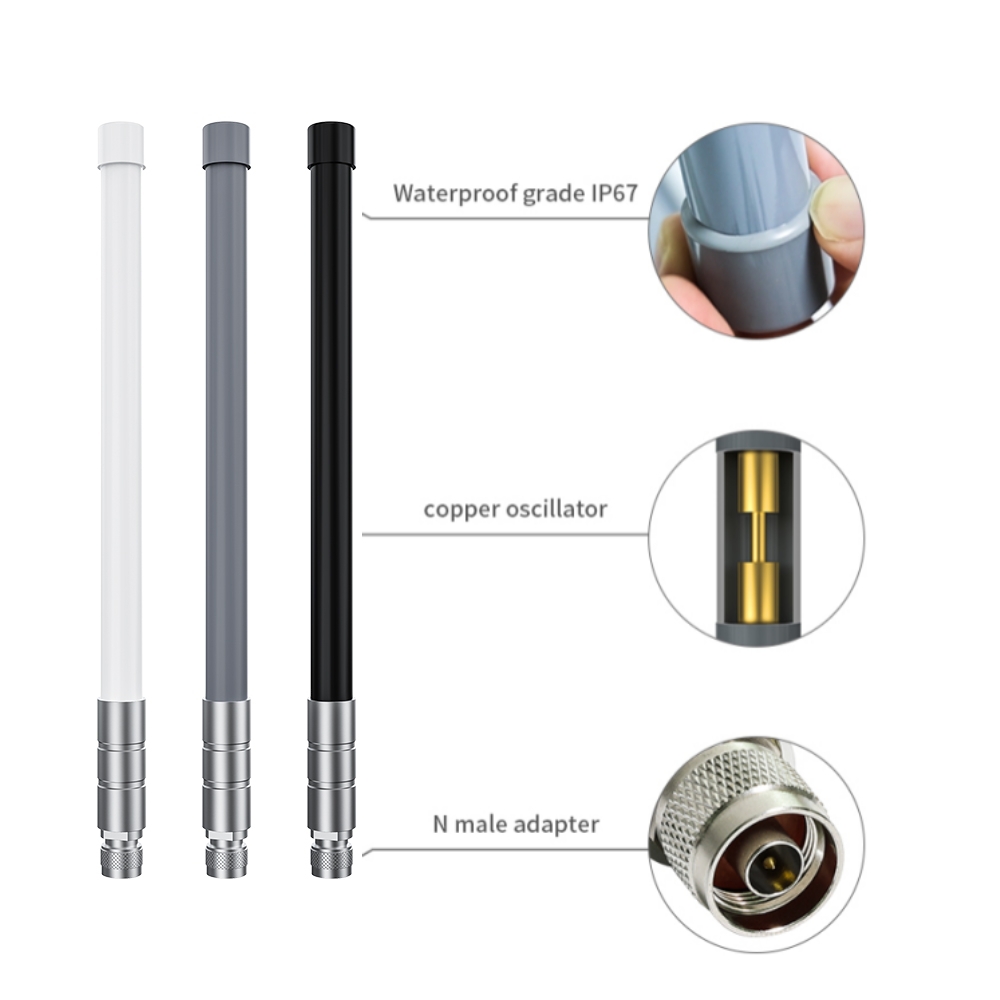

Fiberglass antenna is made of fiberglass reinforced plastic (FRP) as the main material, which has the characteristics of light weight, high strength, corrosion resistance and strong wind resistance. ‌ With light weight and high dimensional stability (zero shrinkage rate), the wind load can reach 72 km/h ( 45 m/s), the working temperature range is usually from -45℃ to 50℃, and some models support from -45℃ to 8℃; its corrosion resistance comes from the additive and resin layer on the surface of the material, and its service life exceeds 15 years in coastal or humid environment.   Product Basic Parameters Product Name:868 915mhz Omni Fiberglass Antenna Frequency Range: 868 - 915 MHz Gain: 8DB (Customizable) VSWR: < 2 Impedance: 50 Ω Radiation Direction: Omnidirectional Interface Type: N male/N female Operating Temperature: -40 ℃ ~ + 80 ℃ Storage Temperature: -40 ℃ ~ + 85 ℃ Environmental Protection Standard: Compliant with ROHS standard   Product display image Product application fie…
