1.5g Omnidirectional Fiberglass Antenna

1.5g Omnidirectional Fiberglass Antenna

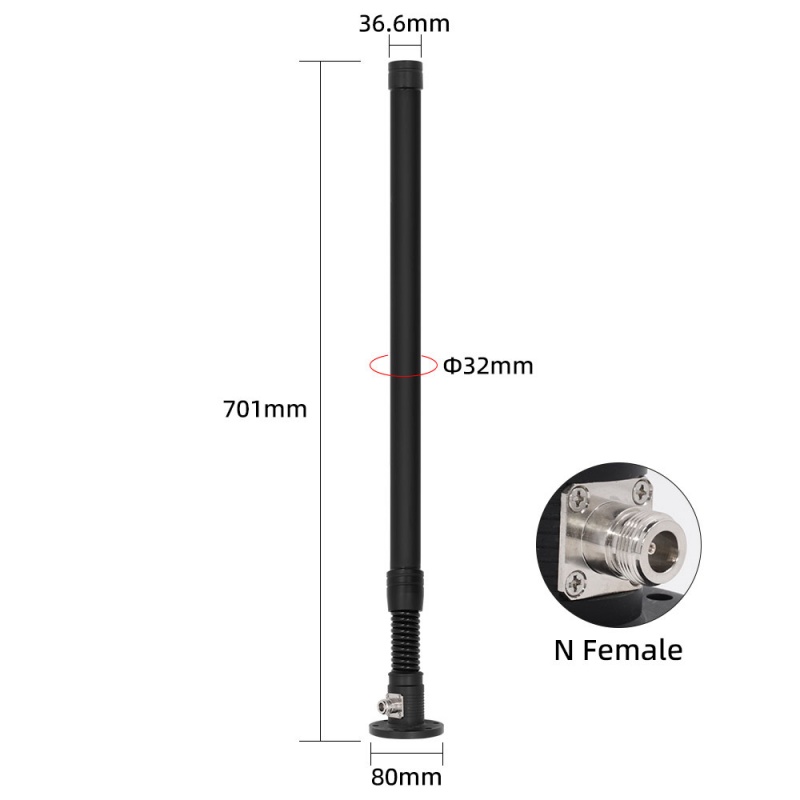

Product Introduction The 1.5G shockproof gooseneck antenna is an omnidirectional antenna specifically designed for the 1.5GHz frequency band. It features a gooseneck structure for shock resistance, and its flange base allows for secure mounting on flat or cylindrical surfaces. This antenna operates in the 1550-1620MHz/1400-1600MHz frequency range, with a common gain of 7dBi (customizable). Interface types include N-type female or SMA male (customizable). The gooseneck section is made of fiberglass for enhanced shock resistance and durability, and the flange base provides stable support and easy installation.   Product Specifications Operating Frequency:1550-1620MHz/1400-1600MHz Gain: 7dBi (customizable) Vswr: Less than 1.5 Output Impedance: 50Ω Antenna Type: Omnidirectional Connector Type: N-type female connector (SMA, TNC, etc. also available upon request) Waterproof Rating: IP67 (fully sealed design, dustproof and waterproof) Material: ABS Maximum Input Power: 5w Temperature Range:…
