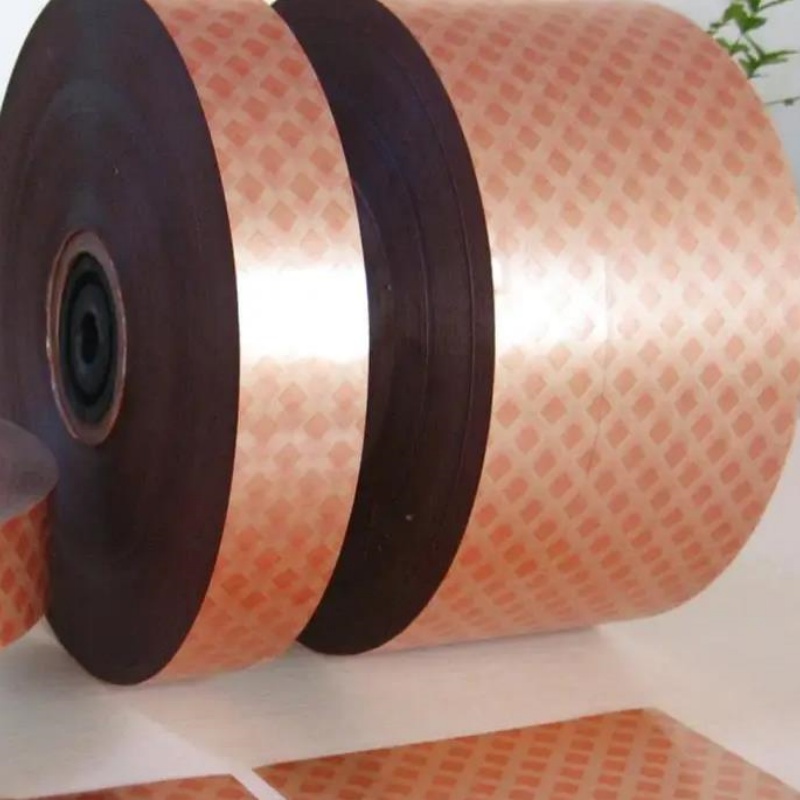

Insulating DDP for Transformers

Insulating DDP for Transformers

Features and Applications   The product is widely used for interlayer insulation and turn-to-turn insulation in oil-immersed power transformers. During the coil drying process, the coating layer melts at a certain temperature to achieve adhesion, and then cures as the temperature further rises. This reliably bonds adjacent layers of the winding into a fixed unit.   The high adhesive strength of epoxy resin prevents displacement of the winding layers during short circuits, thereby ensuring long-term electrical and mechanical performance of the insulation structure.   As the epoxy coating on diamond-dotted paper is applied in discrete dots, it allows full oil penetration and effective gas release from the insulation material. This effectively avoids corona and partial discharge, thus guaranteeing the safety and reliability of the insulation system.   It can also be used as a shielding isolation layer for cables, as well as an anti-corona material for high-voltage motors and electrical ap…
