B10H0710N40DYZ 2-Stage Doherty MMIC for RF Applications

Website:

B10H0710N40DYZ 2-Stage Doherty MMIC for RF Applications

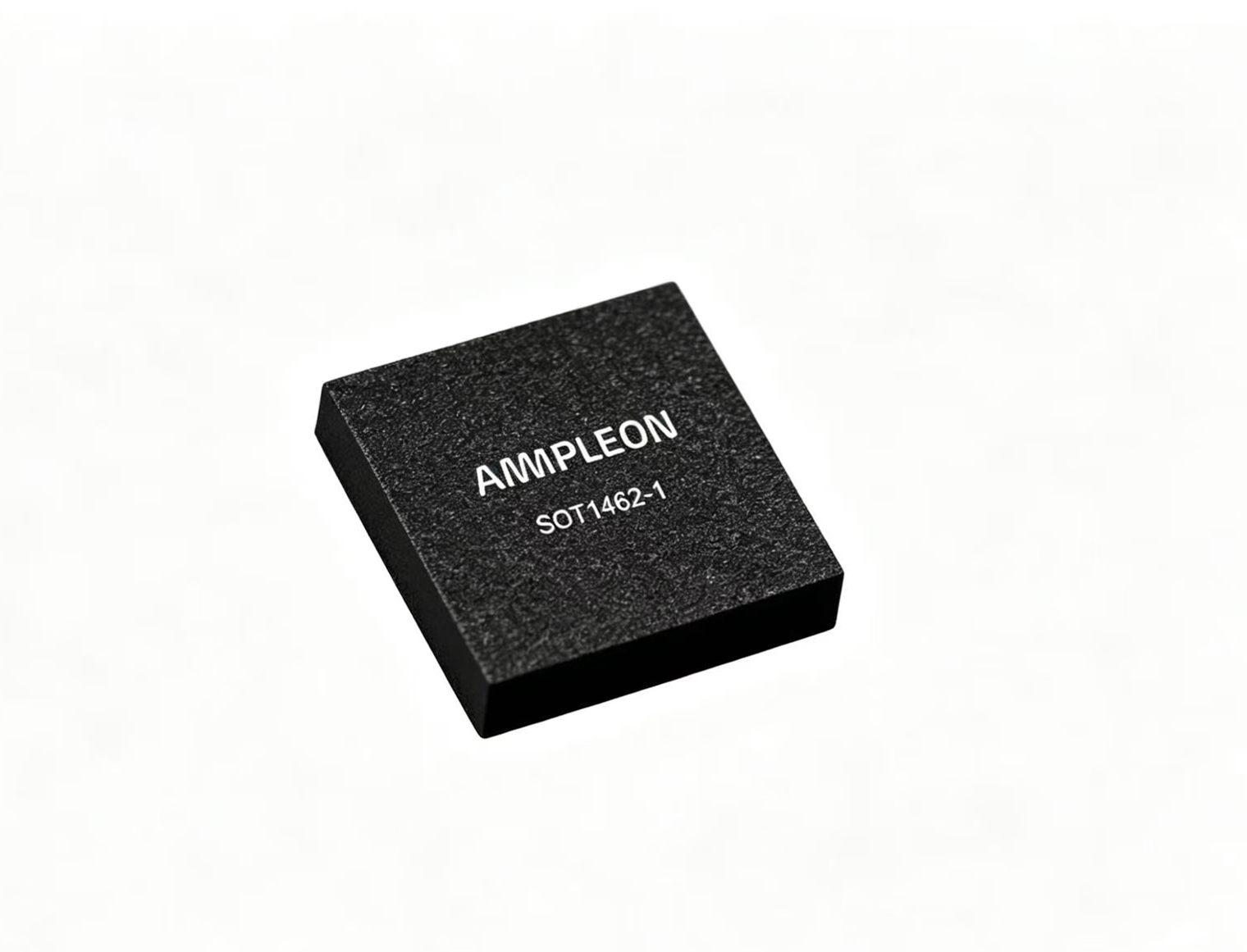

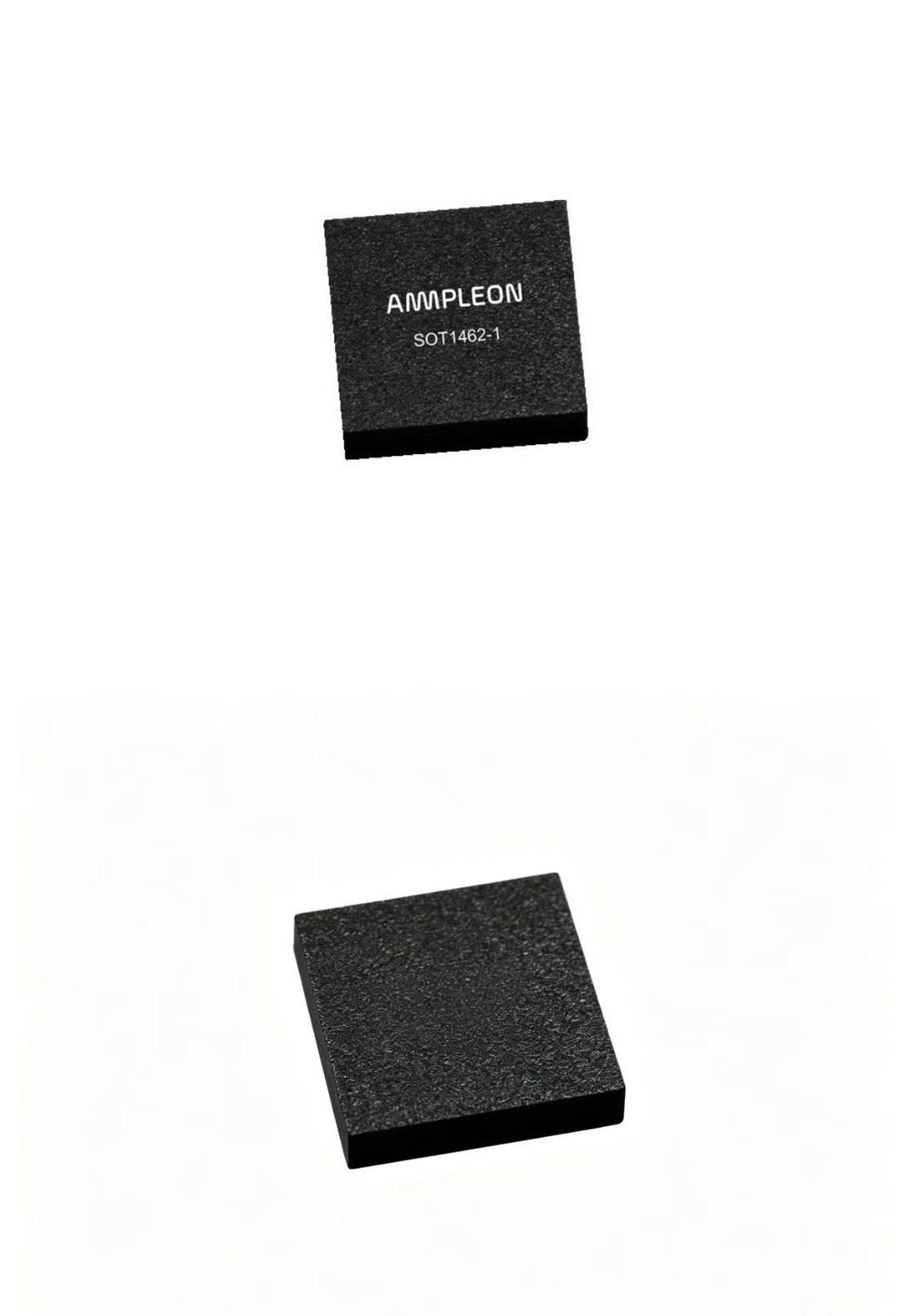

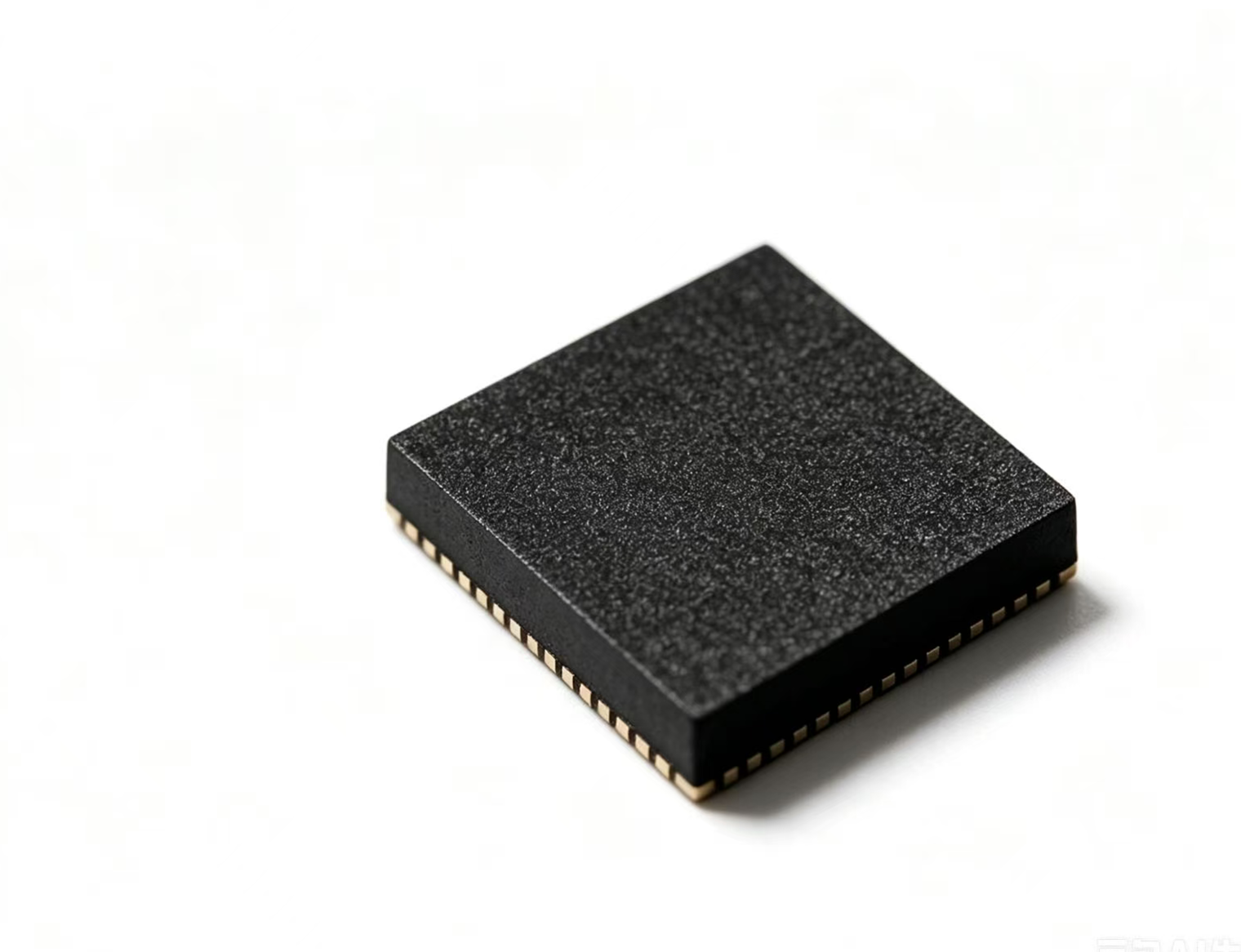

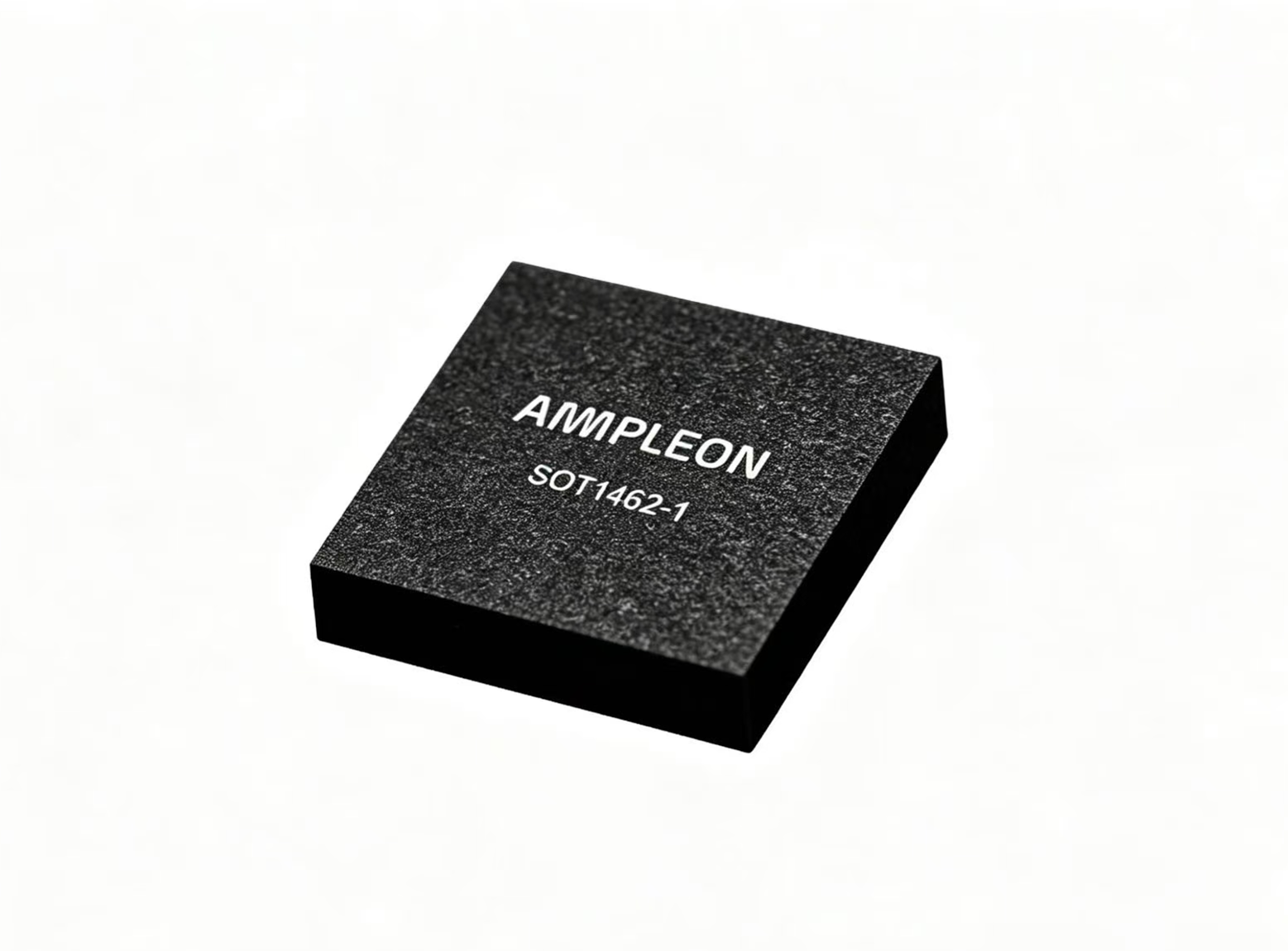

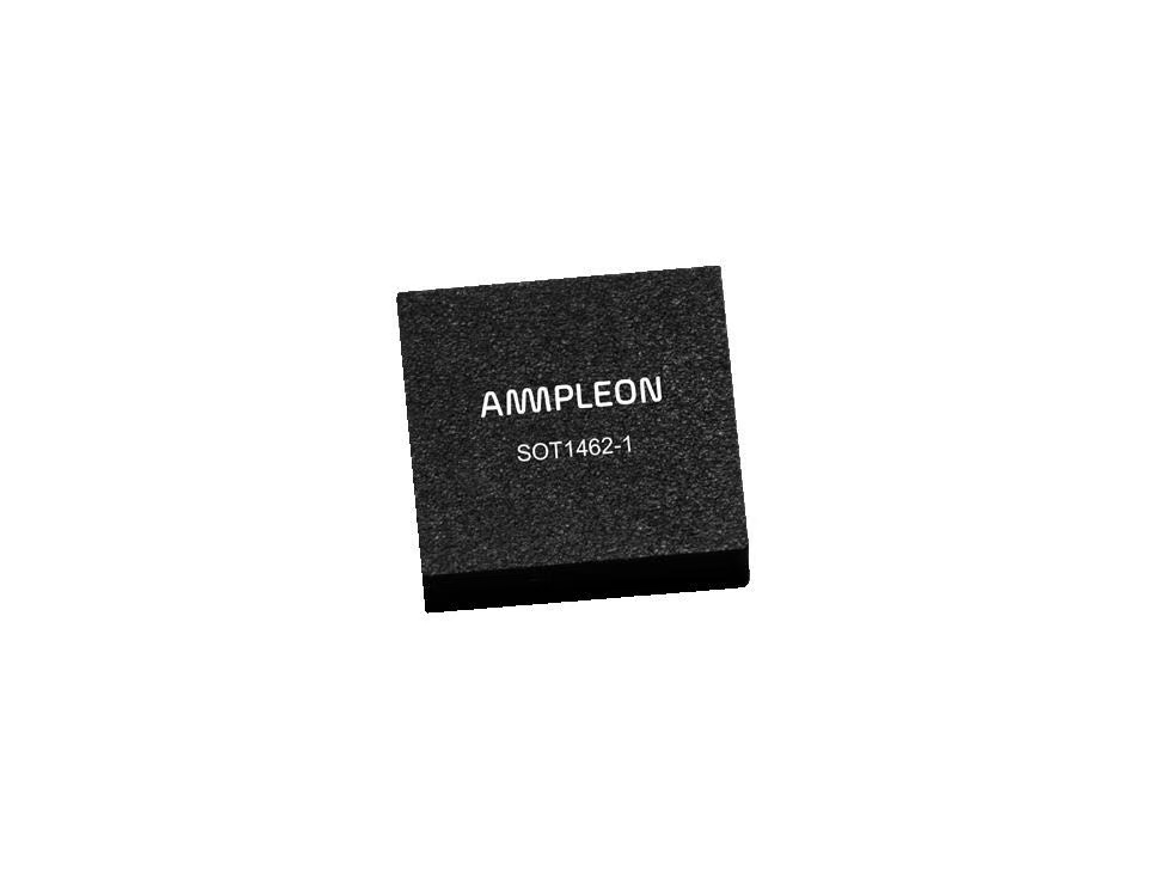

2-Stage Doherty MMIC Part Number: Ampleon B10H0710N40DYZ   Device Type: Dual-Section 2-Stage Fully Integrated Doherty MMIC RF Driver Amplifier, based on 50V LDMOS technology, with integrated input splitter, output combiner and pre-matching, designed for 4G/5G sub-1GHz base station driver stages   1. Basic Specifications   Manufacturer: Ampleon Technology: 10th Generation LDMOS Package: LGA-12x8-34-2 (Surface-mount LGA, 34-pin, 12×8mm, tape & reel package: YZ suffix) Frequency Range: 700 MHz – 1000 MHz (covers sub-1GHz 4G/5G bands: n5/n8/n20/n28, Band 8/20/28) Supply Voltage: VDS = 48 V (typical), VDSmax = 50 VAmpleon Output Power (P1dB): 40 W (per channel), 80 W total drive capability for dual channels Power Gain: 31 dB (typical) @845 MHz, 1-carrier LTE 20MHzAmpleon Drain Efficiency: 54% (typical) Impedance: 50Ω input/output, integrated splitter/combiner/pre-match, no external matching required Bias Control: Independent carrier/peaking bias control for Doherty optimization Quie…
