Precision MLCC for RF and Microwave Systems

Website:

Precision MLCC for RF and Microwave Systems

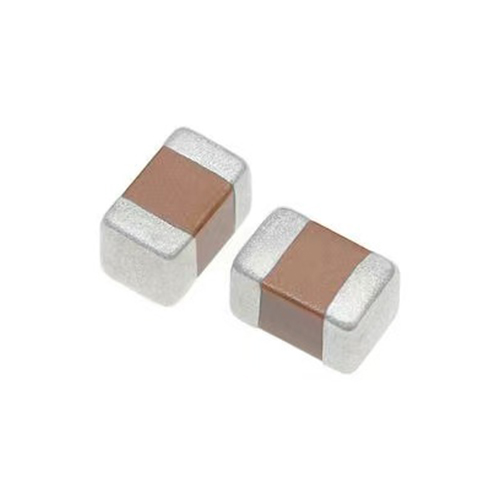

DLC70E RF And Microwave MLCCFeaturing high Q factor, low ESR/ESL and high reliability, this product withstands high RF current, voltage and power. It is widely applied for bypassing, coupling, tuning, impedance matching and DC blocking, ideal for RF power amplifiers, converters, antenna demodulation, plasma chambers and medical equipment.DLC70E Capacitance Table Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage 0.5 0R5 B, C, D. 3600V Code: 362 or 7200V Code: 722 4.7 4R7 B, C, D. 3600V Code: 362 or 7200V Code: 722 51 510 F, G, J. 3600V Code: 362 or 7200V Code: 722 560 561 F, G, J. 2500V Code: 252 0.6 0R6 5.1 5R1 F, G, J. 56 560 620 621 1000V Code: 102 0.7 0R7 5.6 5R6 62 620 680 681 0.8 0R8 6.2 6R2 68 680 750 751 0.9 0R9 6.8 6R8 75 750 820 821 1.0 1R0 7.5 7R5 82 820 910 911 500V Code: 501 1.1 1R1 8.2 8R2 91 910 1000 102 1.2 1R2 9.1 9R1…
