BLC10G18XS-602AVT RF MOSFET LDMOS

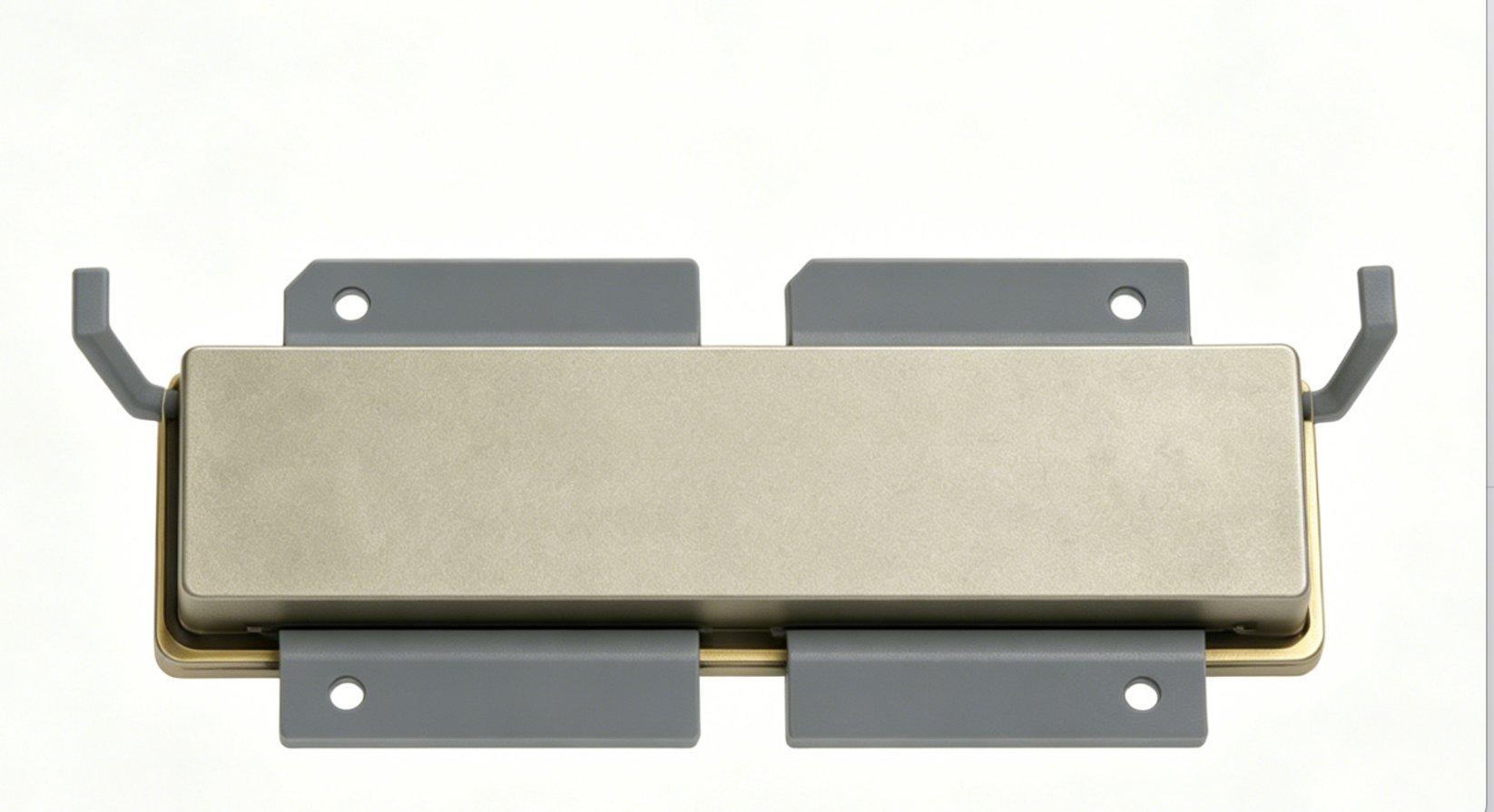

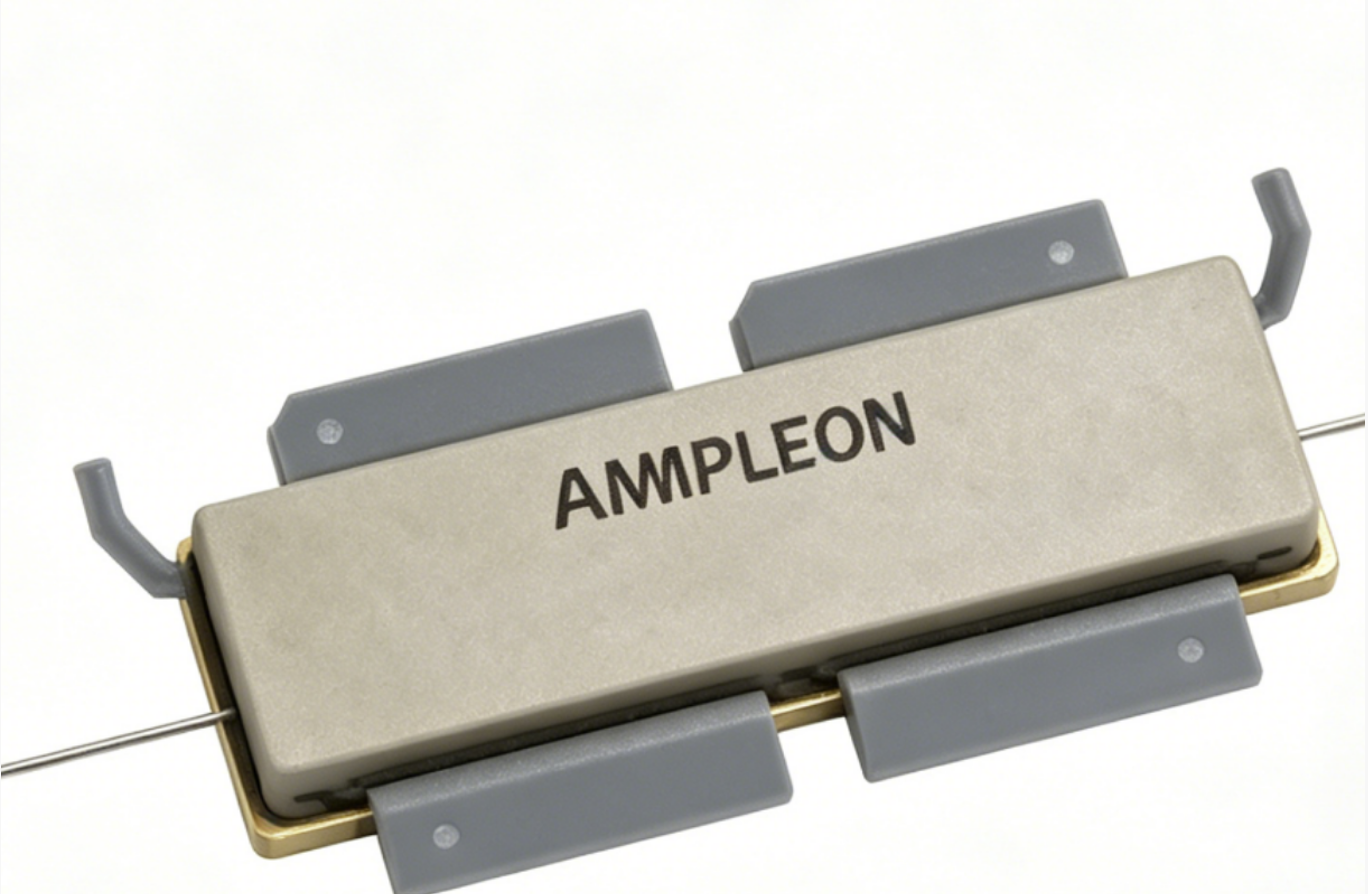

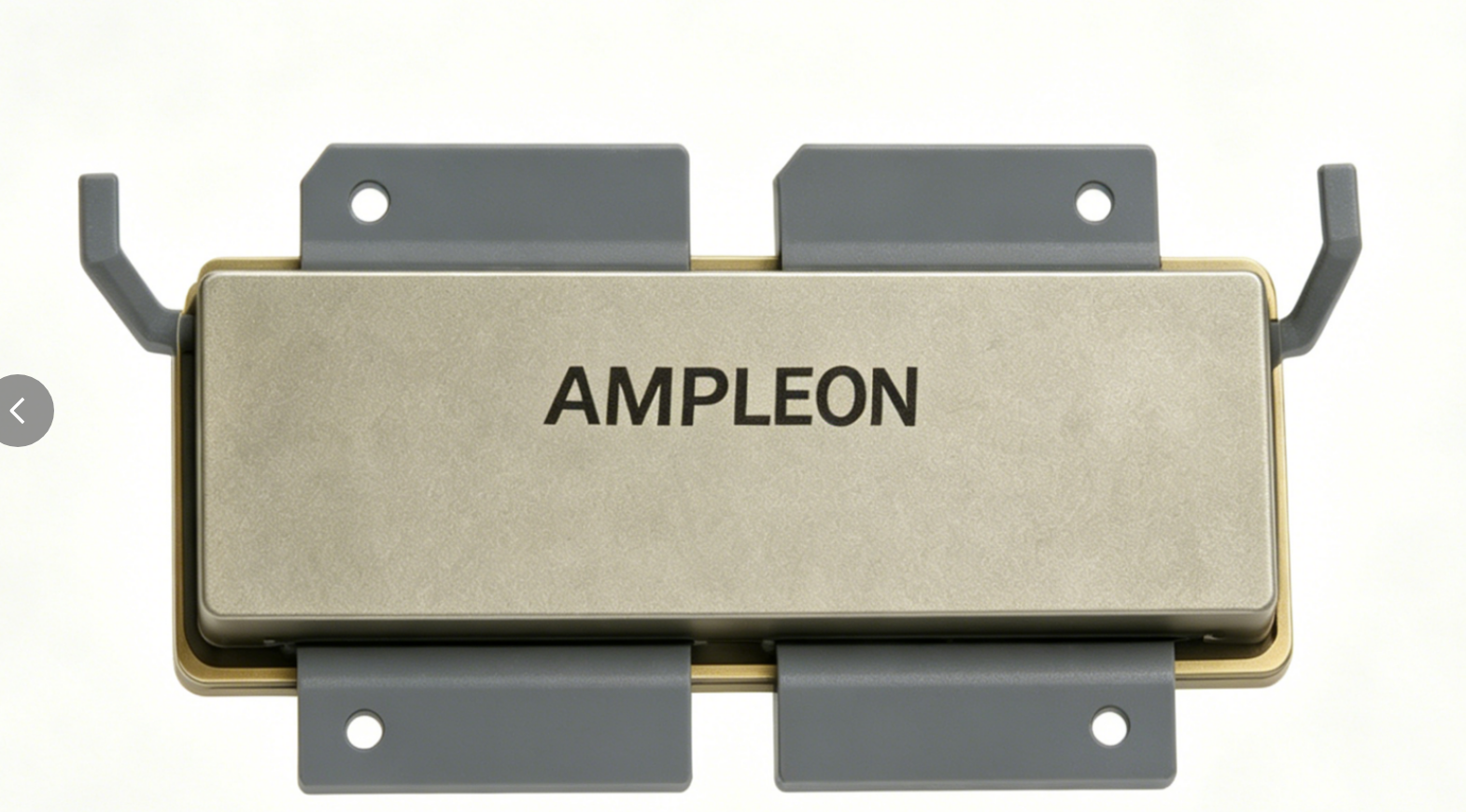

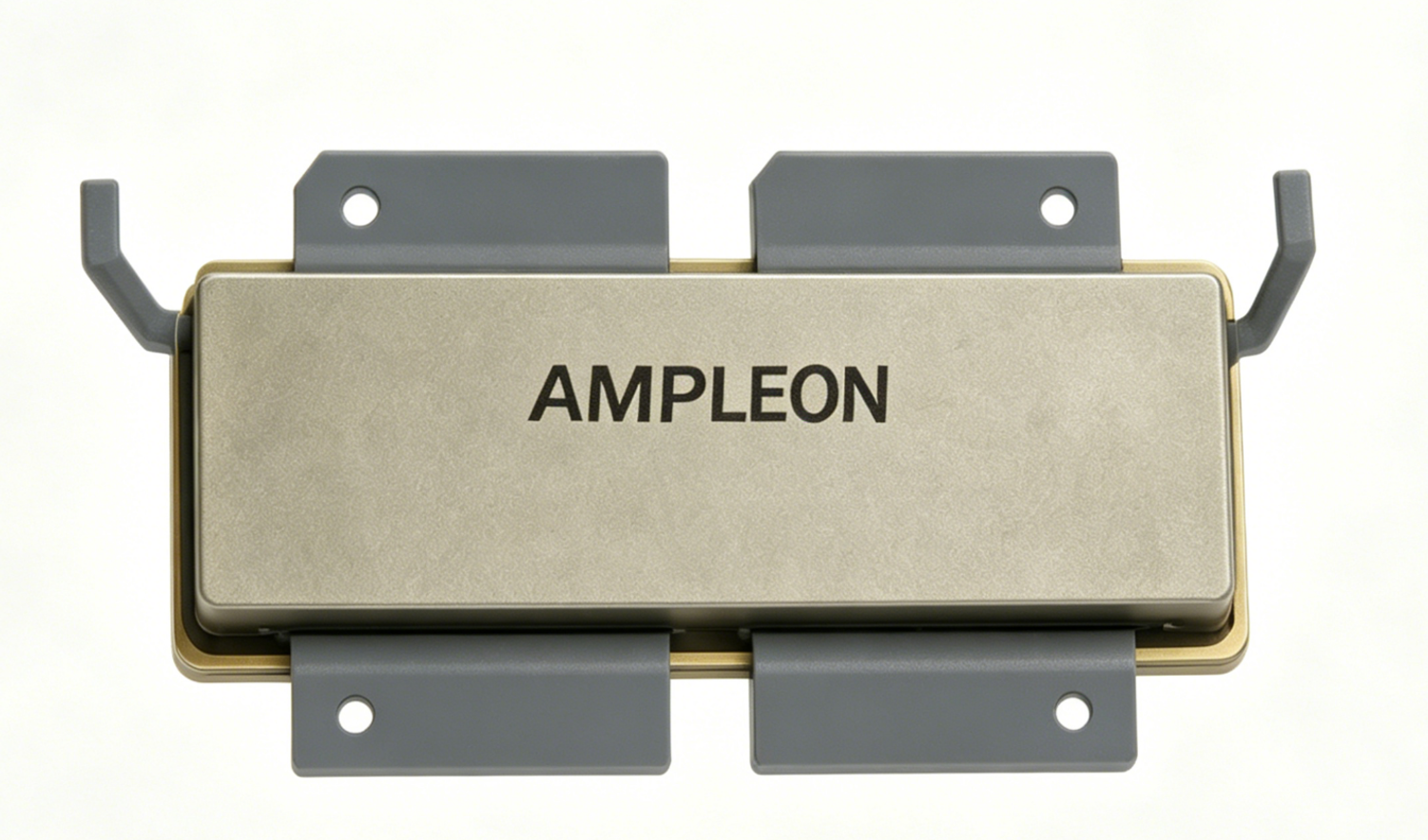

HF/VHF POWER LDMOS The BLC10G18XS-602AVT is a high-performance LDMOS RF power transistor manufactured by Ampleon, designed for macro base station applications in the 1805–1880 MHz frequency range (1.8 GHz band). It delivers high peak power, high gain, and high efficiency, optimized for 4G LTE and 5G NR wireless infrastructure systems. Key Specifications Manufacturer: Ampleon (Netherlands) Part Number: BLC10G18XS-602AVT Frequency Range: 1805 MHz to 1880 MHz Peak Output Power (PPEAK): 720 W (at 30 V) Drain Supply Voltage (VDS): 30 V Power Gain (Gp): 16 dB (typical) Drain Efficiency (ηD): 49% (typical) Package: SOT1258-4 (ACP3-1230-6), air-cavity ceramic package Technology: LDMOS (Silicon) Application: Macro base station final power amplifiers (PAs) Recommended Driver: B11G1822N60D Status: In production Features High Power Density: 720 W peak power at 30 V, enabling high-output macro PA designs. High Efficiency: 49% typical drain efficiency reduces power consumption and thermal…
