100mm Waveguide Section with Gas Inlet

100mm Waveguide Section with Gas Inlet

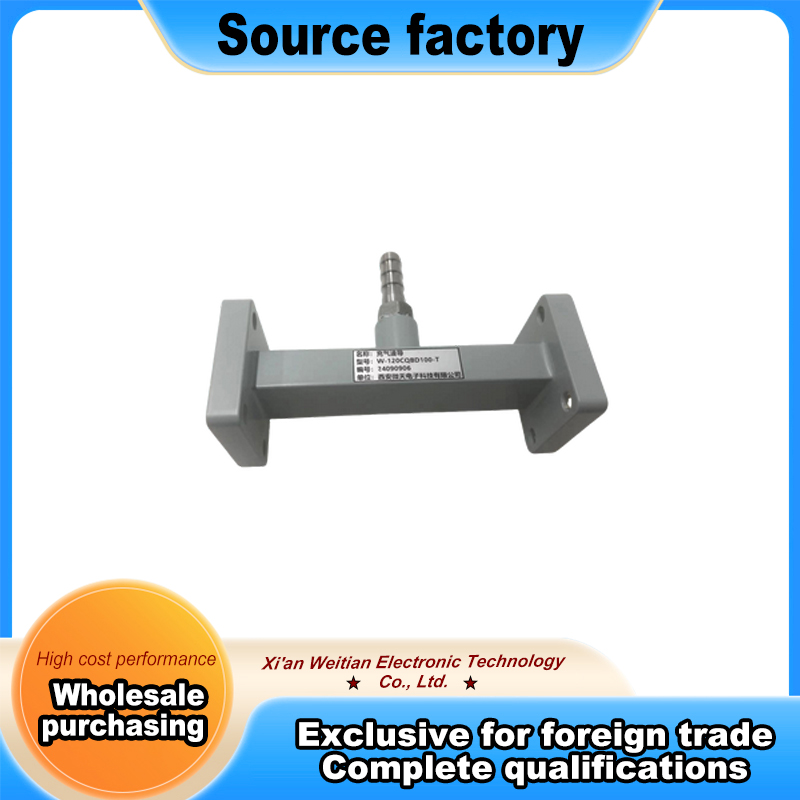

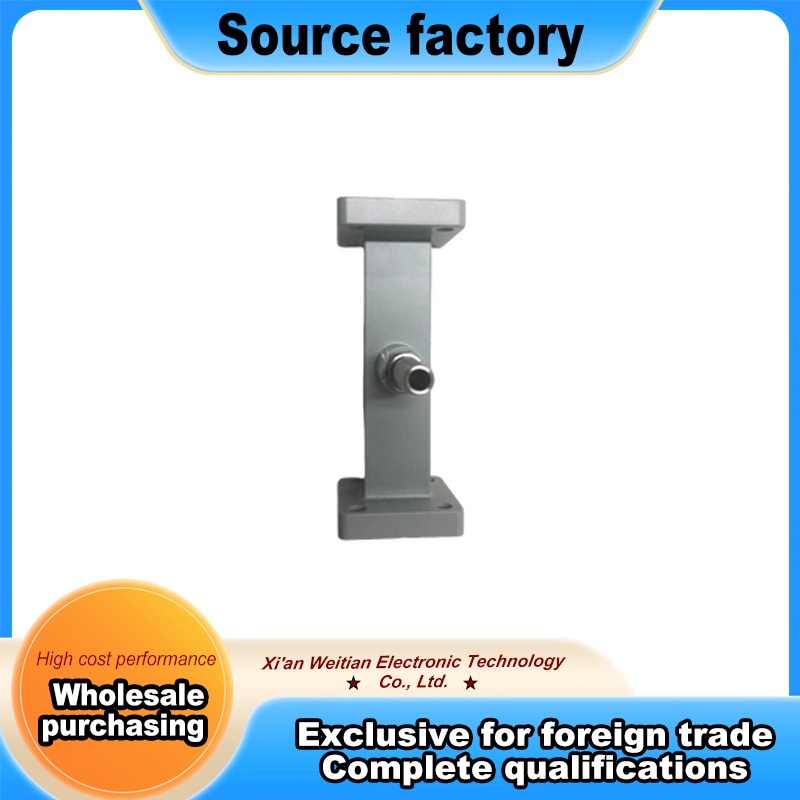

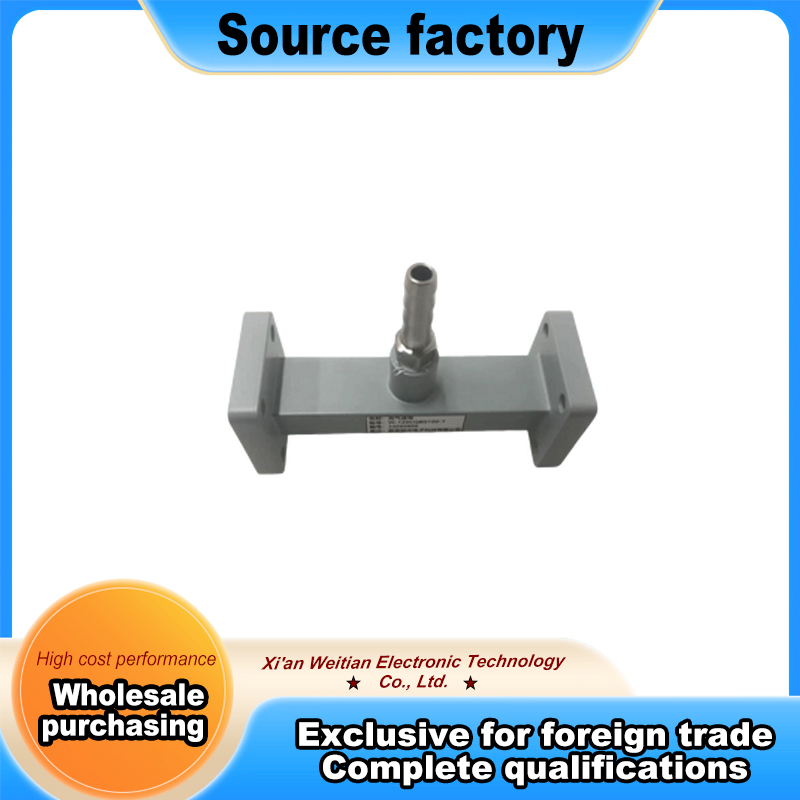

WR75 Pressurized Straight Waveguide for High Power and High Altitude Applications This product is a professional Straight Waveguide featuring a gas inlet port for pressurization. The waveguide operates in the WR75 (BJ120) band and includes a built in gas inlet that allows the interior cavity to be filled with various gases. As a Pressurized Waveguide, it prevents high power arcing and breakdown, especially at high altitudes or in high peak power applications. The section length is 100mm, with custom lengths available upon request. The construction uses aluminum material with conductive oxidation and paint coating for durability. The interface is available as FBP120 or FBM120 flange options. Custom options are available upon request. This pressurized straight waveguide delivers excellent electrical performance across its operating band. The Voltage Standing Wave Ratio (VSWR) is rated at 1.1, which shows very good impedance matching with minimal signal reflection. The insertion loss is…
