WR430 E Plane Cut Corner Bend Waveguide

WR430 E Plane Cut Corner Bend Waveguide

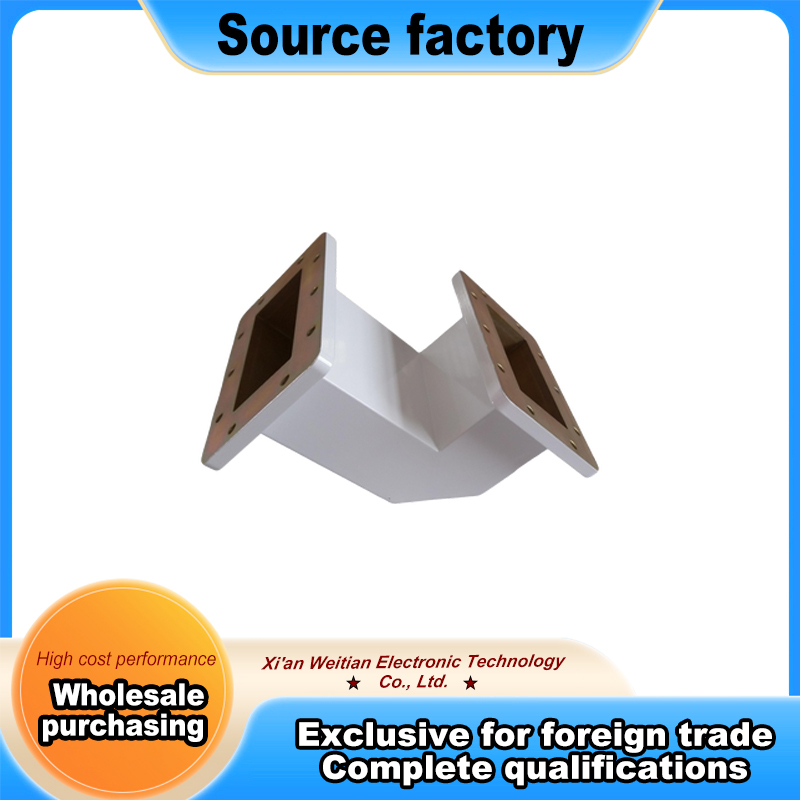

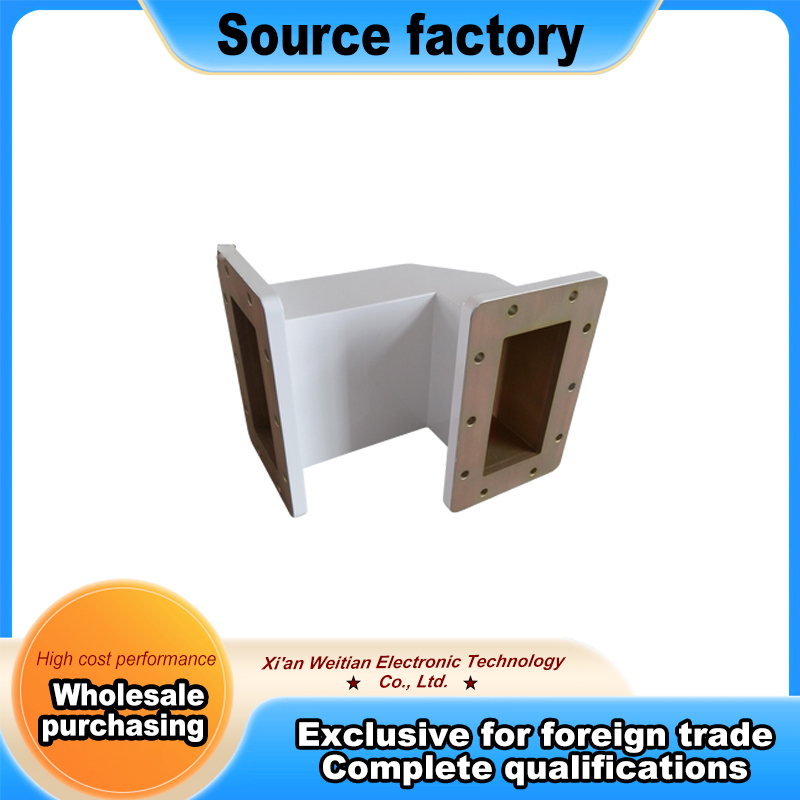

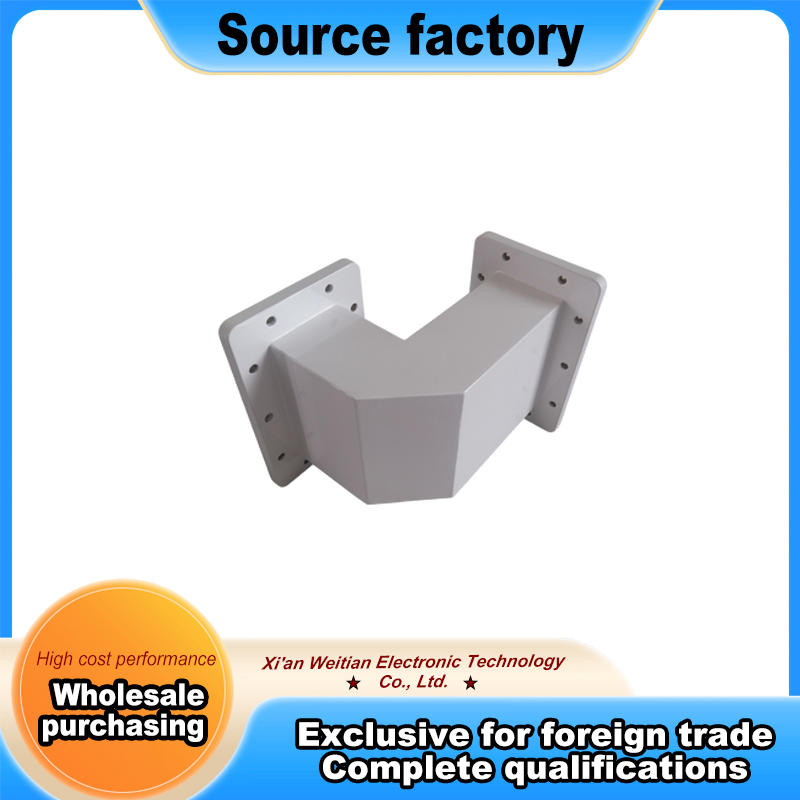

WR430 E Plane Cut Corner Bend Waveguide for Antenna Feeder Systems This product is a professional Waveguide Bend featuring an E plane cut corner design for changing signal direction within the vertical plane. The waveguide operates in the WR430 (BJ22) band covering L band frequencies and provides a 90 degree direction change. As an E Plane Bend, it allows flexible system layout without significant reflection or power loss. The cut corner design provides a compact form factor while maintaining good electrical performance. The bend has dimensions of 200 by 150 millimeters. The construction uses aluminum material with conductive oxidation and paint coating for durability. The interface is FDP22 flange for standard connection to WR430 waveguide systems. Custom options including other bend angles and lengths are available upon request. This E plane cut corner bend delivers excellent electrical performance across its operating frequency band. The Voltage Standing Wave Ratio (VSWR) is rated…
