WR187 Pressurized E Plane Bend Waveguide

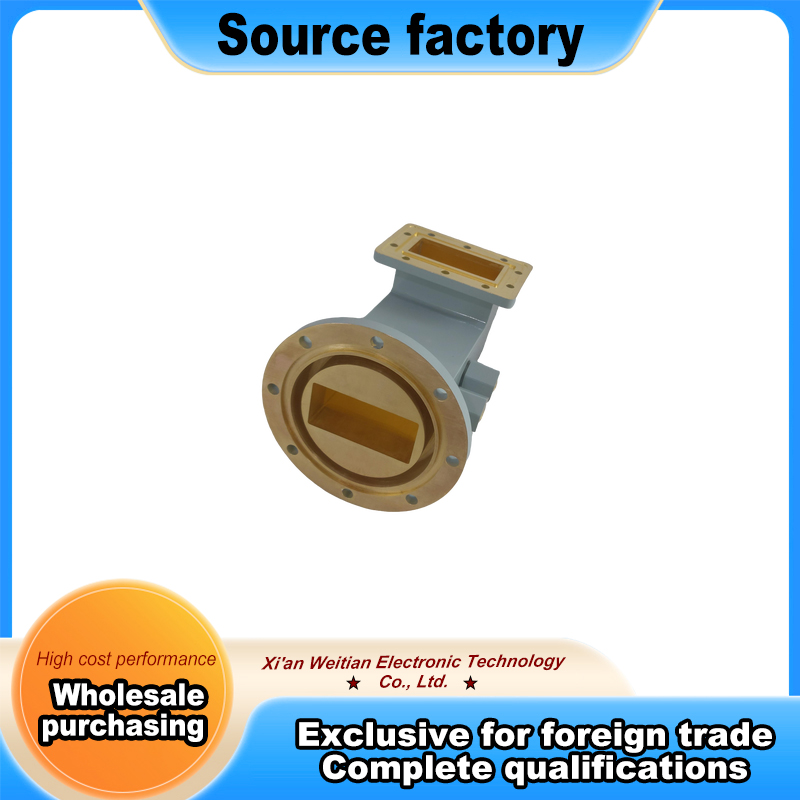

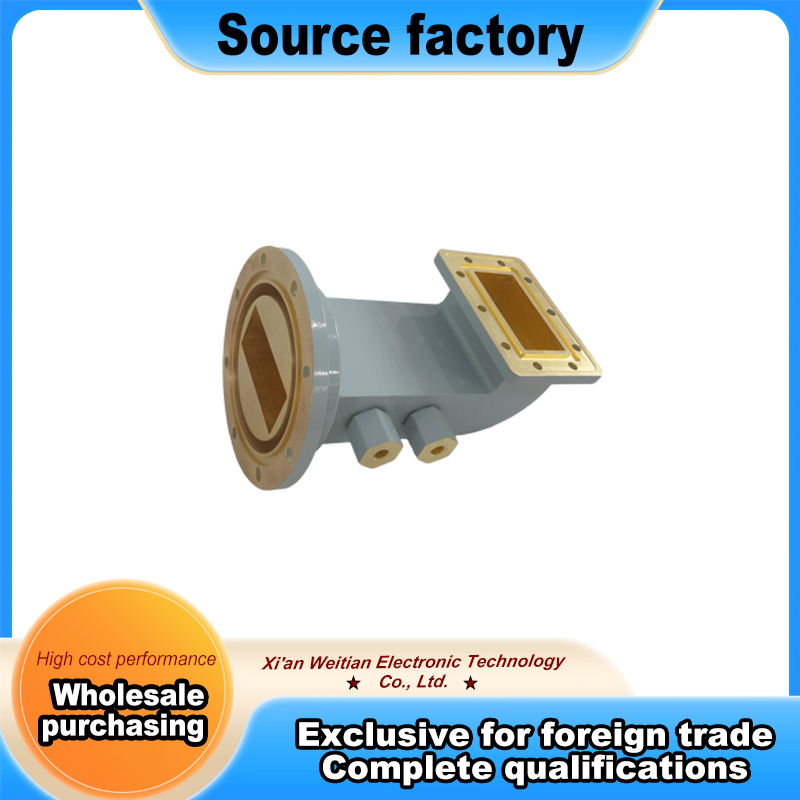

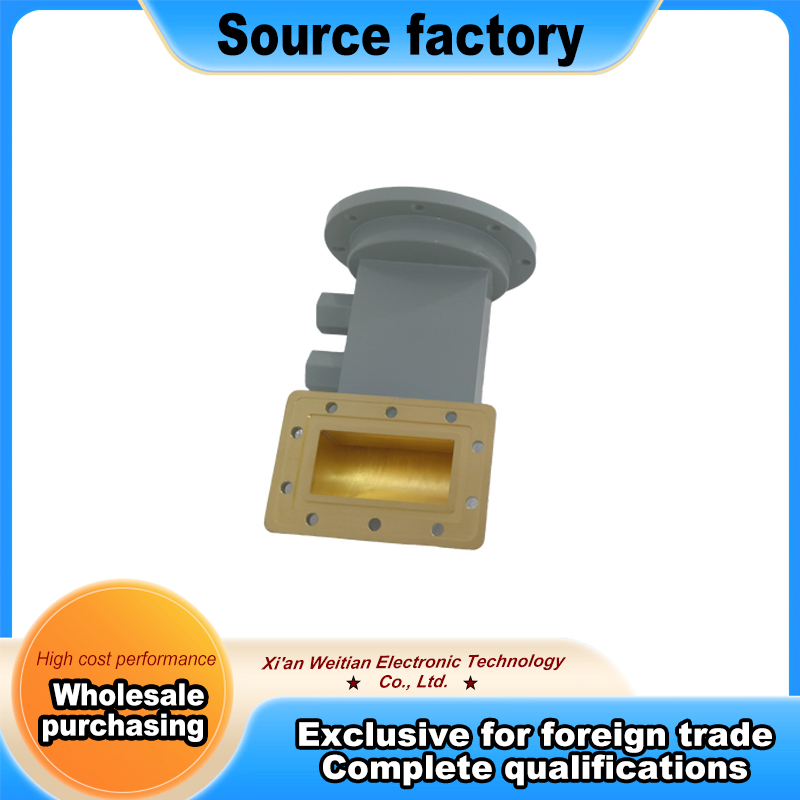

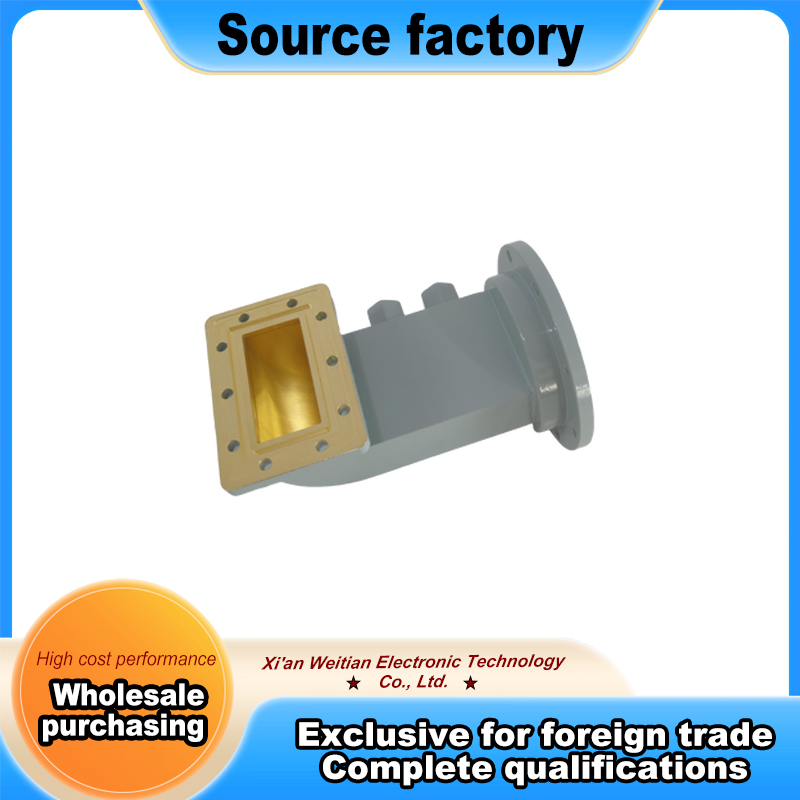

WR187 Pressurized E Plane Bend Waveguide for High Power Applications This product is a professional Waveguide Bend featuring an E plane design with a gas inlet port for pressurization. The waveguide operates in the WR187 (BJ48) band and includes a built in gas inlet that allows the interior cavity to be filled with various gases. As a Pressurized Bend, it prevents high power arcing and breakdown, especially at high altitudes or in high peak power applications. The pressure rating is suitable for demanding environments. The bend has dimensions of 125.5 by 80 millimeters. The construction uses aluminum material with conductive oxidation and paint coating for durability. The interface is available as FAM48 or FDP48 flange options. Custom options are available upon request. This pressurized E plane bend delivers excellent electrical performance across its operating frequency band. The Voltage Standing Wave Ratio (VSWR) is rated at 1.1, which shows very good impedance matching with minima…
