Ku Band Circular Right Angle Bend

Ku Band Circular Right Angle Bend

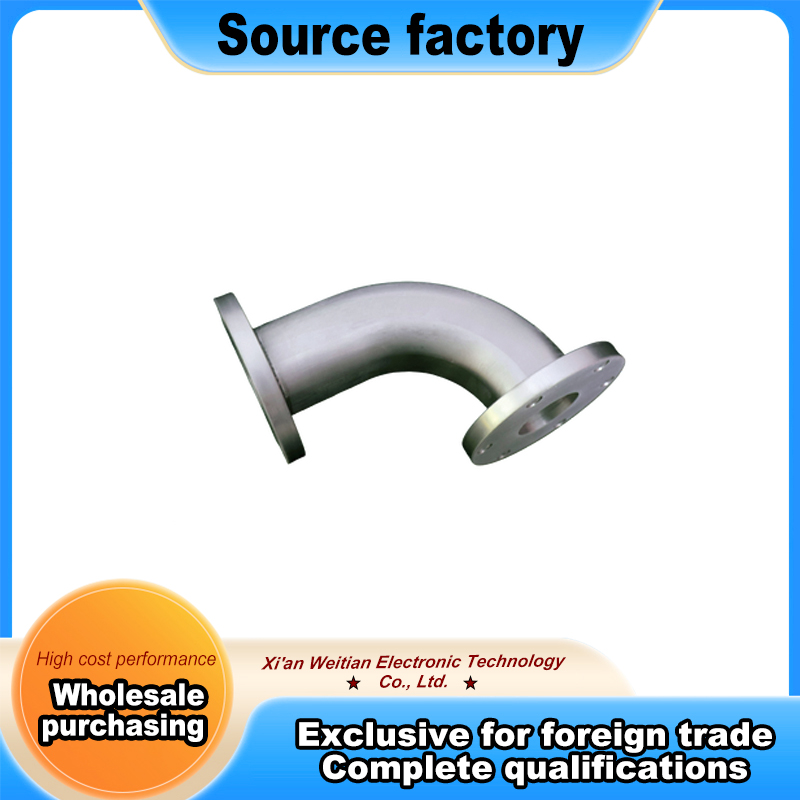

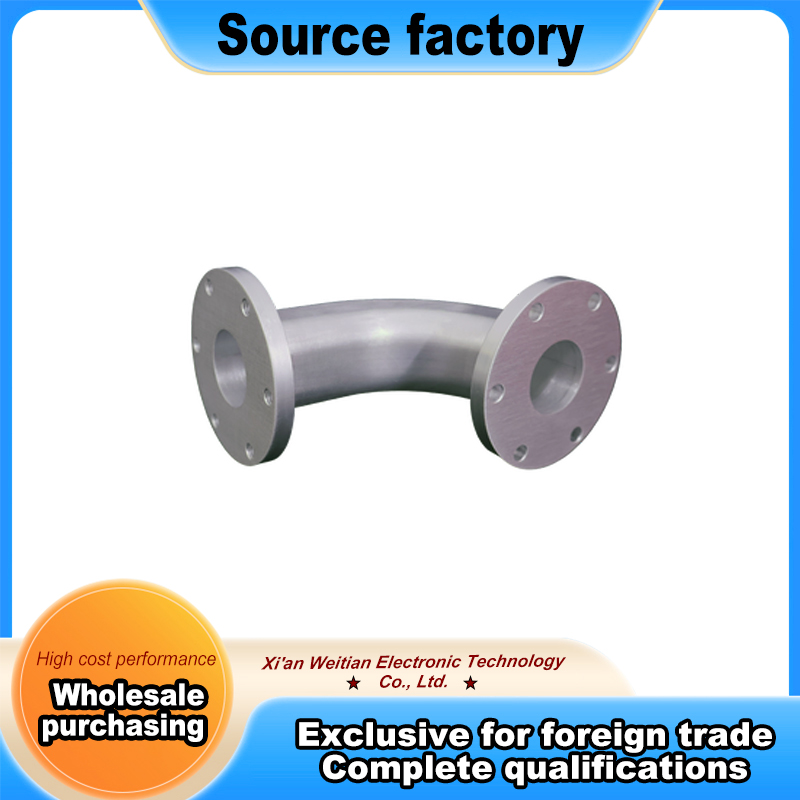

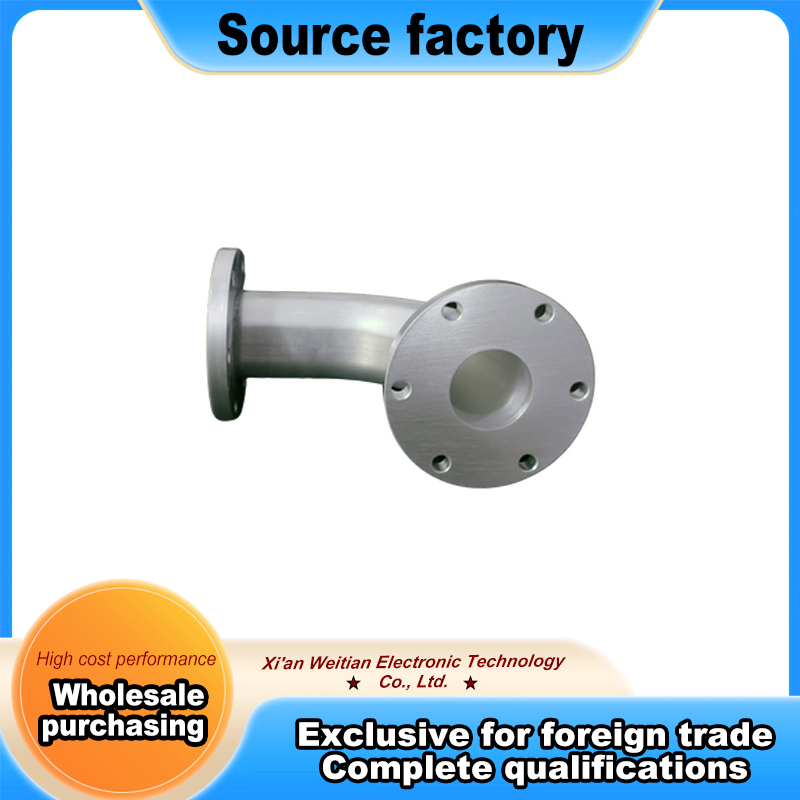

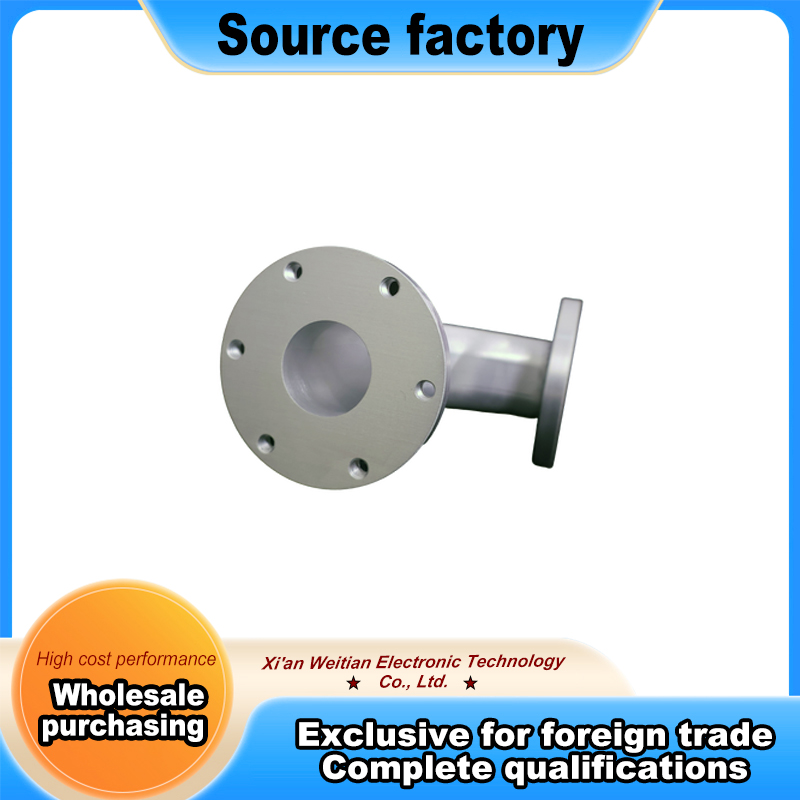

Circular Waveguide Bend for Ku Band Antenna Feeder Systems This product is a professional Waveguide Bend featuring a circular cross section design. The waveguide operates from 10.7GHz to 15.35GHz covering the Ku band and uses a 19mm diameter circular interface. As a Circular Bend, it provides smooth direction changes for signals in circular waveguide systems. The circular cross section makes it suitable for applications requiring circular polarization or specific mechanical interfaces such as rotary joints. The bend has compact dimensions of 45.5 by 65.5 millimeters. The construction uses aluminum material with conductive oxidation coating for durability. Custom options including other bend angles and lengths are available upon request. This circular bend delivers solid electrical performance across its operating frequency range from 10.7GHz to 15.35GHz. The Voltage Standing Wave Ratio (VSWR) is rated at 1.2, which shows good impedance matching with low signal reflection. The insertio…
