MINIF11 Harmonic Reducer with NEMA17 Stepper Motor

MINIF11 Harmonic Reducer with NEMA17 Stepper Motor

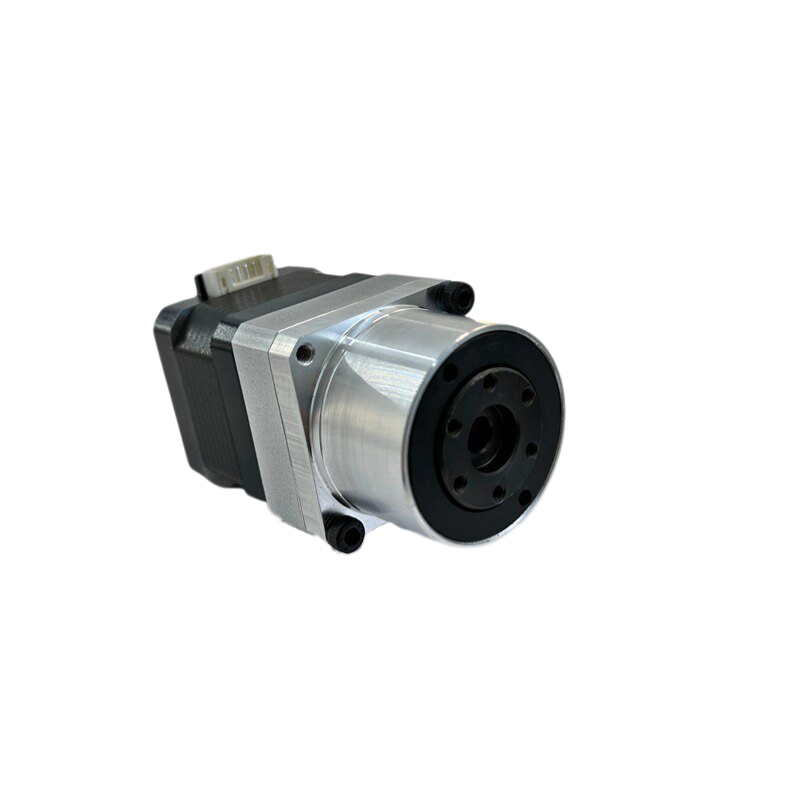

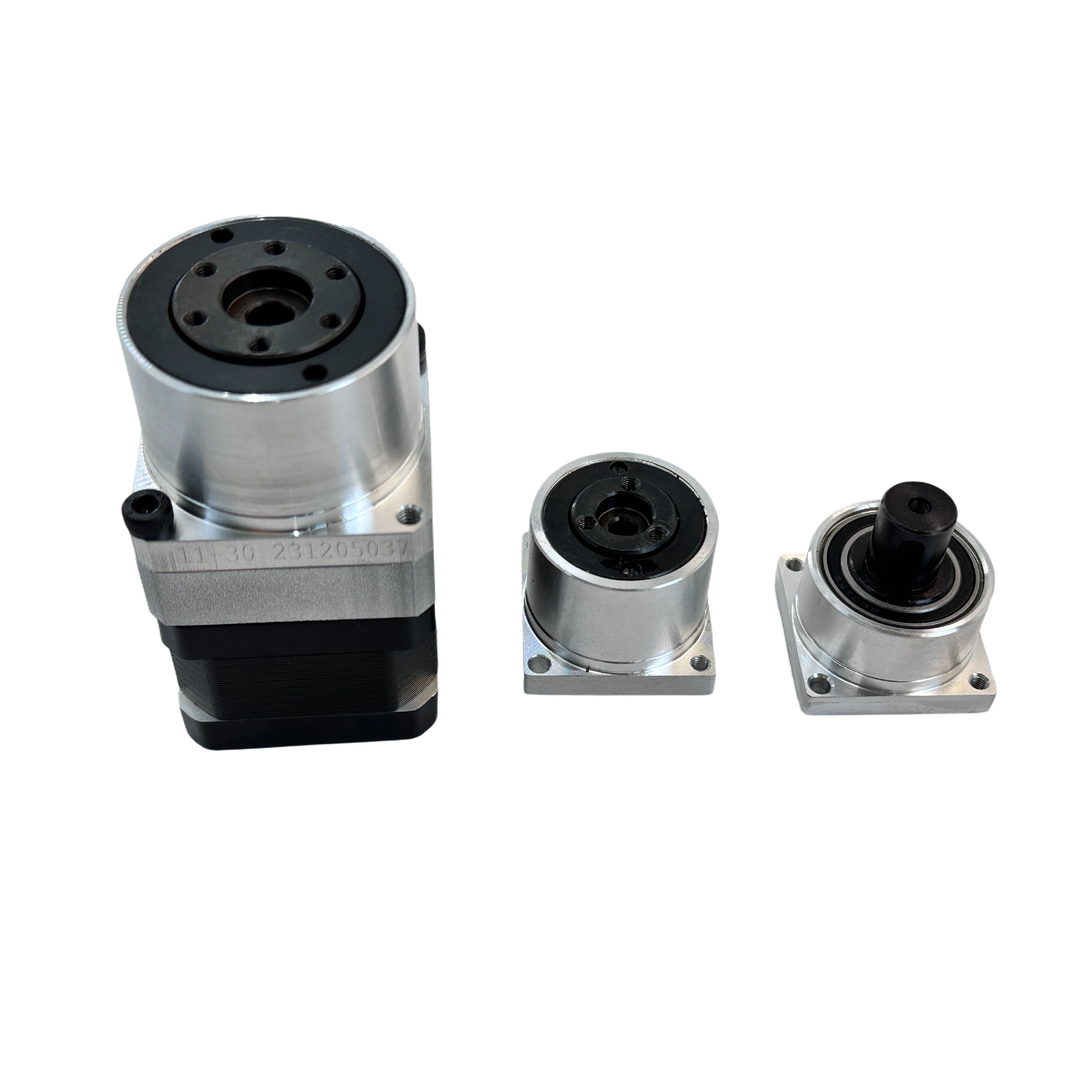

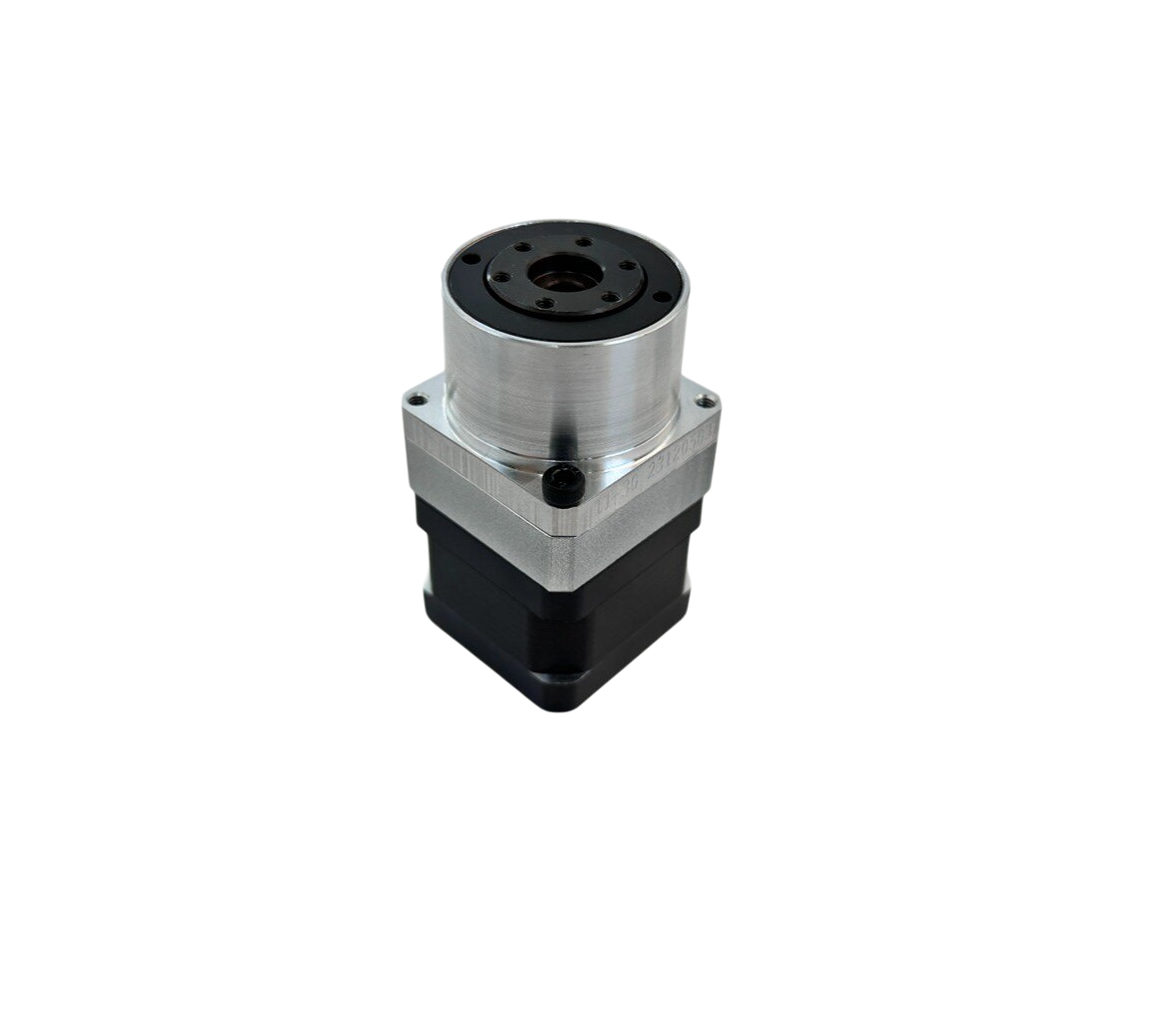

NEMA17 Stepper Motor Module with MINIF11 Harmonic Reducer   This  Joint Module integrates the NEMA17 Stepper Motor and the MINI11 Harmonic Reducer into a single unit.   The product model is MINIF11   The reduction ratios are 30:1, 50:1, 80:1, and 100:1,it is recommended to use torques of 3Nm, 5Nm, 8Nm and 8Nm   The built-in NEMA17 Stepper Motor   The power supply voltage is 12-24V,the rated current is 1.5A   the step angle is 1.8°,and the recommended speed range is 100-500rpm.   MINIF11 Harmonic Gear with NEMA17 Stepper Motor and Custom Assembly Solution     This product is a specialized assembly combining the MINIF11 harmonic gear with a NEMA17 stepper motor, designed for precision motion control in industrial and automation applications. The integration of the NEMA17 motor with the MINIF11 reducer offers an efficient and compact solution for systems requiring high torque and accurate positioning. This combination is ideal for users seeking a reliable and durable drive system that…
