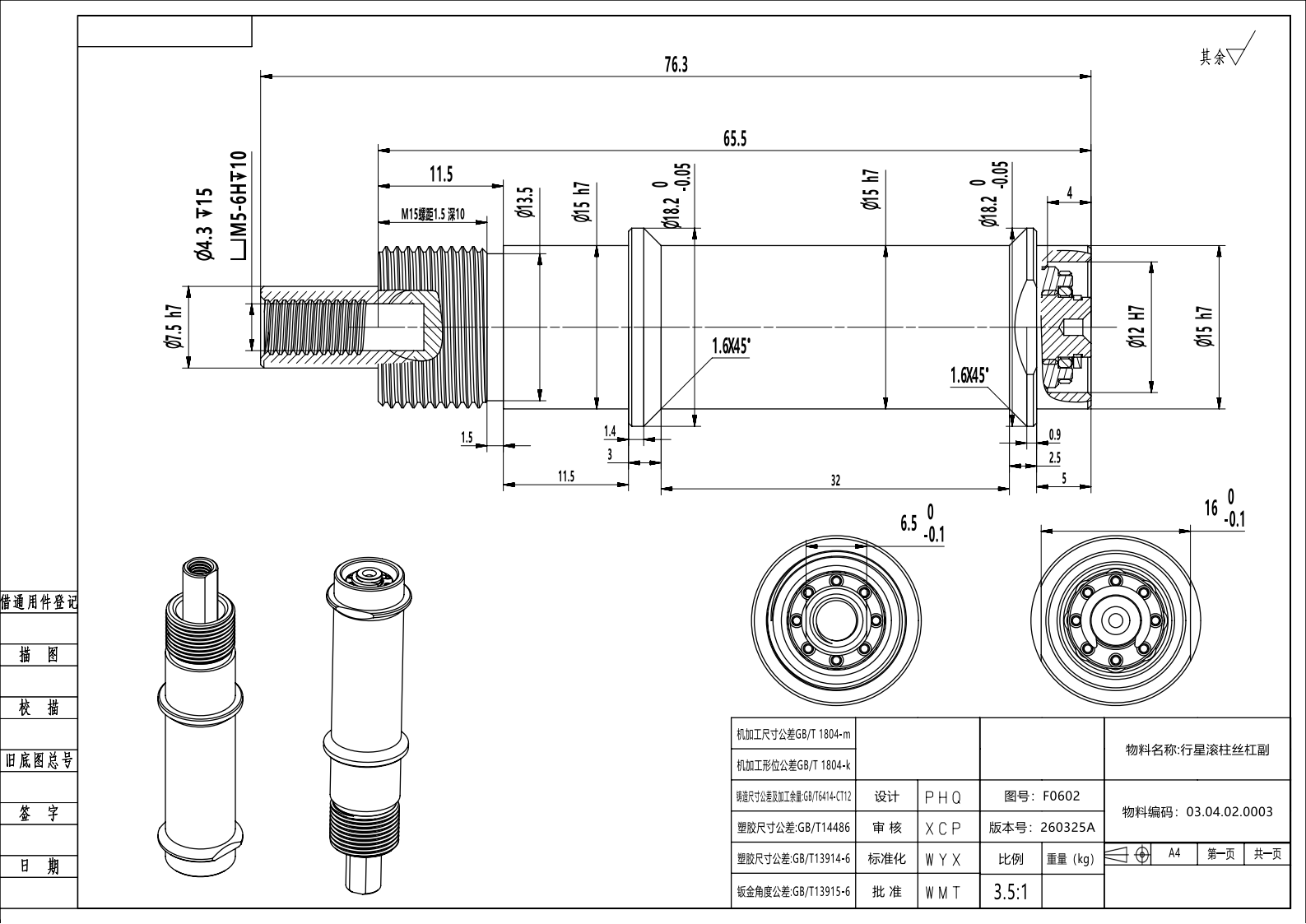

High-Performance Planetary Roller Screw F0602
F0602 Standard Planetary Roller Screw Inverted Planetary Roller Screw,Puying Roller Systems,Precision Motion Control,High Efficiency Screws Model: F0602 | High-Precision Linear Transmission Product Overview The F0602 Standard Planetary Roller Screw features the screw shaft as power input, with rollers orbiting around a fixed axis to drive the nut linearly. This non-recirculating design delivers exceptional load capacity and extended service life for demanding industrial applications. Core Technical Advantages Superior Load Capacity — Line contact design through 6-12 threaded rollers achieves static load 3x higher than ball screws. Extended Service Life — 10-15x longer lifespan than ball screws under identical conditions. High-Speed Performance — Linear speeds to 2000mm/s, rotational speeds to 6000rpm, acceleration to 3g. Precision Positioning — Lead accuracy ±0.005mm per 300mm travel, sub-micron resolution. Compact Design — 1/3 less volume than ball screws under equivale…
