XJ300 Manual Lab Filter Press

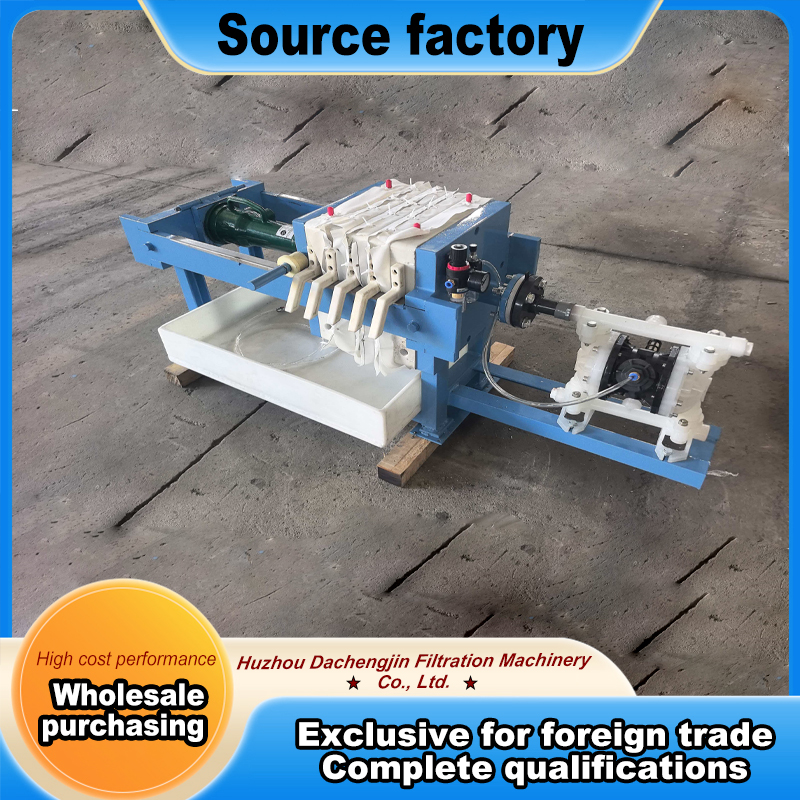

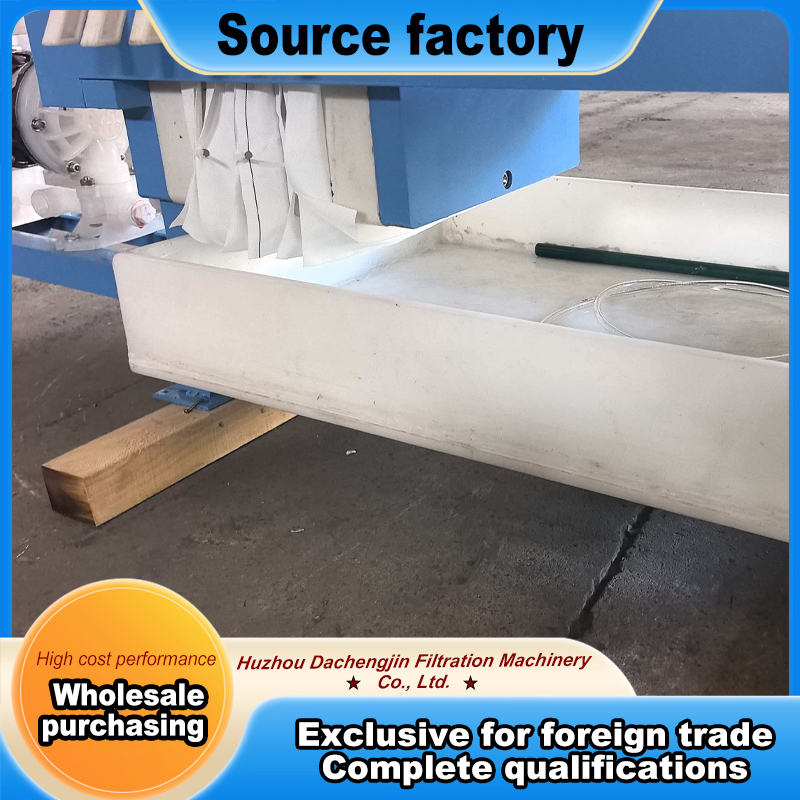

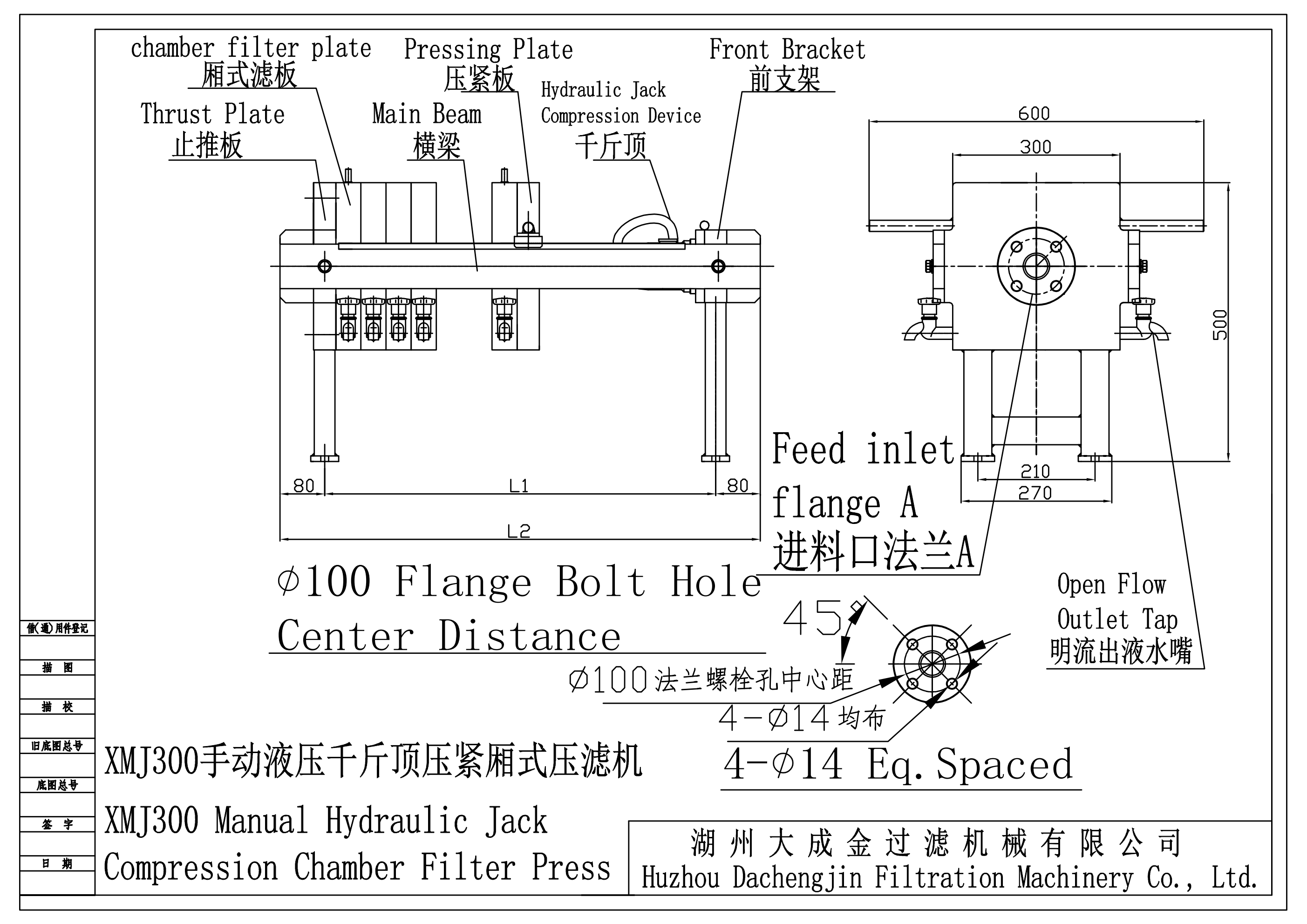

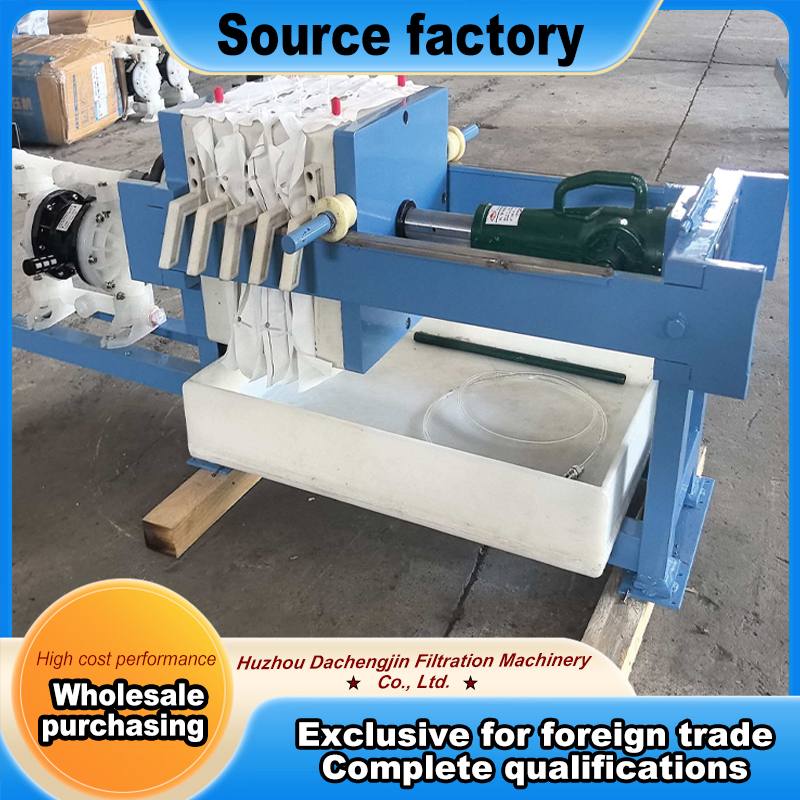

XJ300 Manual Lab Chamber Filter Press The XJ300 is a manual hydraulic jack tightening chamber filter press built for lab use. It works as a Chamber Filter Press for small sample testing and material dewatering trials. The machine consists of a frame, a manual jack clamping system, and chamber plate components. The frame includes a thrust plate, a pressing plate, solid beams, and a base. The clamping system uses a hydraulic jack as the pressing device. Its job is to manually clamp and hold pressure to seal the chambers and prevent slurry leaking. The chamber components are made of chamber plates and filter cloths. The plate size is 300 by 300 millimeters with 50 millimeters thickness. The model code breaks down as follows. X means chamber filter press. J means jack tightening. 300 means the nominal plate size. The maximum filtration pressure is 0.6 MPa. The working temperature range is 60 to 100 degrees Celsius. You can change the plate material formula based on your needs. The machine…
