XZ920 Auto Chamber Filter Press

XZ920 Auto Chamber Filter Press

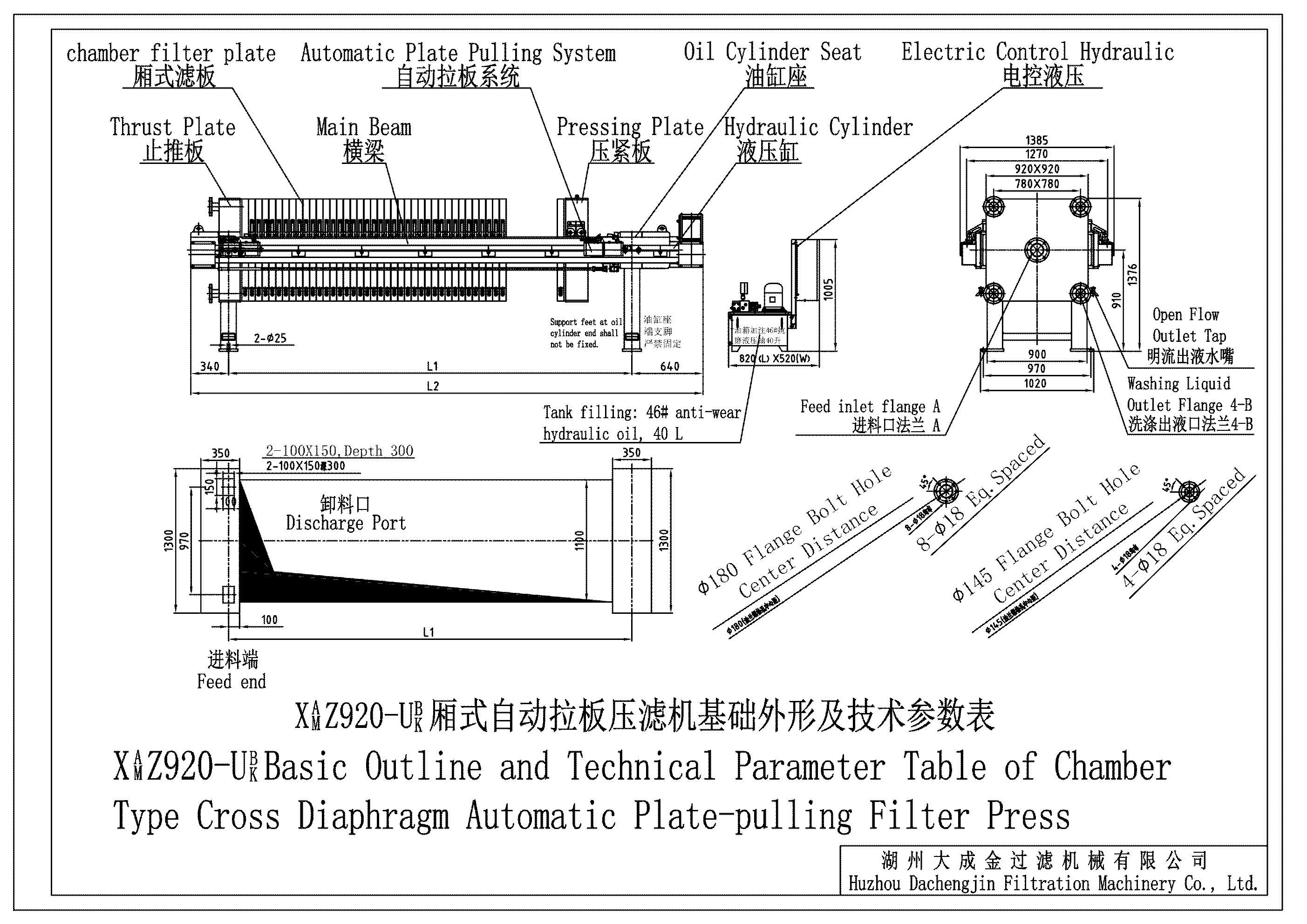

XZ920 Hydraulic Auto Clamping Auto Plate Pulling Chamber Filter Press The XZ920 is a hydraulic clamping auto pressure holding auto plate pulling chamber filter press. The model code breaks down as follows. X means filter press. Z means chamber type. 920 means the plate size which is 920 by 920 millimeters with 60 millimeters thickness. This unit has hydraulic clamping, auto pressure holding, and auto plate pulling. The basic parameters include plate size of 920 by 920 by 60 millimeters, filtration pressure range of 0.6 to 1.0 MPa, hydraulic auto clamping and auto pressure holding, chain auto plate pulling for discharge, reinforced polypropylene plate material, and PLC full automatic control with manual and auto dual mode operation. The machine consists of a carbon steel frame, a hydraulic power system, chamber plate filter units, an auto plate pulling mechanism, an electrical control system, and feed and discharge pipelines. The carbon steel frame provides a sturdy base for the whole m…
