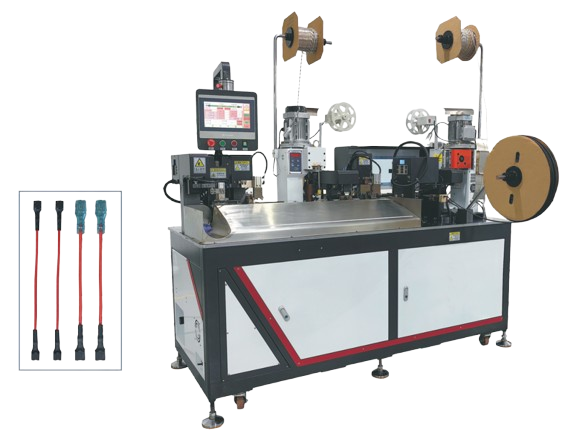

Double-Head Crimping Heat-Shrink Tubing Machine

Website:

Double-Head Crimping Heat-Shrink Tubing Machine

Our dual-head heat shrink tubing crimping machines come in two models: TYDC-7703 and TYDC-7701HK, both powered by AC220V 50/60Hz.    TYDC-7703: Single-end and double-end heat shrink; TYDC-7701HK only supports single-end heat shrink. Model TYDC-7703 TYDC-7701HK Power Supply AC220V 50/60Hz AC220V 50/60Hz Function Wire cutting, single/double-end stripping, double-end crimping, single/double heat-shrink tubing insertion & baking Wire cutting, single/double-end stripping, double-end crimping, single-end heat-shrink tubing insertion & baking Processing Capacity 1000–2300 pcs/hour 1750–2300 pcs/hour Applicable Wire Range AWG24 – AWG16 AWG24 – AWG16 Cutting Length 60 mm – 9999 mm 60 mm – 9999 mm Cutting Precision ±0.2 mm + 0.2% × L ±0.2 mm + 0.2% × L Stripping Length 0 – 15 mm 0 – 15 mm Heat-Shrink Tubing Length 15 – 35 mm (Φ3.5 – Φ9) 15 – 35 mm (Φ3 – Φ8) Air Pressure 5 – 7 kg (clean dry air required) 5 – 7 kg (clean dry air required) Machine Dimensions (L×W×H…
