Heavy-Duty Semi-Automatic Silent Terminal Crimping Machine

Website:

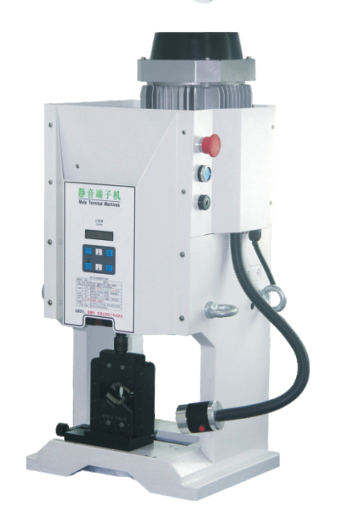

Heavy-Duty Semi-Automatic Silent Terminal Crimping Machine

Some workshops do not need full automation. They need power, control, and a machine that doesn't make the whole floor shake. That's where the TYDC 6T–12T series comes in. It's a semi-automatic crimping machine setup, but it delivers serious pressing force without the noise and instability you usually expect from heavy-duty equipment. Model TYDC-6T TYDC-8T TYDC-10T TYDC-12T Power Supply AC 220V 50Hz AC 220V 50Hz AC 220V 50Hz AC 220V 50Hz Motor Power 2.2 kW 3.0 kW 3.0 kW 3.0 kW Pressing Capacity 6 T 8 T 10 T 12 T Stroke 30 mm 30 mm 30 mm 30 mm Applicable Mold Ordinary, straight, single-grain Ordinary, straight, single-grain Ordinary, straight, single-grain Ordinary, straight, single-grain Operation Mode Single, continuous Single, continuous Single, continuous Single, continuous Machine Dimensions 310 × 270 × 710 mm 360 × 320 × 820 mm 380 × 320 × 830 mm 300 × 380 × 820 mm Weight 130 kg 140 kg 150 kg 160 kg Heavy-duty semi-automatic silent terminal crimping machin…
