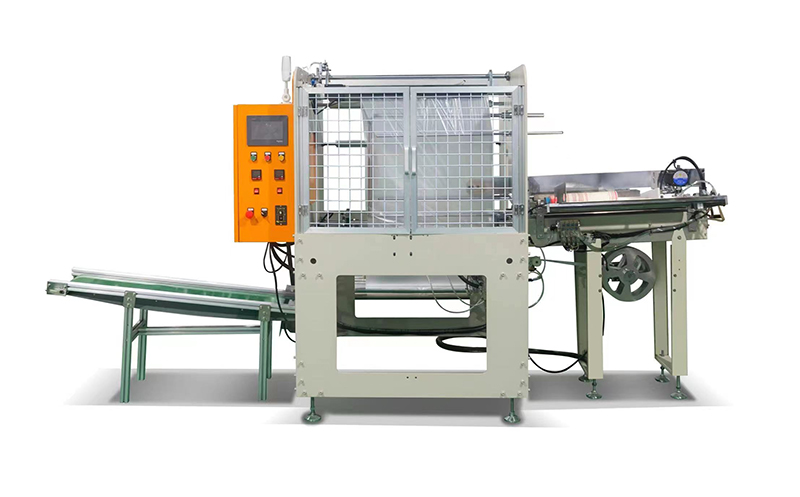

Paper cup and paper bowl drop-and-packaging machine
This machine is a post-packaging device for paper cups and bowls. After production, the paper cups are fed onto the machine's worktable via a counting system. Photoelectric sensors detect the products, which are then automatically conveyed by a robotic arm to the packaging unit for bagging and sealing, ultimately producing packaged items. The machine requires only a 220V power supply and air source to operate. Technical parameters Machine configuration The machine consists of four main components: 1. Material feeding device; 2. Stepper feeding mechanism; 3. Main packing machine; 4. Delivery conveyor. Material feeding device 1)The frame is constructed from aluminum alloy, offering convenient installation and an elegant appearance. 2)Pneumatic cup sorting and flipping for material feeding. 3)The Panasonic photoelectric eye detects the presence of a cup; when a cup is detected, it automatically sorts and flips the cup to the push-ready area. 4)The step-by-step feeding device adv…
