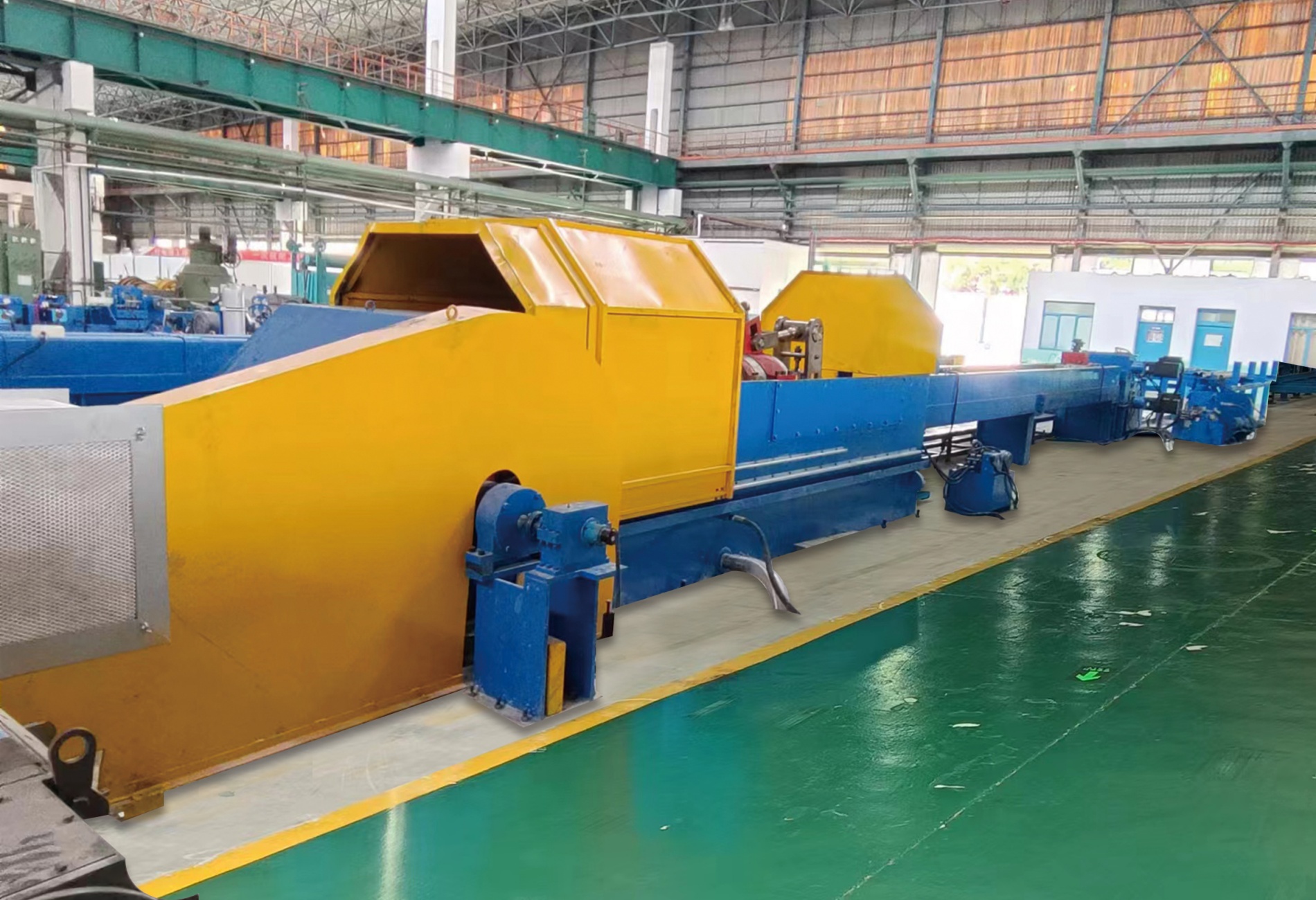

Professional Pipe Cold Pilger Mill LD-100

Professional Pipe Cold Pilger Mill LD-100

Professional Pipe Cold Pilger Mill LD-100   This machine features a robust structure, stable operation, and high production efficiency. It is mainly used for producing large-diameter precision seamless pipes, hydraulic pipelines, mechanical structural pipes, and petrochemical pipes, and is widely used in steel pipe manufacturing, machining, hydraulic fittings, petrochemical, automotive, and construction machinery industries.   No.    Description Unit Tube Cold Rolling Machine Model LD-100 1  Hollow size Outside diameter mm φ50~110 Wall thickness mm 1.5~8 Length m 2~5 2 Tube size Outside diameter mm φ45~102 Wall thickness mm 1~6 Length m ≤10 3 Max. elongation ratio of rolling   It depends on the material 4 Stroke rate of roller carriage str./min. 40~70 5 Stroke length of roller carriage mm 752 6 Length of hollow feed mm 1~8 7 Rotating angle of hollow during feed Deg. 45~75 8 Rotate-and-feed mechanism   Servos 9 Method of loading/unloading   Mechan…
