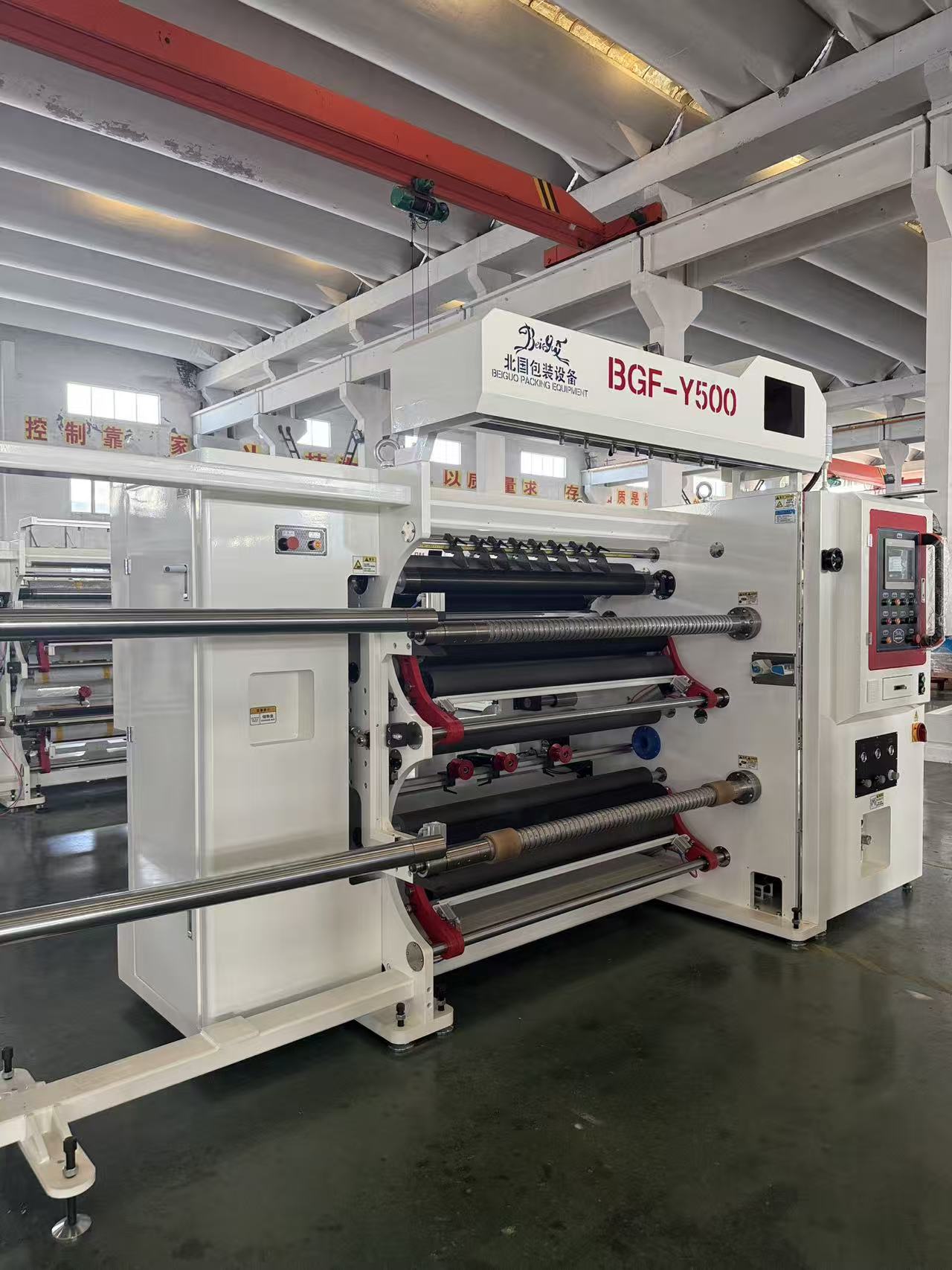

Y500 high speed slitting machine
Slitting machine and rewind machine details as follows: Unwind part: 1.The shaftless for unwind, lifting by hydraulic, it is convenient and can operate by one person easily. 2. Unwind tension control automatically, can also controlled by manual. The slitting machine can inspect the unwind diameter automatic. The worker can set the auto stops length for the material. 3. EPC is CCD camera system for tracking the line or the edge. 4. The machine have the table for splicing with pneumatic pressing. Feeding part: 1. Feeding: one set of 4.4KW servo motor. 2. The Feeding roller controlled by motor directly, transmission by timing belt, low noise, and good performance. 3. The feeding rubber roller is good quality, pressure is adjustable. Rewind part: 1. Rewind : 2 pcs of 3’’ air differential shaft (up and down) . 2. Rewind tension control by 2 sets of servo motors 4.4KW, auto tension. 3. The pressing roller is rubber roller and can adjust the air pressure. 4. Equip with 8 sets of laser dev…
