Industrial Electric Winche 10000 Lb

Industrial Electric Winche 10000 Lb

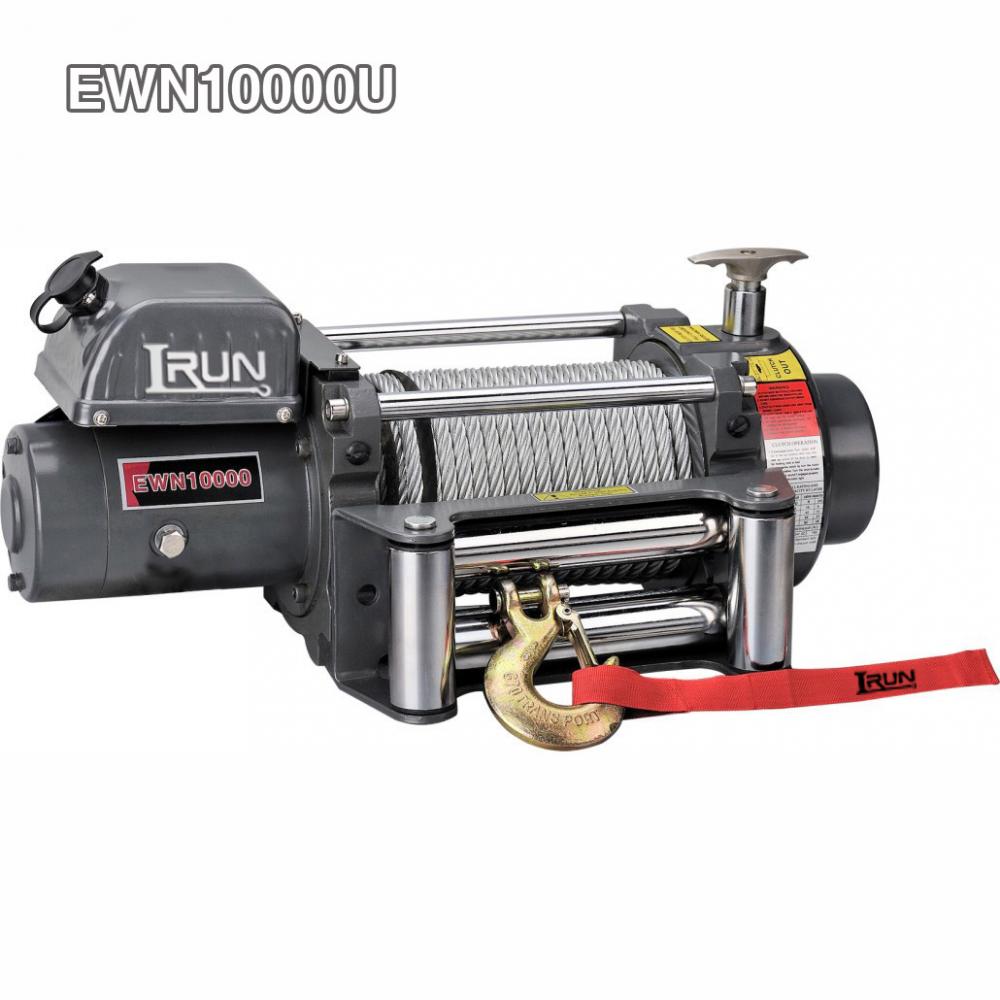

Industrial Electric Winche 10000 Lb Industrial Electric Winch Item No. EWN10000U Winching Capacity of up to 10000lbs. Each winch come along with a control box installed on winch Motor, a wire rope with hook,a roller failread. This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation,and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson. Heavy Duty Electric Winch EWN Series have a more durable working life, faster line speed and better efficient transmission than our Winch EWX Series.They’re widely applied for the severe offroad or engineering use. SPECIFICATION   Rated line pull 10000 lbs (4536 kgs) Motor: permanent magnet 12V:Input: 4.0kW / 5.3hp;Output: 1.9 kW /2.5hp 24V:Input: 4.9kW /6.6hp;Output: 2.4 kW /3.2hp   Gear reduction ratio 332:1 Cable (Dia.× L) Ø3/8″×85.3 ‘ (Ø9.2mm×26m) Drum size (Dia.× L) Ø2.8 “×8. 6” (Ø72mm×219mm) Mounting bolt pattern 10 “×4.5 ” (254mm×…
