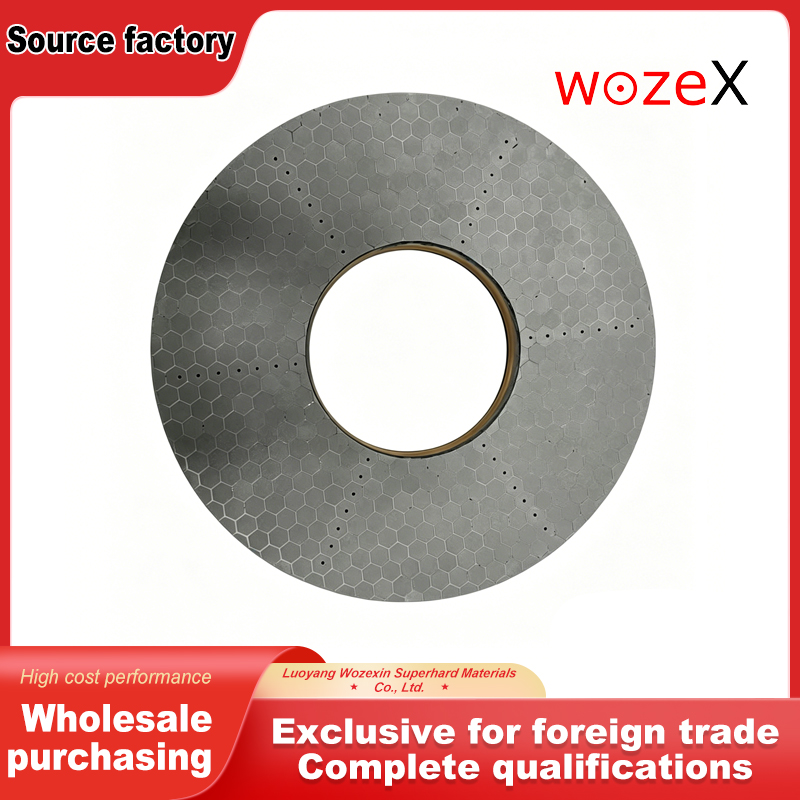

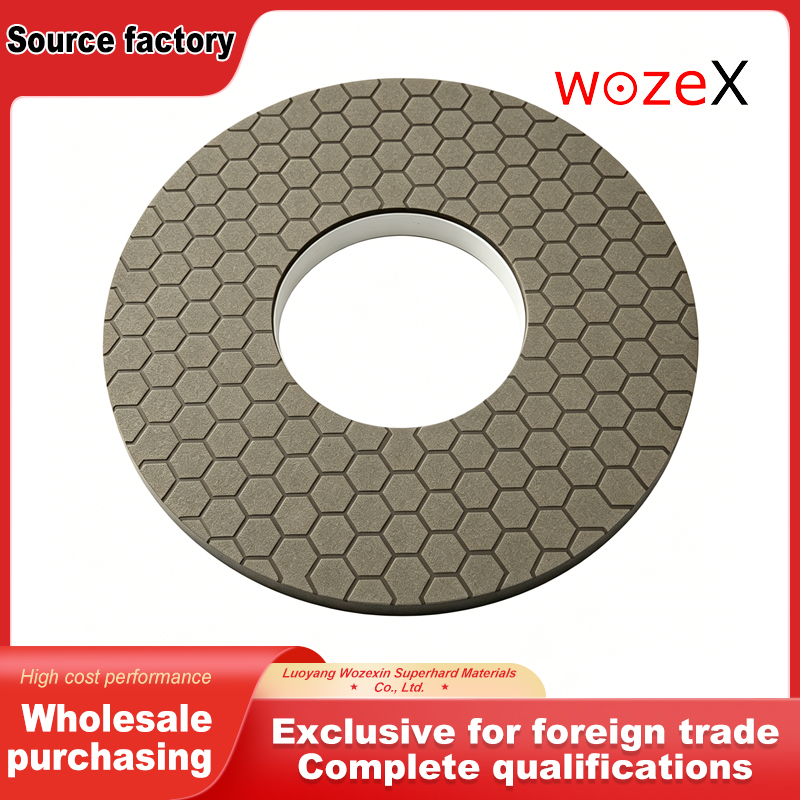

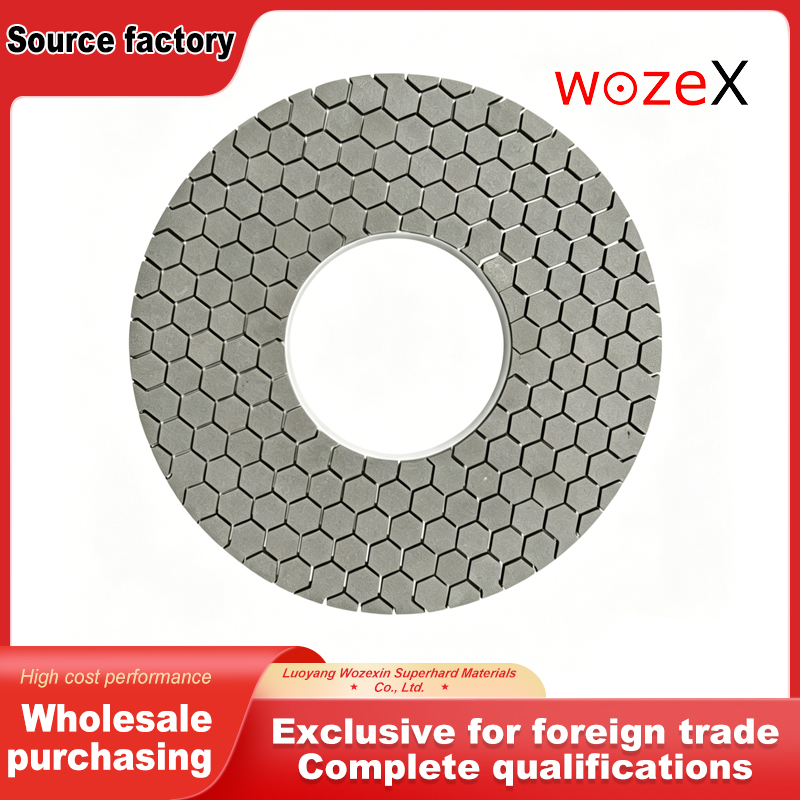

Hardened Bearing Steel Double Face CBN Lapping Plate

Hardened Bearing Steel Double Face CBN Lapping Plate

700 outer diameter grinding stainless steel, bearing steel high-precision bearing ring roller CBN grinding disc   Adhesive type: ceramic, resin   Abrasive type: Diamond D, cubic boron nitride CBN   Shape: 1A2T hexagonal, cylindrical, fan-shaped, other customized grinding blocks   Diameter: 700mm   Inner hole: 300mm   Ring width: 200mm   Ring thickness: 6mm, 8mm, 10mm can be customized   Granularity: 80 # -2000#   Product features: high grinding efficiency, long service life, wide applicability, strong universality, high precision, and good surface quality of the processed workpiece (high flatness and smoothness).   Scope of application:   CNC blades: hard alloy, metal ceramic, ceramic, CBN blades;   Industrial ceramics: oxide and non oxide ceramic products such as alumina, zirconia, indium oxide, silicon nitride, boron nitride, etc;   Magnetic materials: 3C, automotive magnetic material products;   Powder metallurgy: gears, hardware, etc;   Automotive components: rotor, stator;   Hydr…
