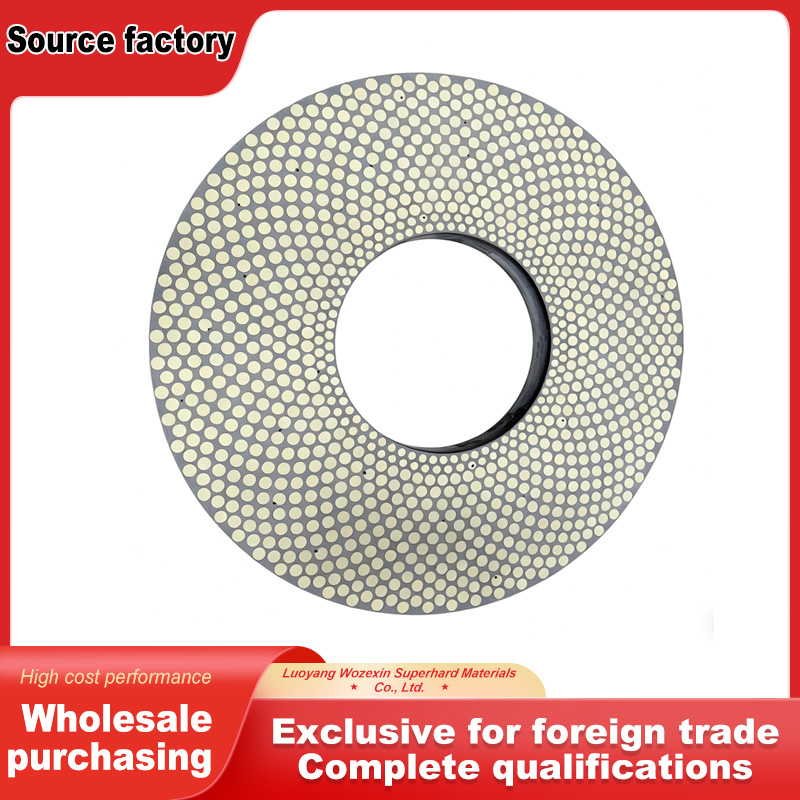

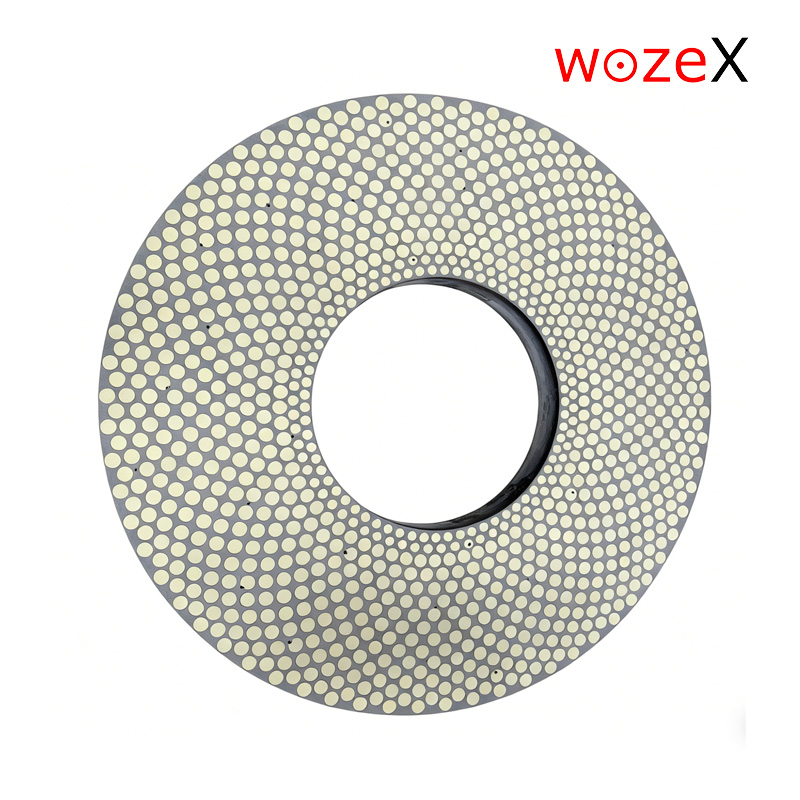

Mixed Diamond CBN Disc for Sintered Magnetic Lapping

Mixed Diamond CBN Disc for Sintered Magnetic Lapping

970 outer diameter grinding industrial ceramic powder metallurgy magnetic material double end grinding disc   Adhesive type: ceramic, resin   Abrasive type: Diamond D, cubic boron nitride CBN   Shape: 1A2T hexagonal, cylindrical, fan-shaped, other customized grinding blocks   Diameter: 970mm, 973mm   Inner hole: 380mm, 403mm   Ring width: 295mm, 285mm   Ring thickness: 6mm, 8mm, 10mm can be customized   Granularity: 80 # -2000#   Product features: high grinding efficiency, long service life, wide applicability, strong universality, high precision, and good surface quality of the processed workpiece (high flatness and smoothness).   Scope of application:   CNC blades: hard alloy, metal ceramic, ceramic, CBN blades;   Industrial ceramics: oxide and non oxide ceramic products such as alumina, zirconia, indium oxide, silicon nitride, boron nitride, etc;   Magnetic materials: 3C, automotive magnetic material products;   Powder metallurgy: gears, hardware, etc;   Automotive components: roto…
