GCr15 Steel Release Bearing

Website:

GCr15 Steel Release Bearing

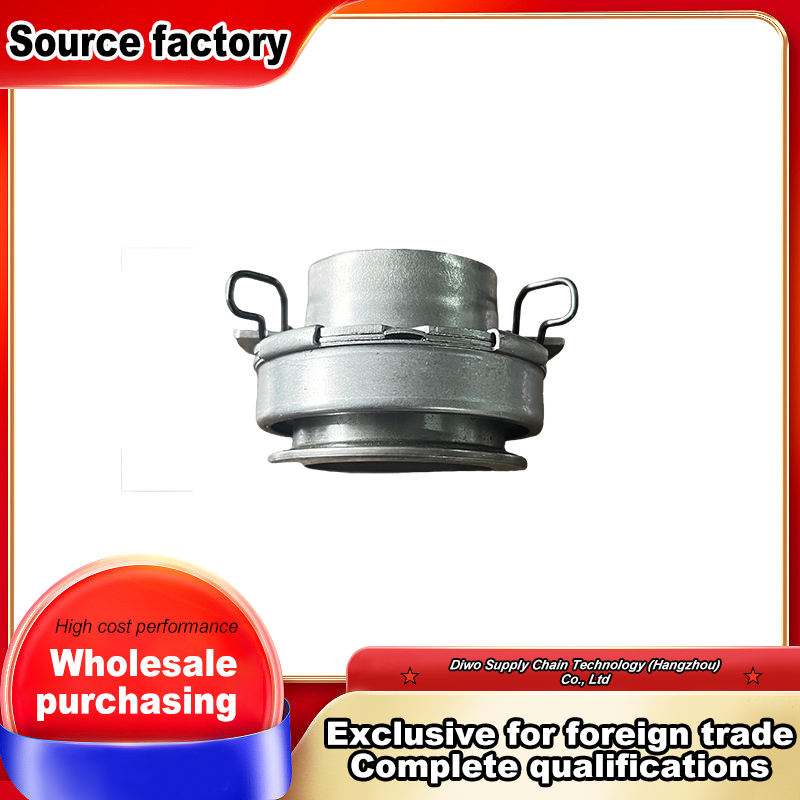

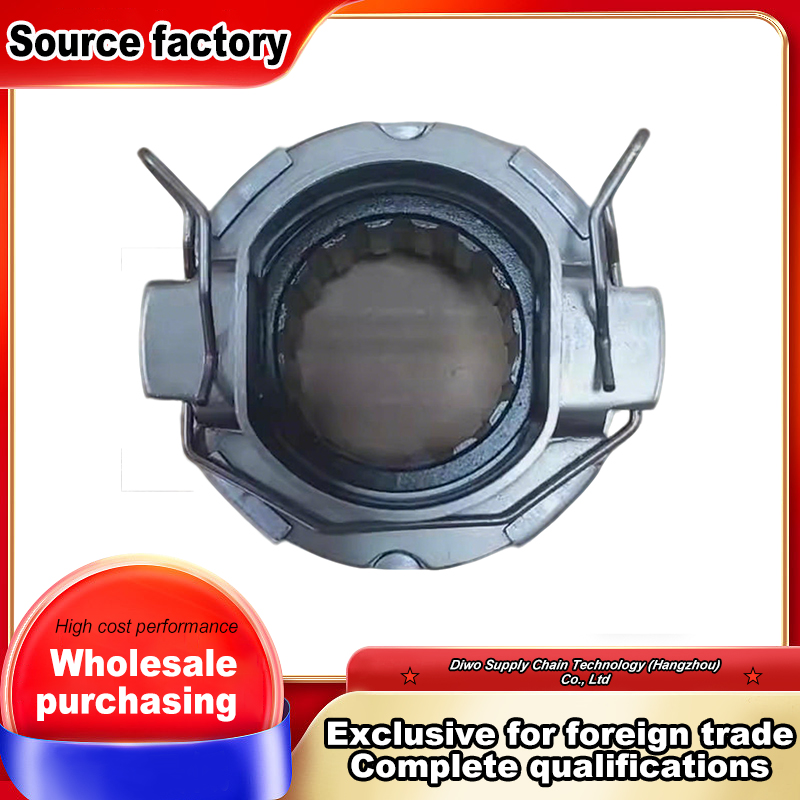

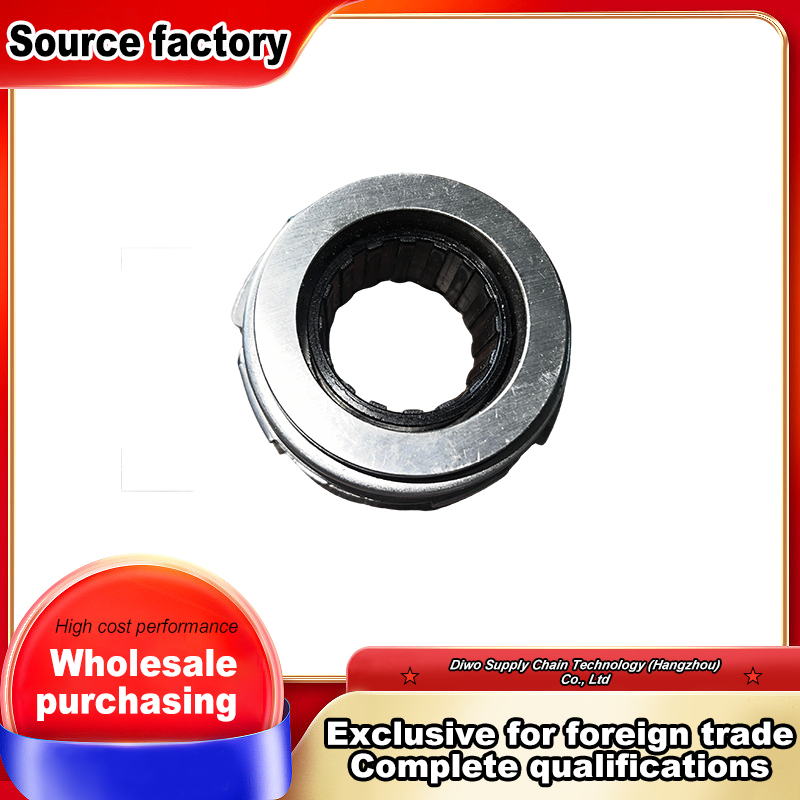

Small Clutch Release Bearing Model R631A-1601307 for Suspension And Linkage Components This product belongs to the Suspension And Linkage Components category. This part is a small clutch release bearing. It is also called a clutch throw out bearing. The bearing mounts on the clutch fork or slave cylinder push rod. It presses against the diaphragm spring fingers of the pressure plate when the driver pushes the clutch pedal. The release bearing allows the pressure plate to spin while the clutch fork remains stationary. This disengages the engine from the transmission. The model number is R631A-1601307. The dimensions are 34.0mm inner diameter 72.0mm outer diameter and 43.5mm total height. The bearing inner ring outer ring and rolling elements are made of high carbon chromium bearing steel. The spec sheet specifies GCr15. This is a standard bearing steel grade. GCr15 has high hardness and good wear resistance. The steel is through hardened. The heat treated hardness is HRC 60 to 65. Thi…
