Integrated Base Oil Cooling Module

Website:

Integrated Base Oil Cooling Module

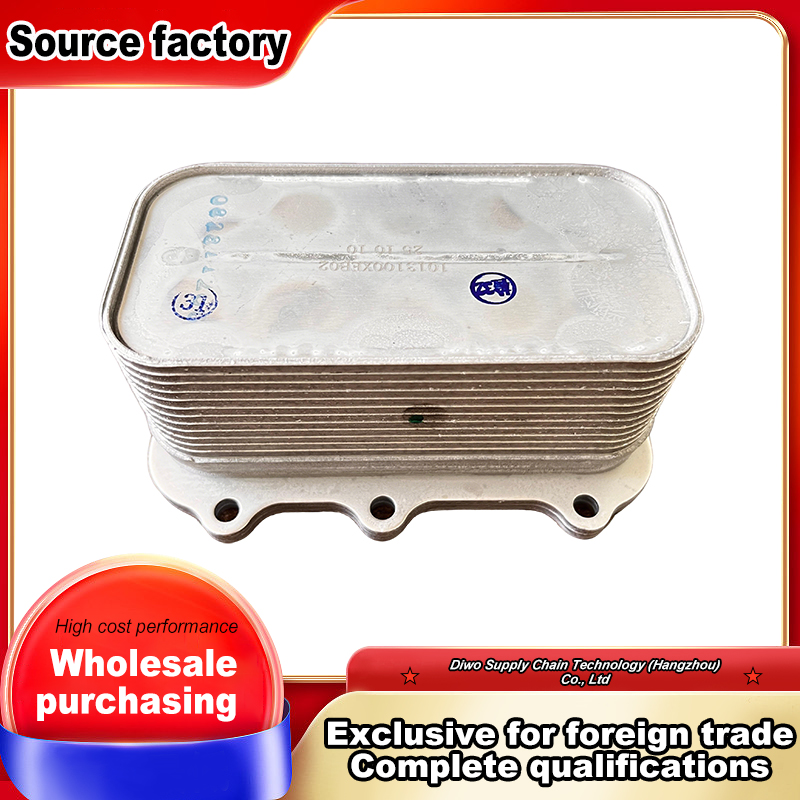

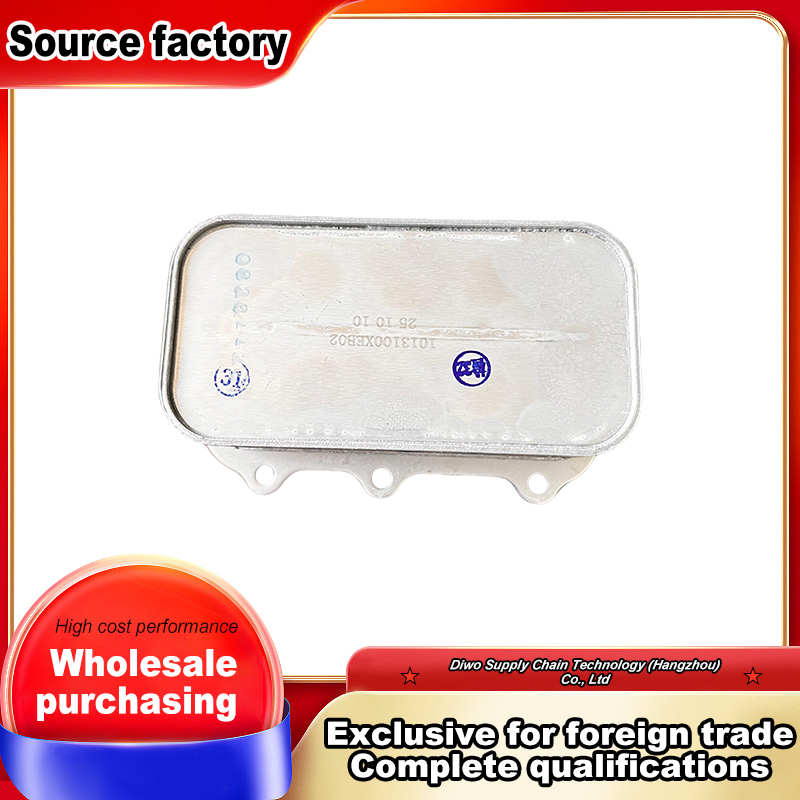

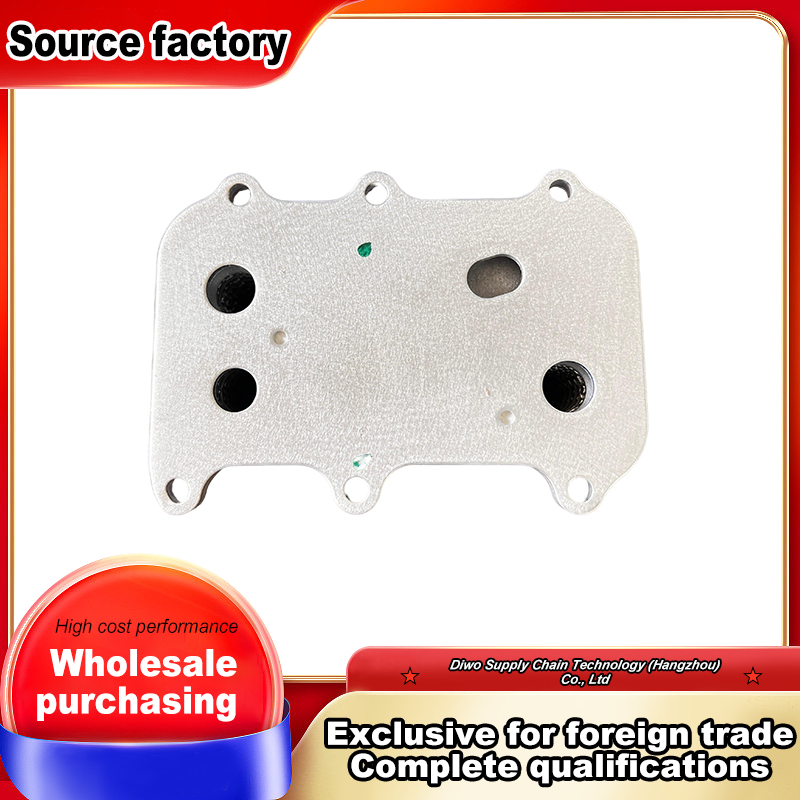

   Oil Cooler Model 1013100XEB02 for Cooling System This product belongs to the Cooling System category. This part is an oil cooler. It mounts between the engine block and the oil filter. The oil cooler uses engine coolant to lower the temperature of the engine oil. Cool oil protects engine bearings and moving parts better than hot oil. The oil cooler also helps the engine warm up faster by heating the oil with coolant during cold starts. The model number is 1013100XEB02. The dimensions are 145mm in length 100mm in width and 60mm in thickness. The main core fins and plates are made of aluminum alloy. Aluminum is lightweight. It also has high thermal conductivity. This means heat passes through the aluminum easily. The core transfers heat from the oil to the coolant. The fin design increases the surface area. More surface area means better heat transfer. The aluminum core is brazed or assembled into a strong unit. The core is the working part of the oil cooler. The dimensions are 145m…
