125°C XLPO LSZH Radiation Crosslinked Insulation Pellets

125°C XLPO LSZH Radiation Crosslinked Insulation Pellets

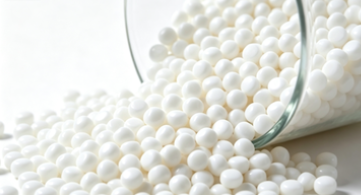

125°C XLPO LSZH Radiation Crosslinked Insulation Pellets are eco-friendly halogen-free low-smoke materials for automotive brake cables, customizable in various colors; use black masterbatch cautiously to prevent blooming, featuring great mechanical performance, strong adhesion and good processability, typical parameters: density 1.09 g/cm³, tensile strength 16.2 MPa, elongation at break 380%, -40℃ brittleness temperature, high insulation resistance, dielectric strength 22 MV/m, oxygen index 22, stable after 158℃×168h aging and low permanent deformation in hot elongation test, applicable to tube/pressure extrusion with L/D≥25 screw and conductor preheating, max processing temp ≤240℃, irradiation dosage 17–18 Mrad, dry cylindrical pellets at 70–90℃ for 2h, packed in 25kg composite bags (500kg per pallet) and stored cool dry, cable structures and processing conditions affect performance, all data are typical values for reference only. It boasts ultra-high elongation at break to adapt to l…
