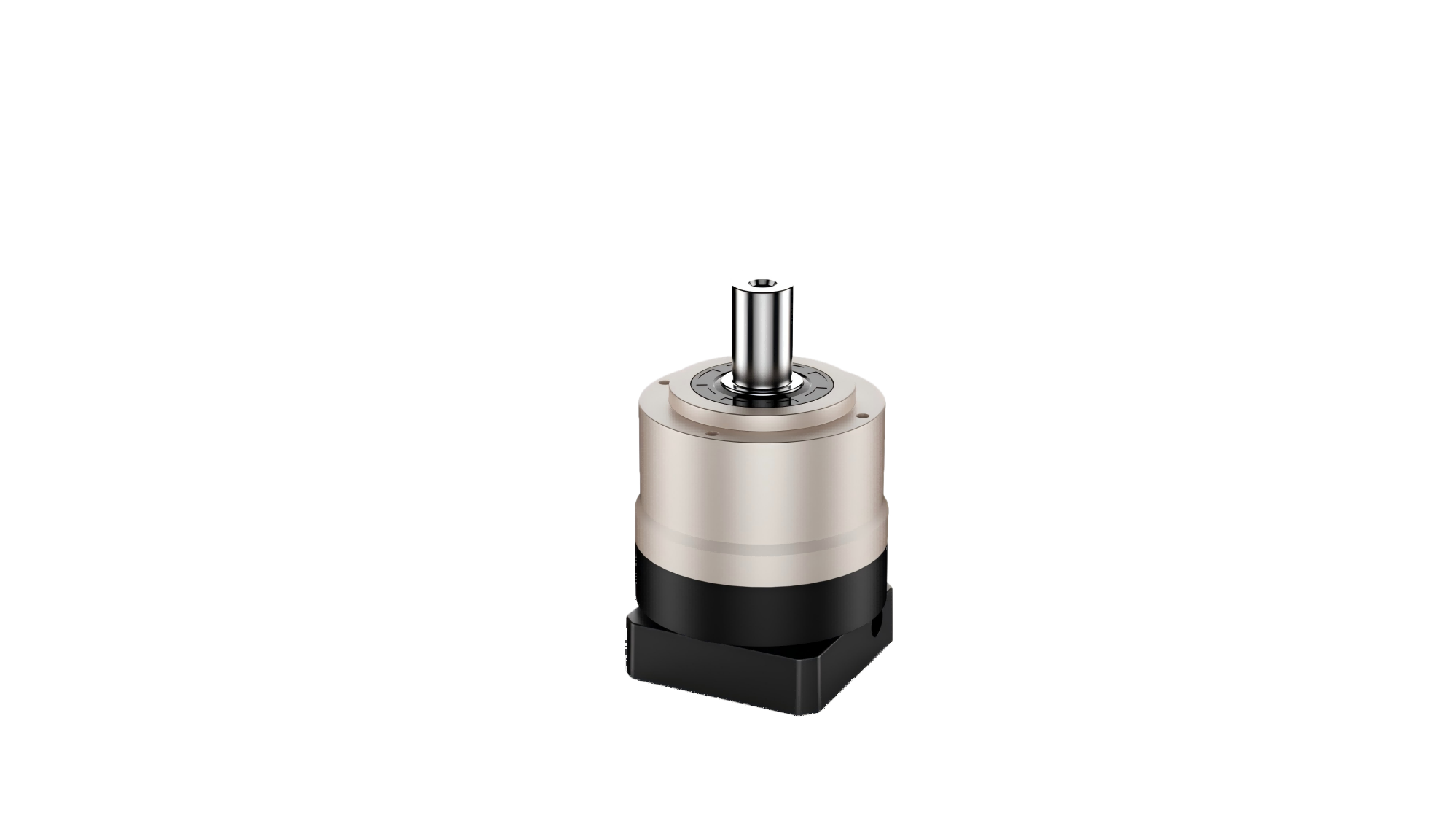

Planetary gear reducer SAE050

Planetary gear reducer SAE050

SAE050 In-Line Miniature Planetary Gearbox | Cost-Effective Low-Backlash Servo Drive Maximize your system efficiency and design economy with the Planetary gear reducer SAE050, a highly optimized miniature inline drive within our competitive SAE Series Planetary Gearbox lineup. Explicitly developed to strike an ideal balance between cost efficiency and technical precision, this premium Helical Gear Reducer provides a stable constant rated torque capacity of 14NM to 22NM packaged in a ultra-compact 50mm frame size. Engineered for clean mounting to small-scale servo and stepper motors, its multi-planet configuration shares rotational stresses evenly to preserve axis concentricity. With fixed precise tracking limits bounding play under ≤5 arcmin, the SAE050 delivers an ultra-low noise signature, reliable thermal balance, and smooth inline power integration for light-duty positioning. Engineering & Kinematic Performance Matrix Torque Profile: 14NM – 22NM Constant Rated Output T…
