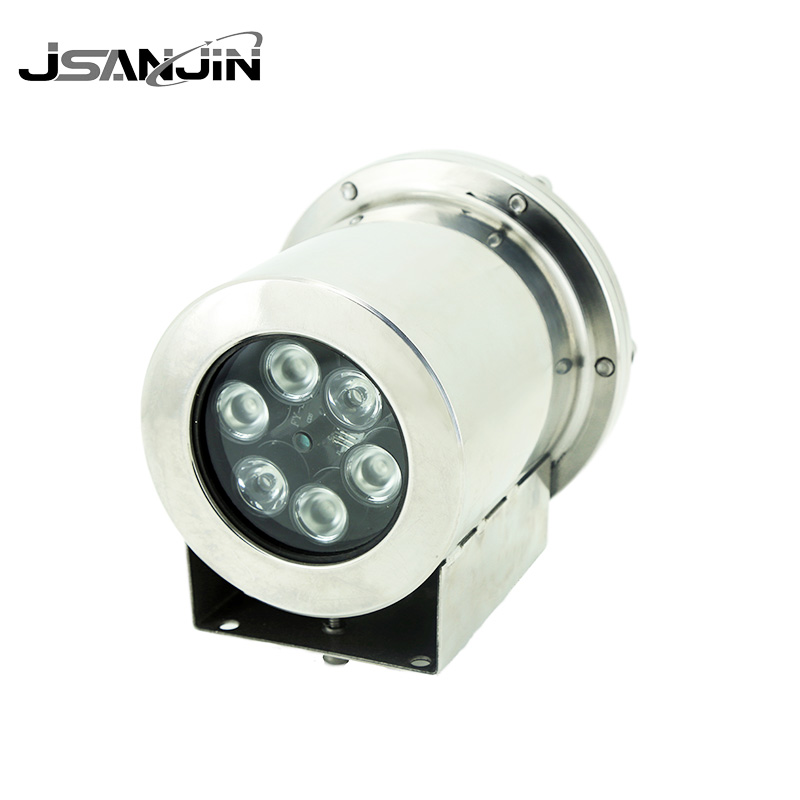

Industrial Explosion Proof Infrared Illuminator
The Industrial Explosion Proof Infrared Illuminator is a robust lighting solution engineered for Class II hazardous areas where flammable gases, vapors, or dusts are present. Designed to complement explosion proof cctv systems, this illuminator provides high-intensity infrared radiation at 850 nm or 940 nm, enabling clear night-time and low-light imaging without drawing attention or causing glare. Its rugged stainless steel housing is rated IP66/IP68 and certified with Ex d IIC T6 and Ex tb IIIC T80°C, ensuring reliable operation in oil refineries, chemical plants, paint booths, grain silos, and offshore platforms. The illuminator features an array of high-efficiency LED chips with a total optical power of up to 10 W, delivering an effective irradiation distance of 80–120 meters depending on the lens configuration. The beam angle is adjustable from 30° (spot) to 90° (flood), offering flexible coverage for both long-range corridors and wide-area perimeters. An integrated photodiode…
