Low Power GNSS Antenna with Embedded Anti-Jamming

Website:

Low Power GNSS Antenna with Embedded Anti-Jamming

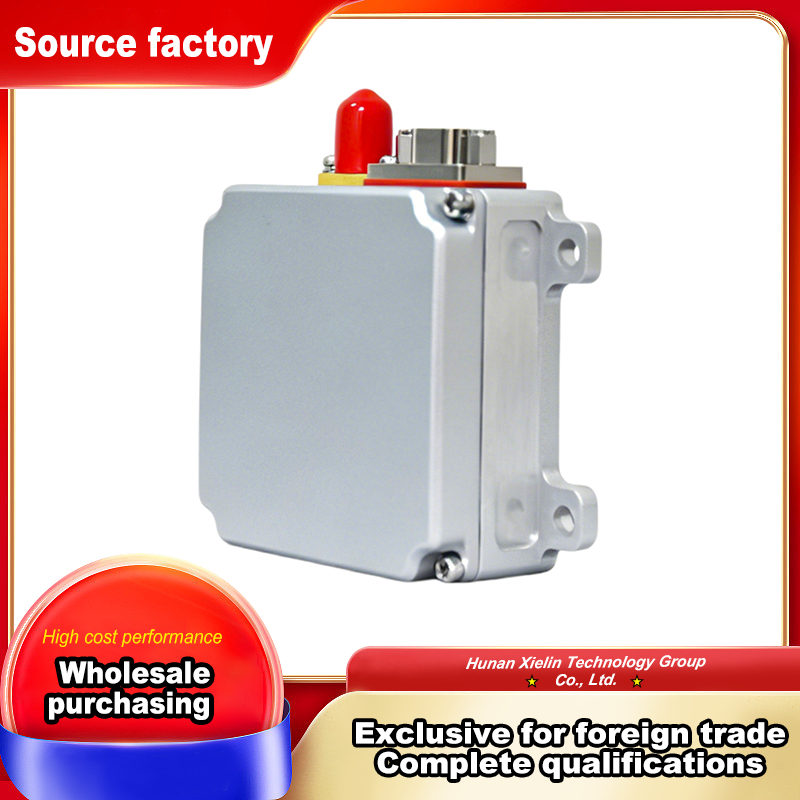

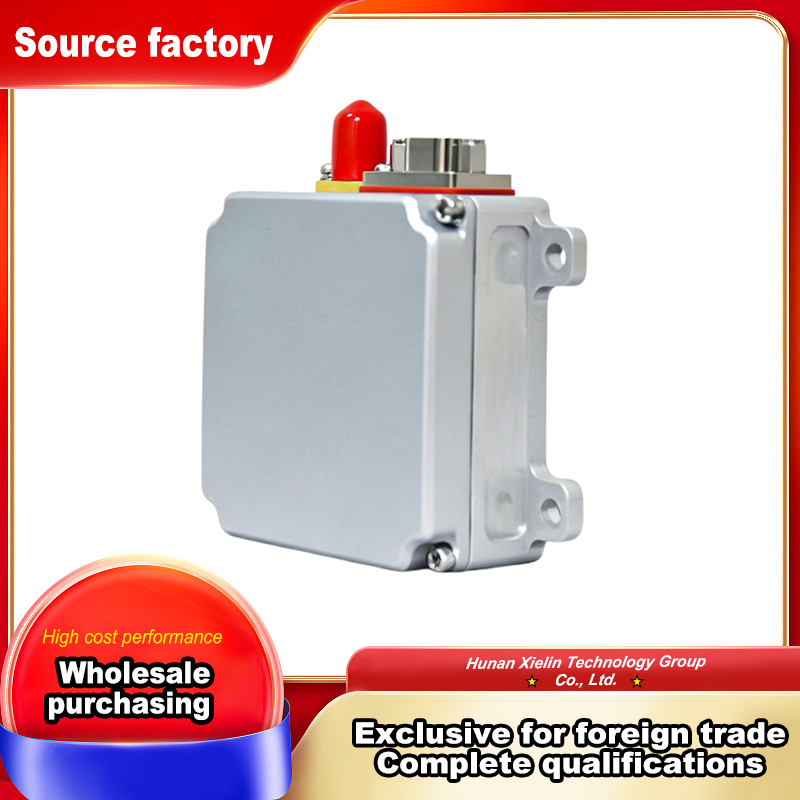

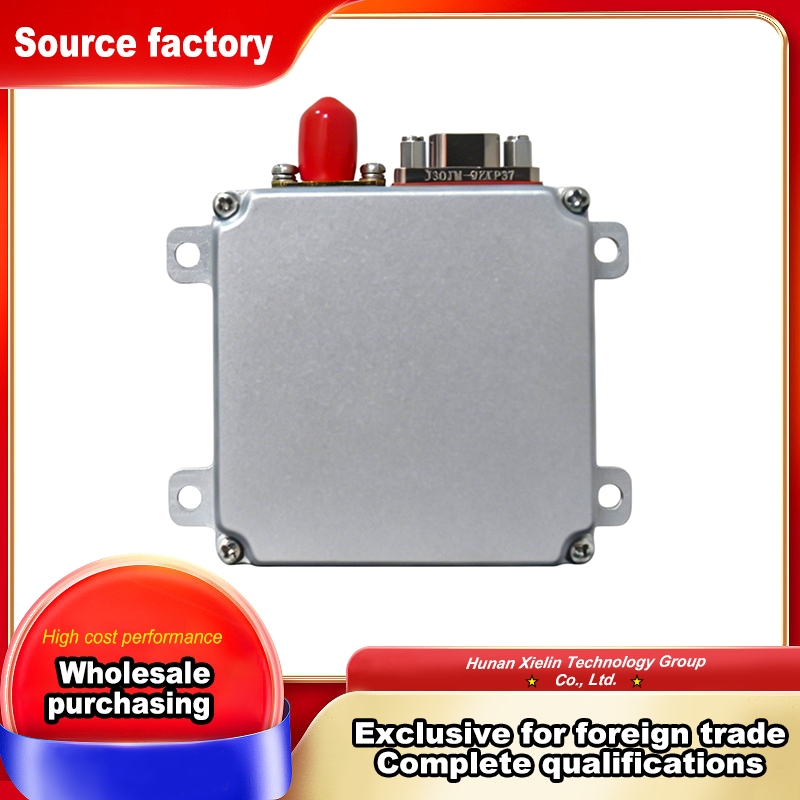

Model NCAJ-E4050 Low power satellite navigation antenna system is purpose-built for miniature UAV platforms in defense and public safety sectors. This four-element Pulse sweep interference resistant GNSS array receives Beidou B1, GPS L1 and Galileo E1 navigation signals. Designed as a Narrow broadband interference suppression antenna, it delivers stable positioning under complex electromagnetic surroundings. This Embedded Anti Jamming Antenna mitigates narrowband, broadband, sweeping, pulse and composite jamming from up to three separate directions. Integrated with a built-in receiver, the GPS Anti Jamming Antenna outputs anti-interference positioning data and processed RF signals. Measuring 50×50×21.5mm and weighing ≤120g, the compact Navigation Antenna consumes below 4W normally and peaks at 6W under interference. It operates on DC9V~36V within -40℃~+70℃, equipped with J30J-9ZK and SMA interfaces. Equipped with self-developed anti-jamming algorithms, our company realizes full-c…
