Multi-Constellation Embedded GNSS Antenna with RF Output

Website:

Multi-Constellation Embedded GNSS Antenna with RF Output

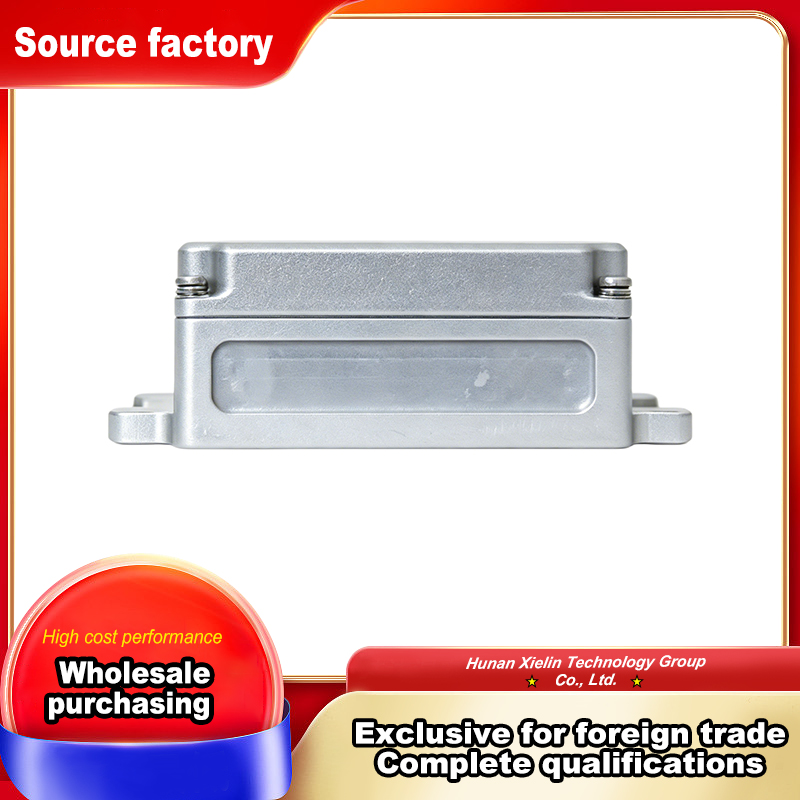

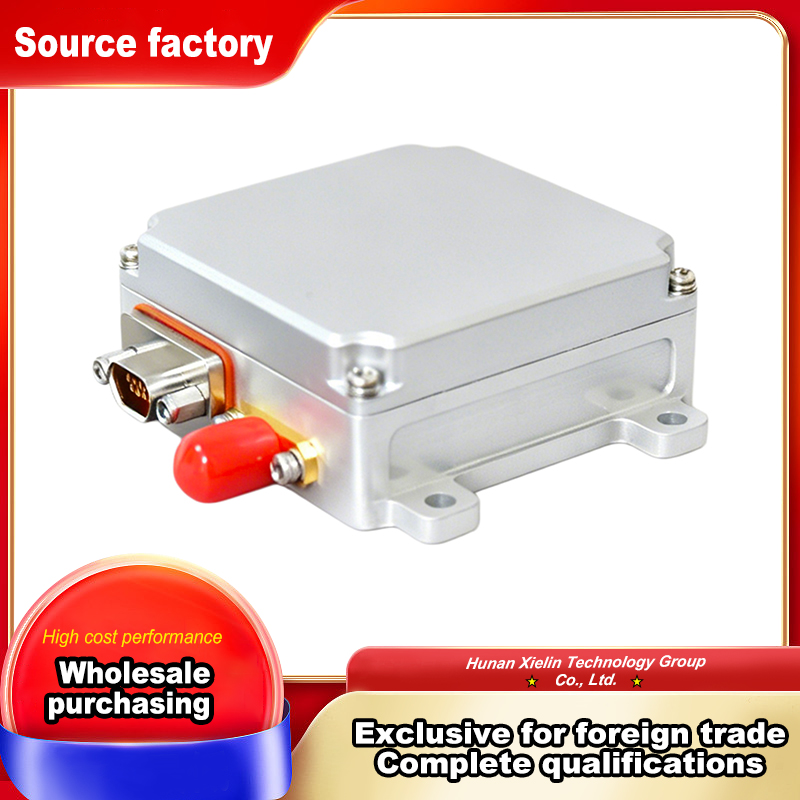

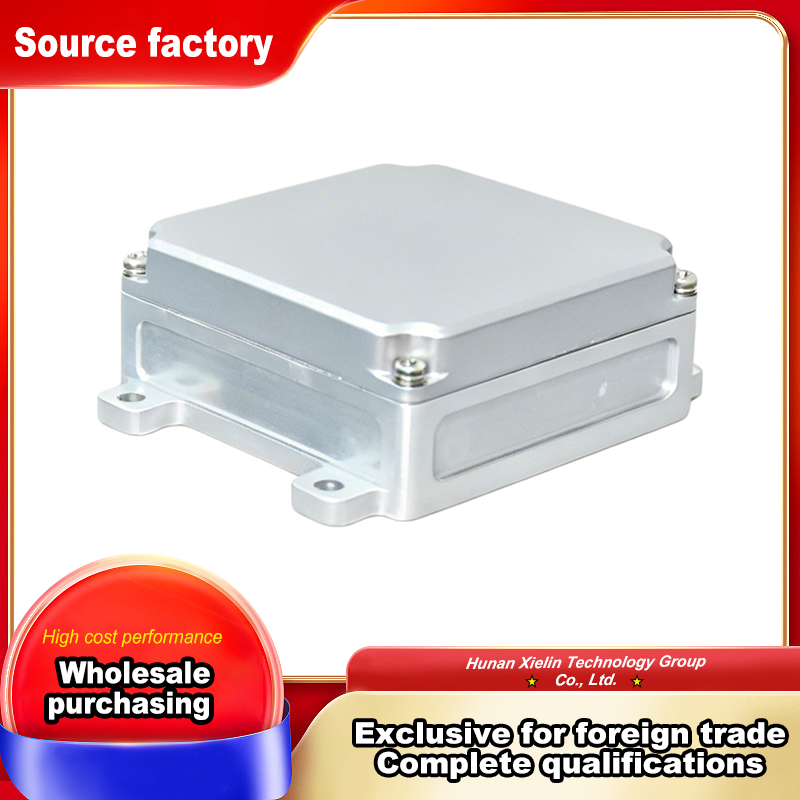

Model NCAJ-E4050 Multi band GNSS anti jamming antenna is engineered specifically for miniature UAV platforms in defense and public safety applications. This High precision UAV GNSS antenna module adopts a compact four-element layout and supports signal reception of Beidou B1, GPS L1 and Galileo E1 frequency bands. As an RF output embedded anti-jamming antenna, it integrates an internal receiver to deliver optimized positioning data and processed radio frequency signals simultaneously. Functioning as an Embedded Anti Jamming Antenna, it effectively mitigates narrowband, broadband, sweeping, pulse and composite suppression interference, coping with up to three interference sources from separate directions. The GPS Anti Jamming Antenna measures 50×50×21.5mm with weight below 120g. This Navigation Antenna consumes ≤4W under normal conditions and peaks at 6W in interference environments, operating reliably between -40℃ and +70℃ with DC9V~36V input, equipped with J30J-9ZK and SMA interfa…
