Wide Composite Interference Rejection Antenna for Micro UAVs

Website:

Wide Composite Interference Rejection Antenna for Micro UAVs

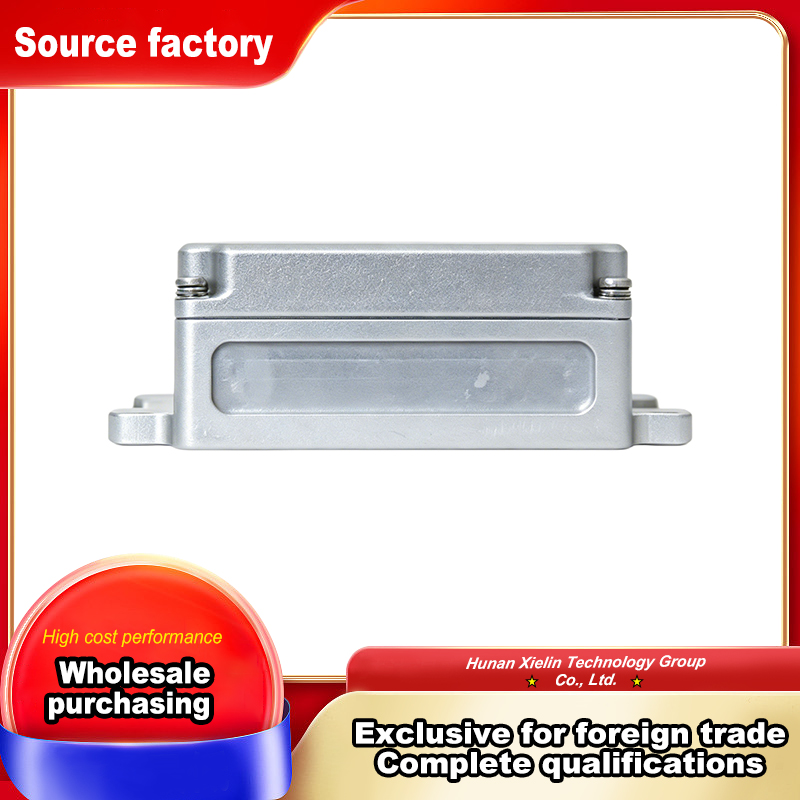

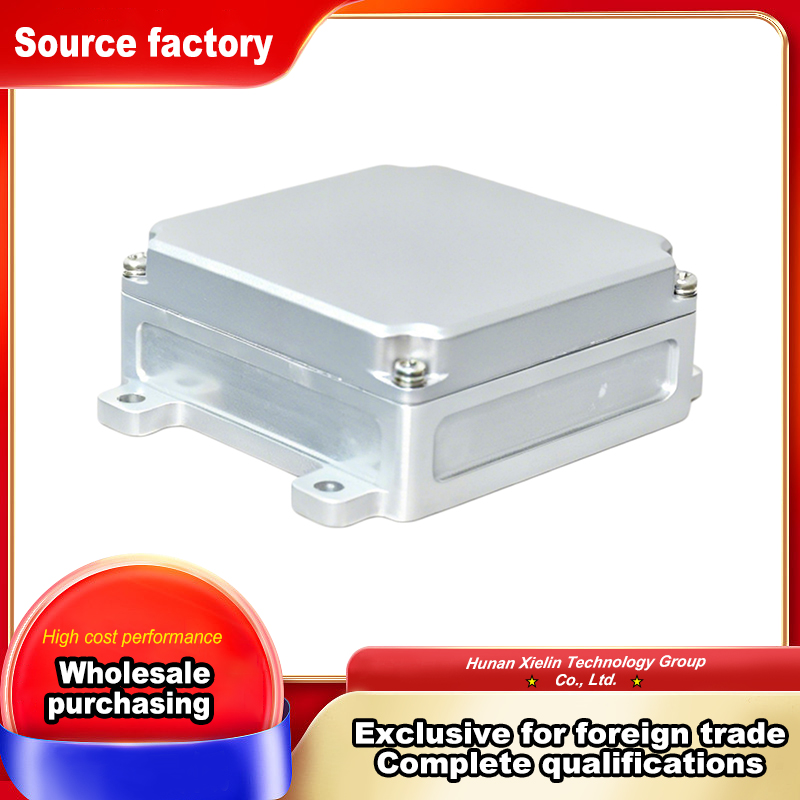

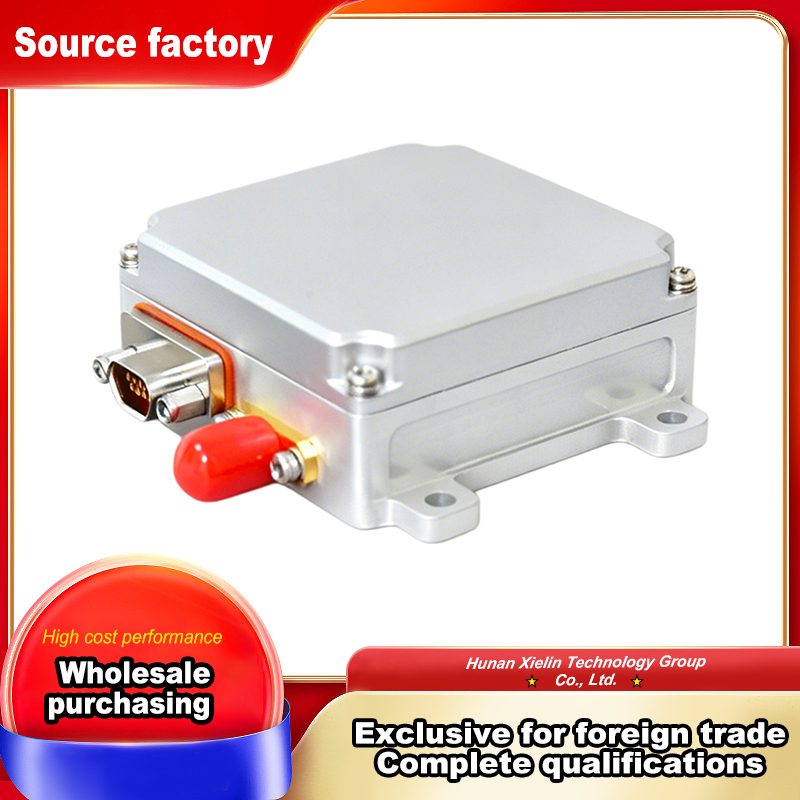

Model NCAJ-E4050 Quad-element GNSS anti-interference array unit is engineered to meet anti-jamming navigation requirements of miniature UAVs for defense and public safety. As professional Low weight micro UAV navigation hardware, it supports signal reception of Beidou B1, GPS L1 and Galileo E1 bands. This Wide composite interference rejection antenna delivers reliable positioning under complex electromagnetic environments. Serving as an Embedded Anti Jamming Antenna, it suppresses narrowband, broadband, sweep, pulse and combined jamming signals from up to three directions. The built-in receiver of this GPS Anti Jamming Antenna outputs processed positioning data and filtered RF signals. With dimensions of 50×50×21.5mm and weight ≤120g, the compact Navigation Antenna consumes maximum 4W under normal conditions and 6W in interference scenarios. It operates steadily within -40℃~+70℃ with DC9V~36V power supply, equipped with J30J-9ZK and SMA connectors. Backed by proprietary anti-jamm…
