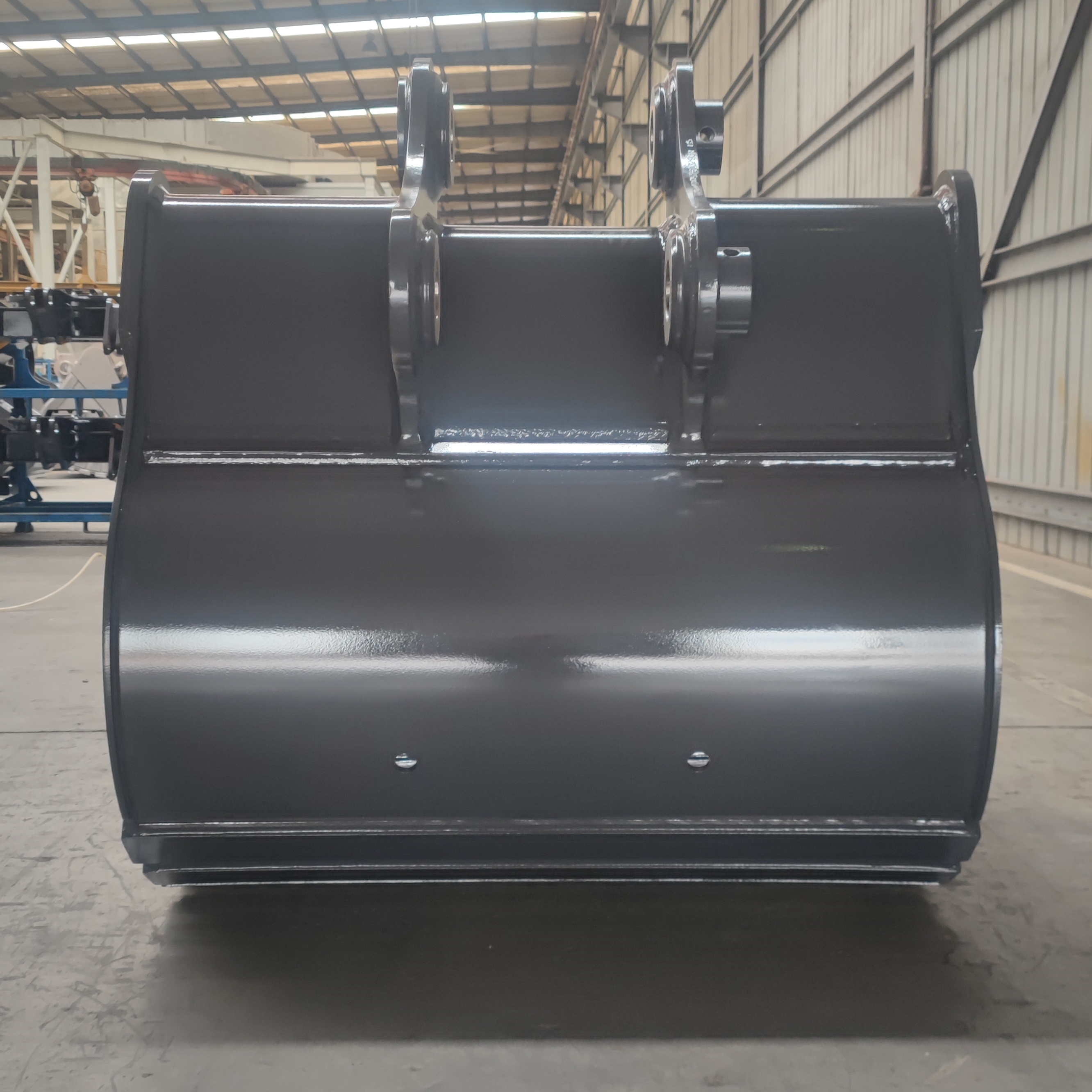

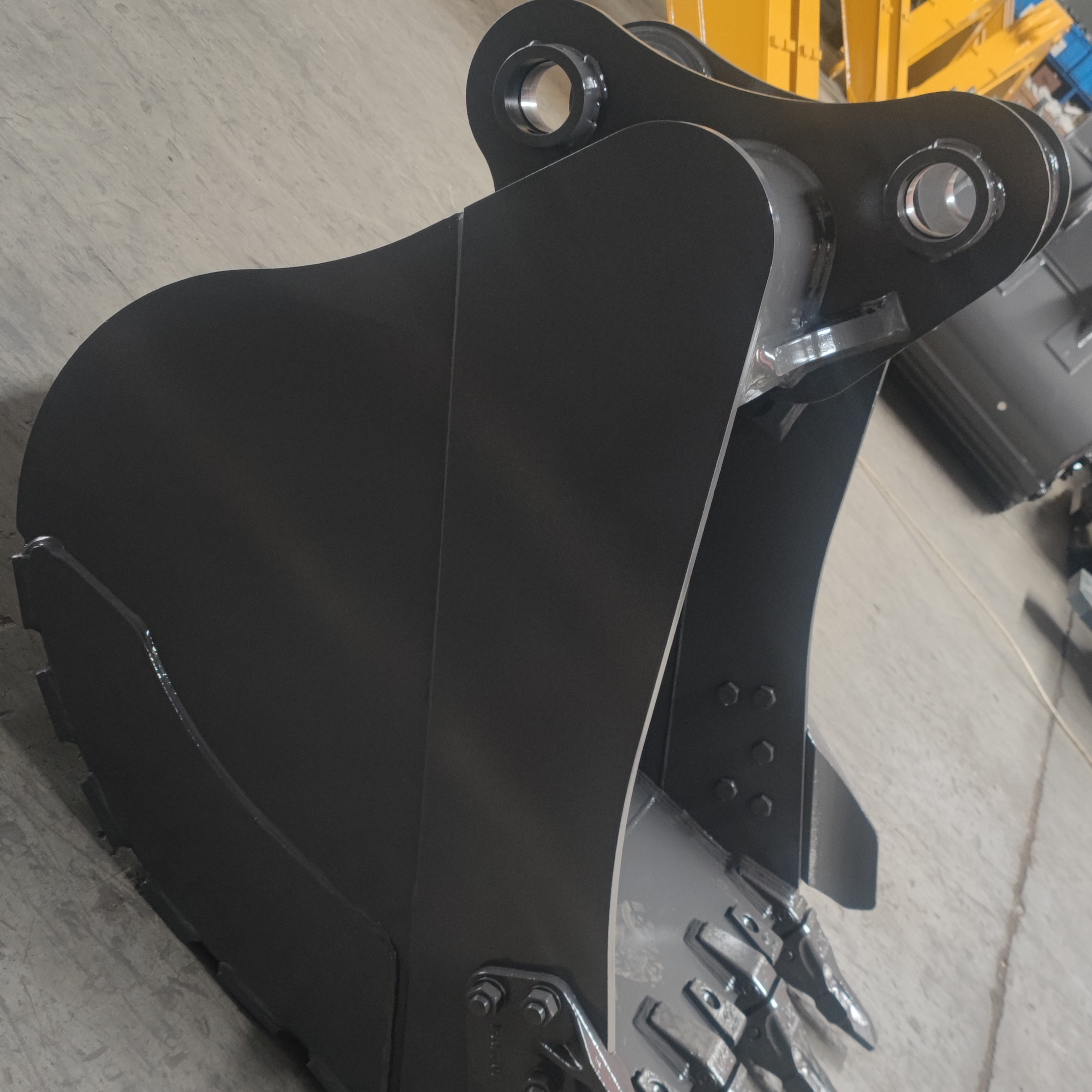

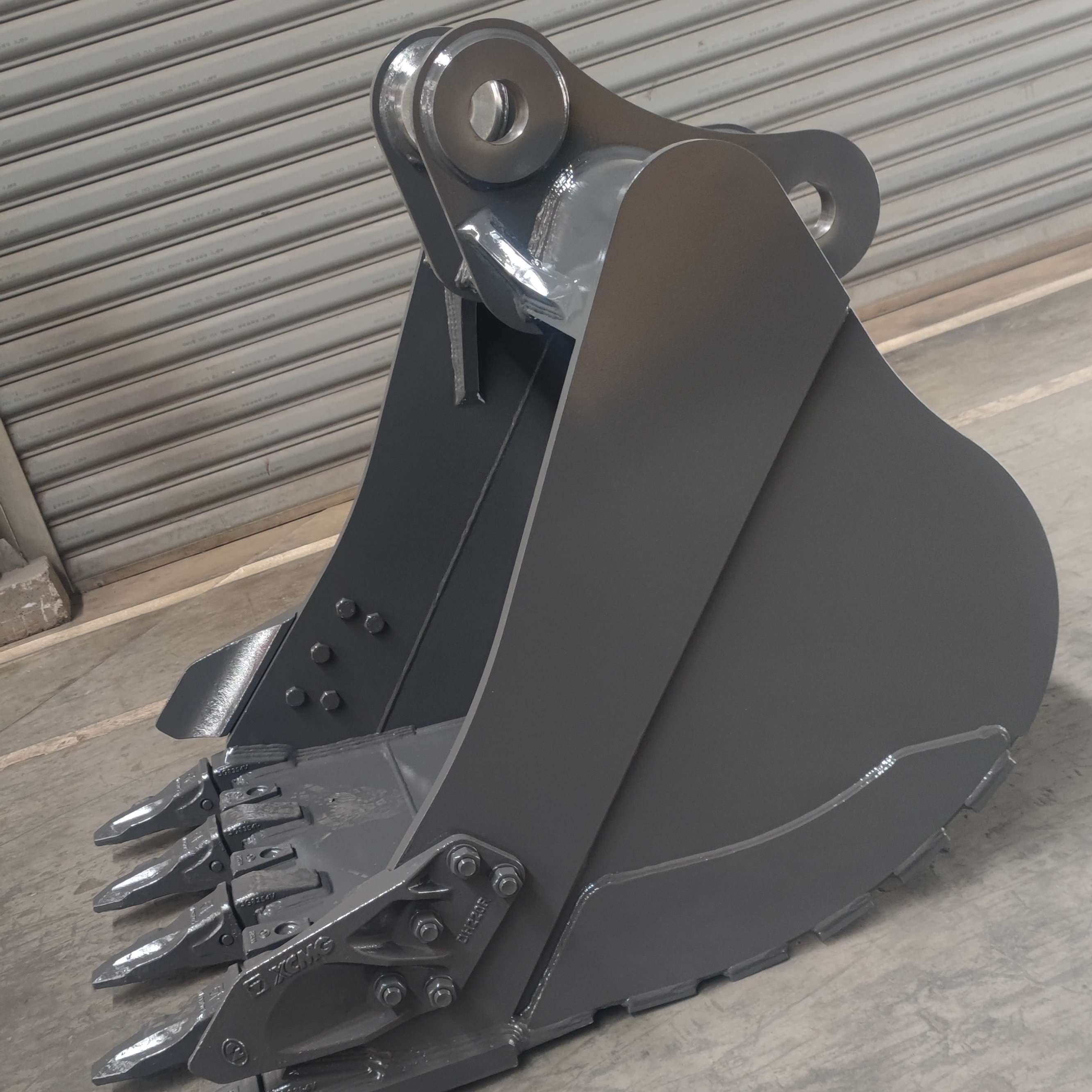

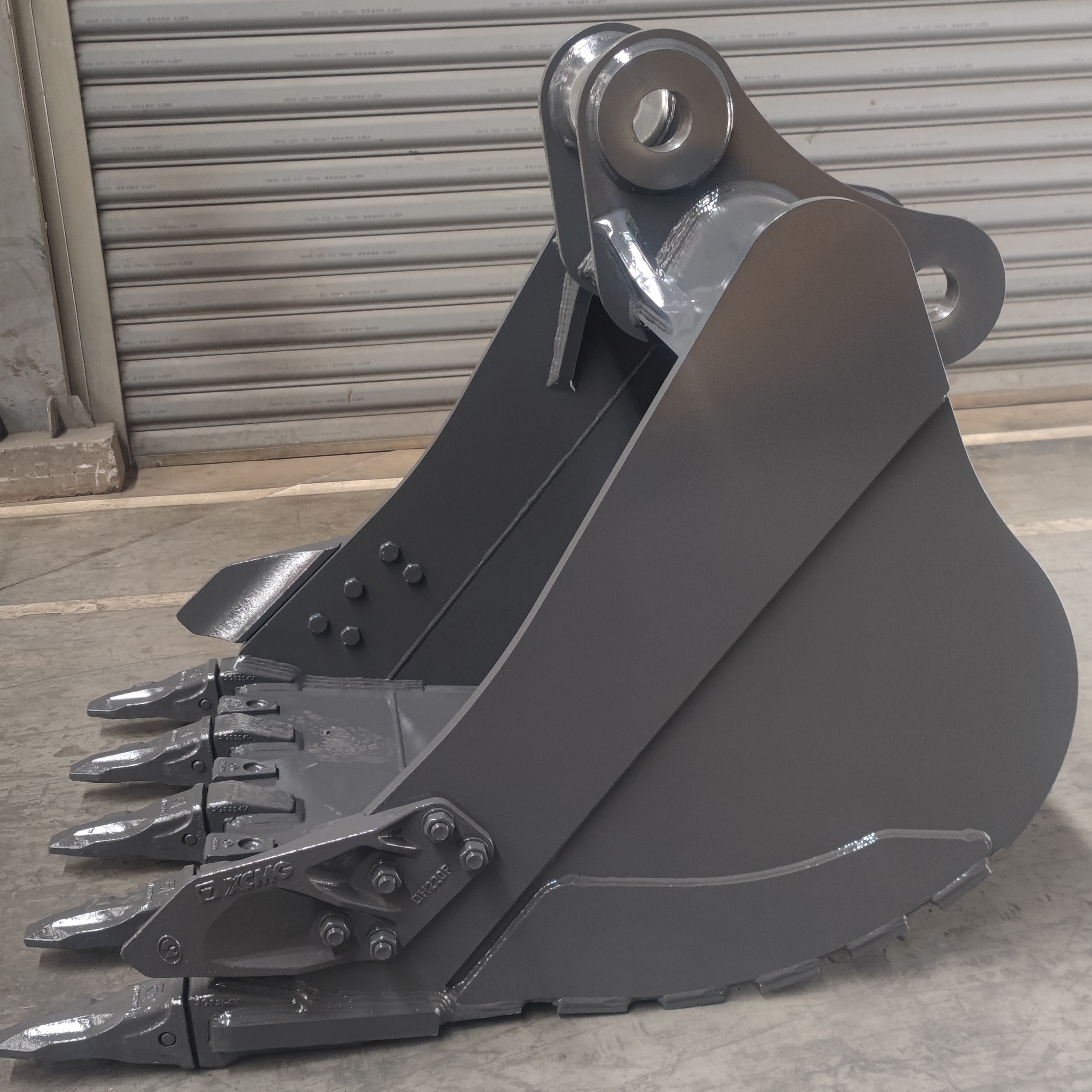

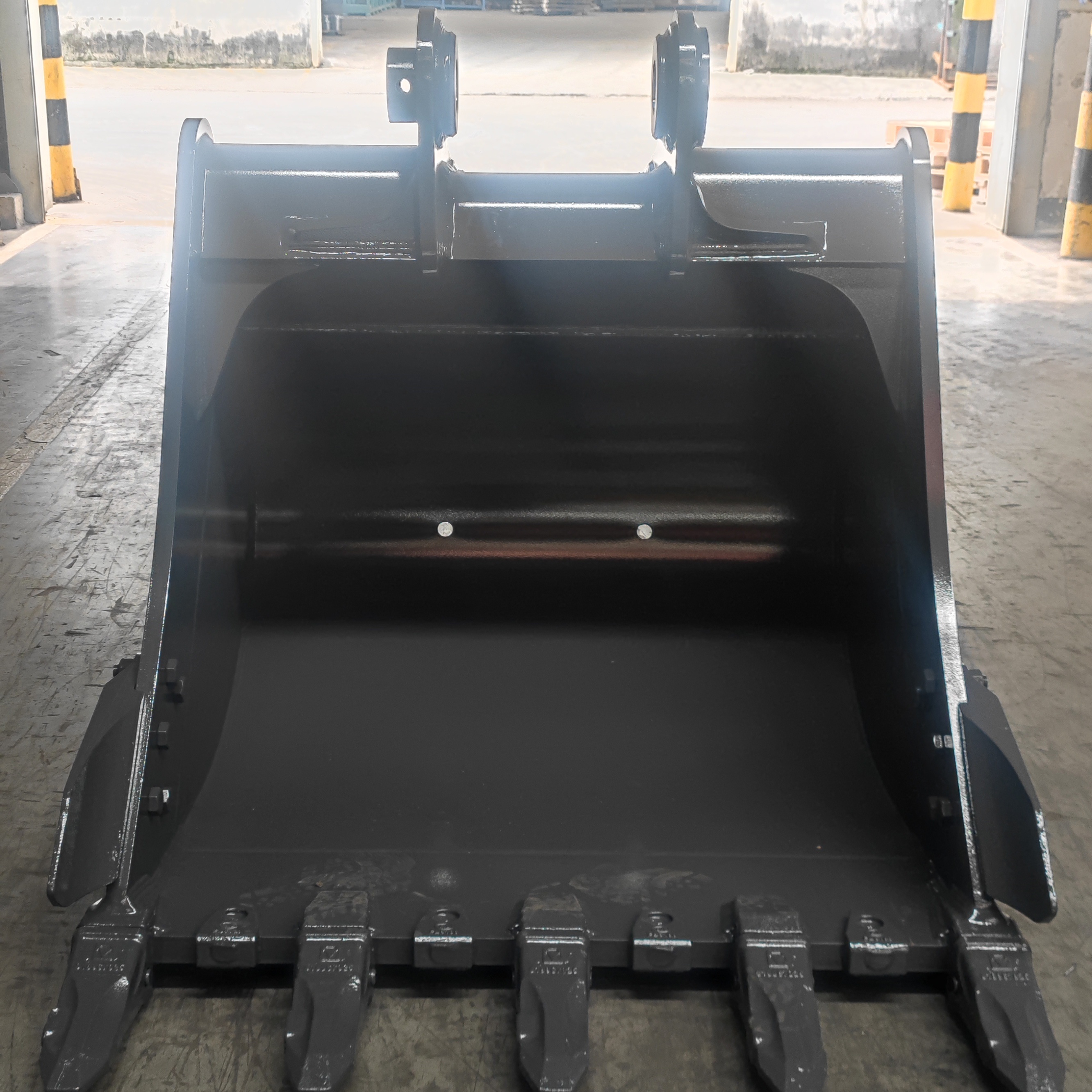

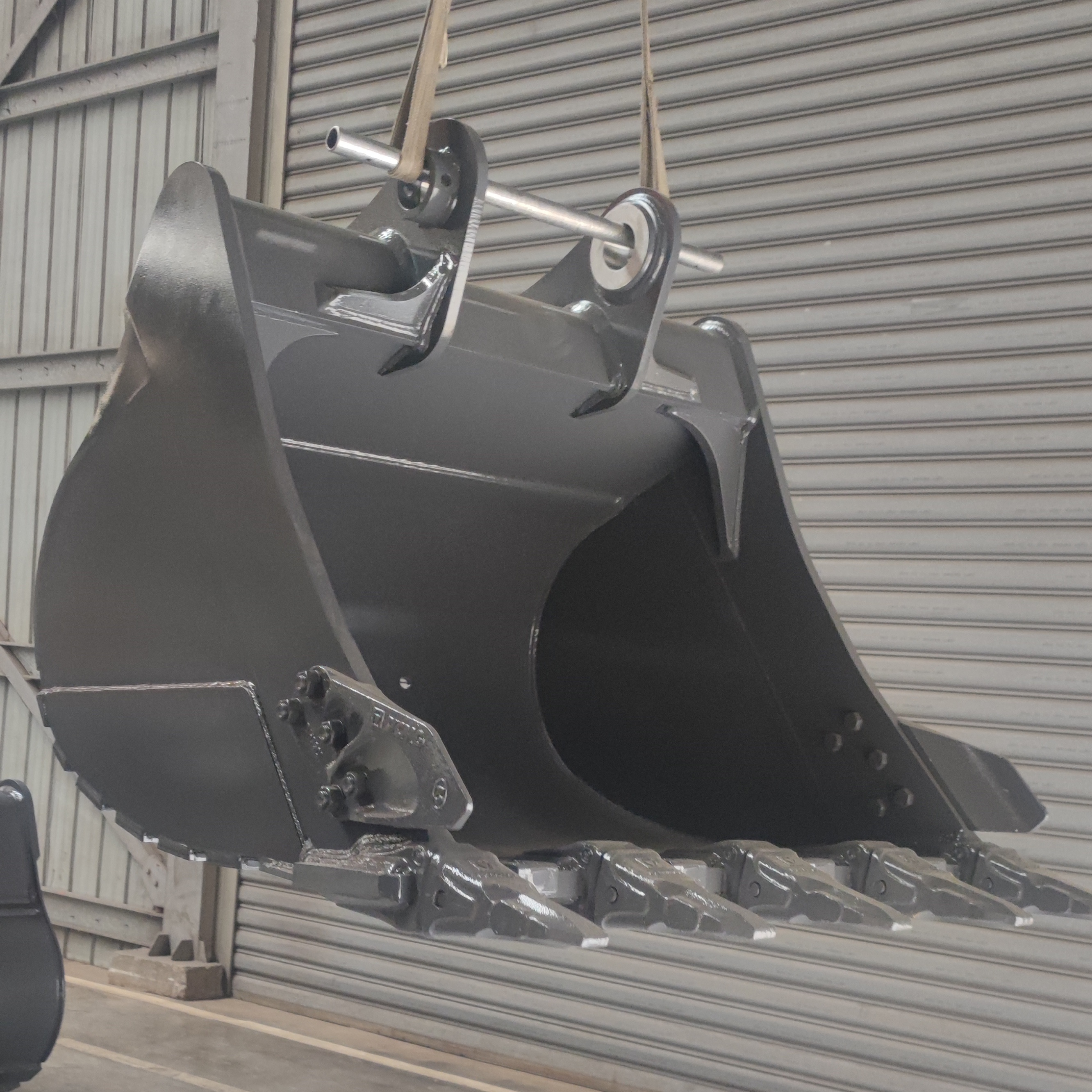

20 ton excavator bucket 1.0 cubic meter
Overview All mainstream 20-ton excavators can be equipped. The materials are three-component composite: WH60C, Q355B, NM400. The cutting plate is 40mm thick. The overall structure is strengthened, with high rigidity and good shock resistance. The standard configuration is J350 universal teeth, which can be equipped on any machine. It can handle earthwork, medium-hard soil, and soil with some gravel. It is stable, has few problems, and offers good value for money. Specifications model Bucket Types ton-class Bucket capacity(m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions 20T-1.0m³ Reinforced bucket 20 1 1304 WH60C Q355B NM400 40 Right-hand tooth DH220R Left-hand tooth DH220L Retaining ring J350-R Tooth pin J350-P Bucket tooth S1U3352RC-S Tooth adapter 3G8354V General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone. Production and processing technology…
