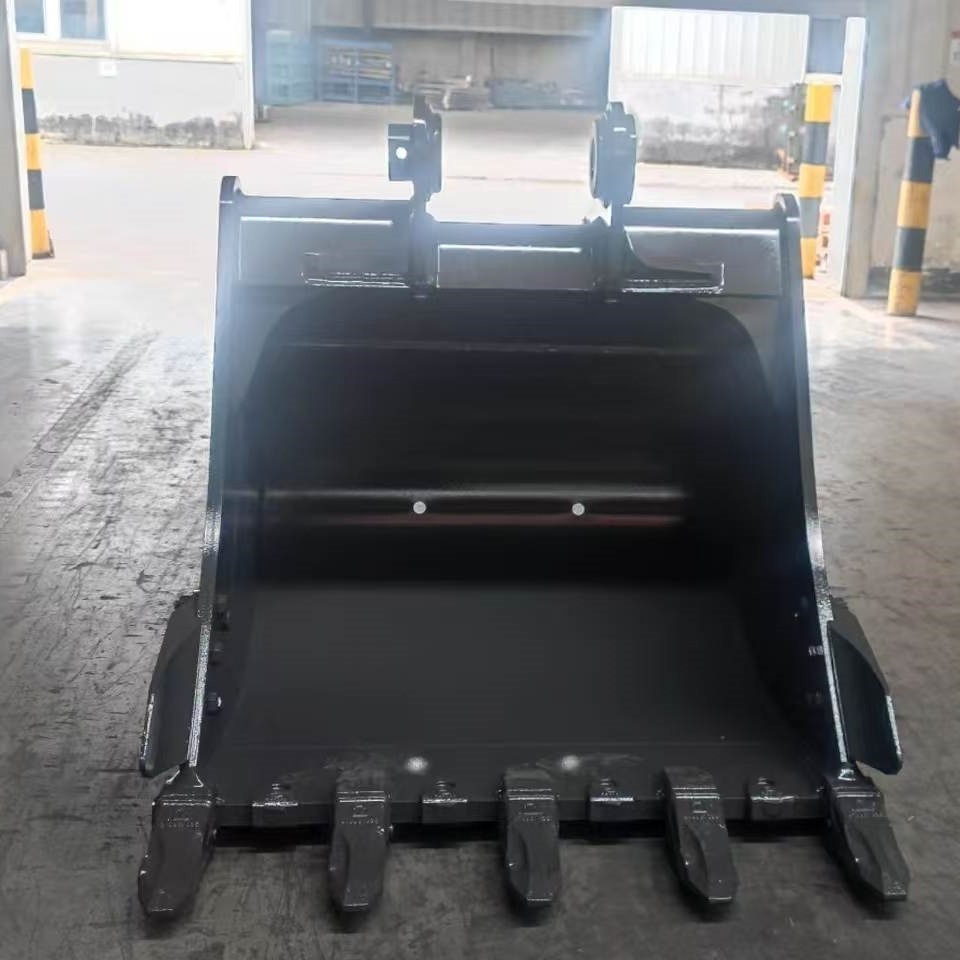

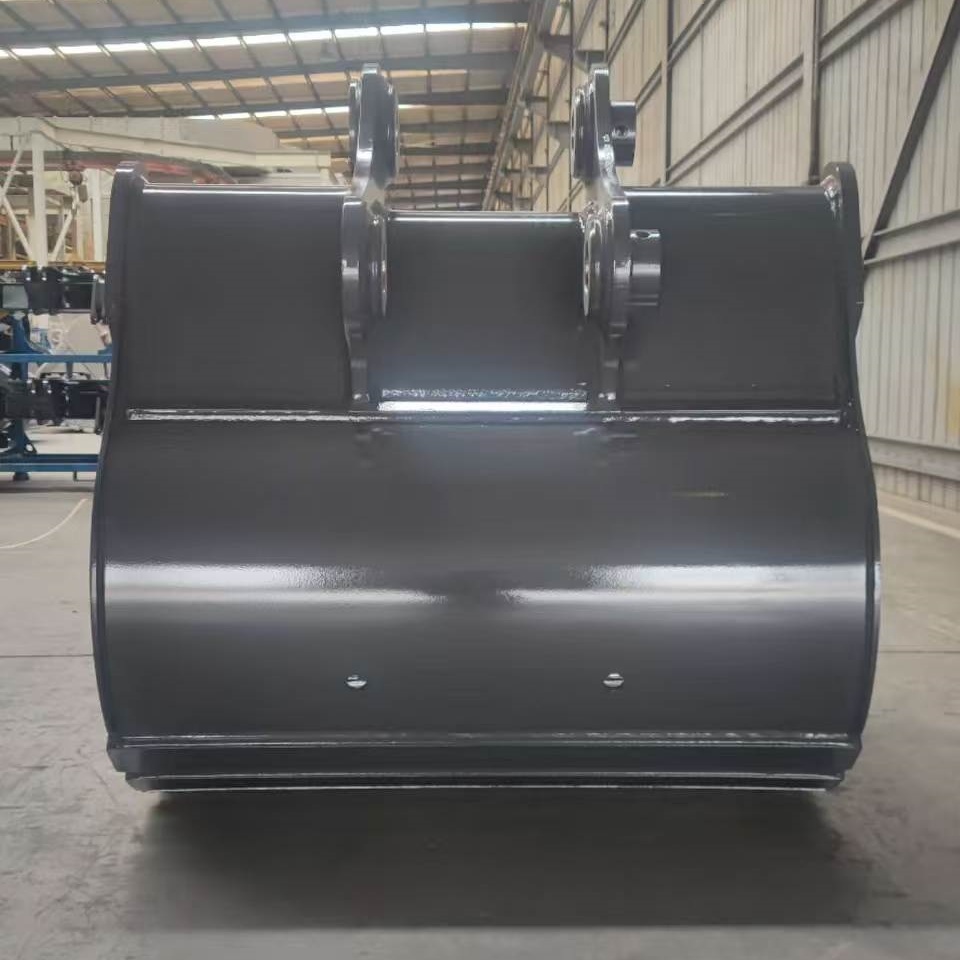

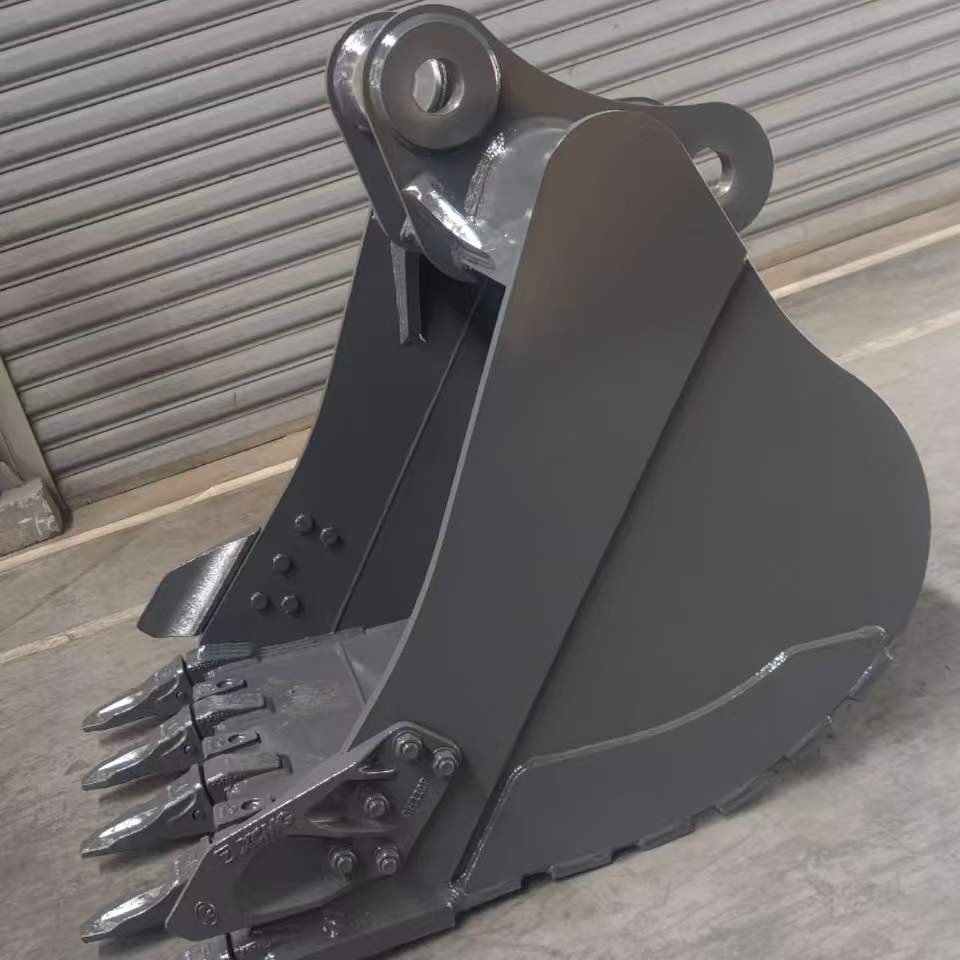

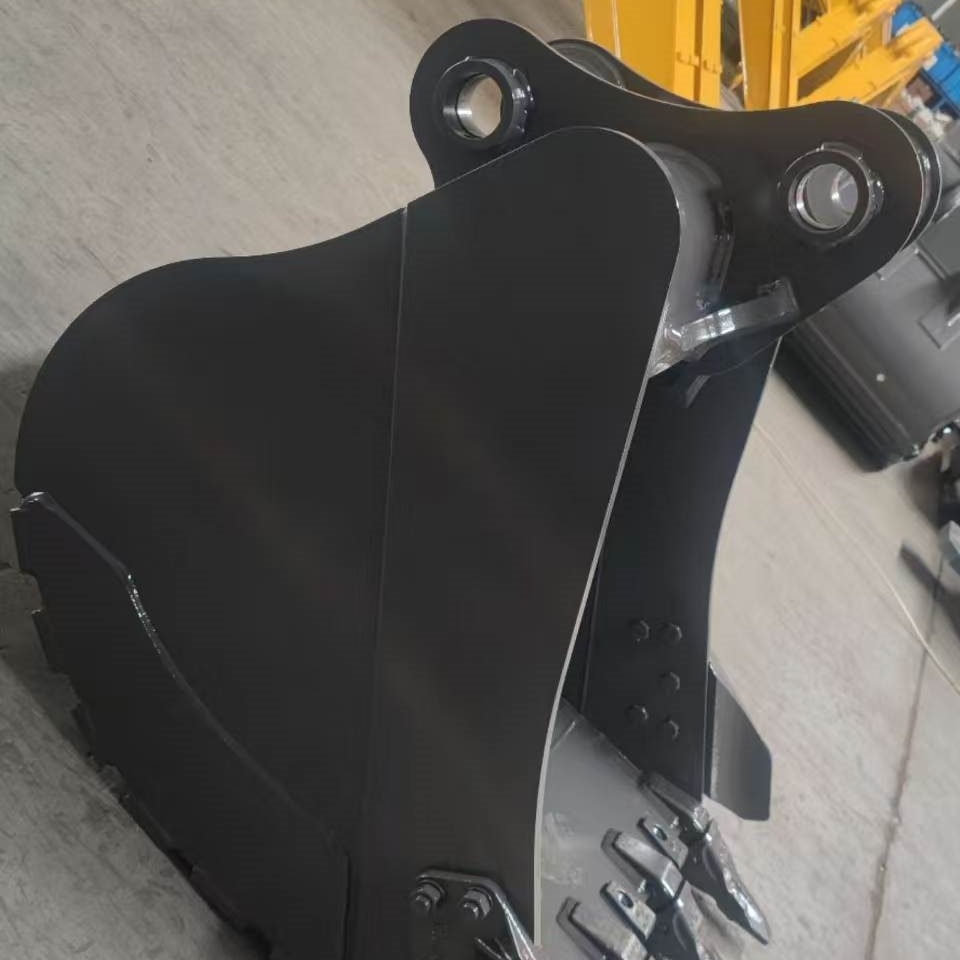

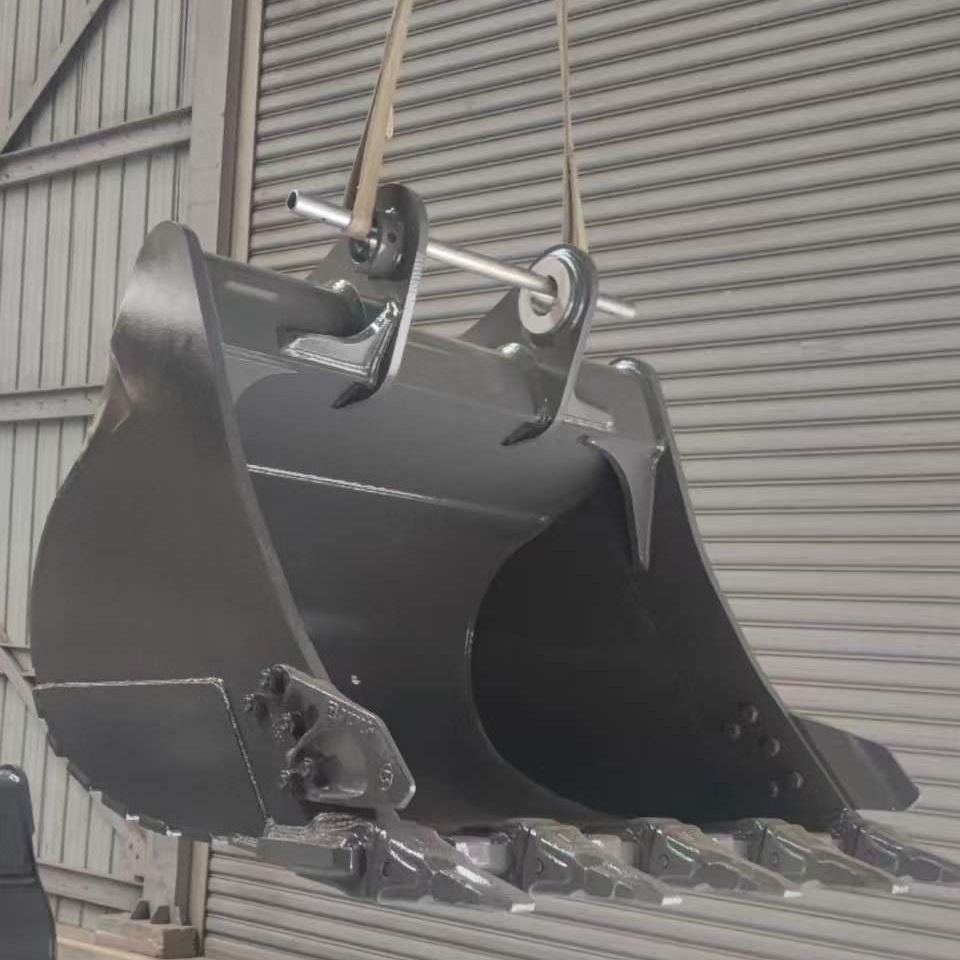

Standard Earthmoving Bucket for 20T, 1.0m³ Excavator
Overview The 20-ton standard bucket produced by Guoren Xifang has a bucket volume of 1.0 cubic meters. The materials are: WH60C high-strength steel, Q355B structural steel, NM400 wear-resistant steel, with a 40mm thick blade plate. The internal cavity has been optimized for better loading and unloading efficiency. It is mainly used for excavating and loading ordinary soil, sand, gravel and other loose materials. It is equipped with PC200 series GET wear-resistant parts, which have good market compatibility and low long-term maintenance costs. The ear plates, dimensions and colors can all be customized according to requirements. Specifications model Bucket Types ton-class Bucket capacity(m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions 20T-1.0m³ Earthmoving bucket 20 1 1301.1 WH60C Q355B NM400 40 Left-side tooth: DH220L Right-side tooth: DH220R Retaining clip : PC200R Pin: PC200 PIN Tooth point : 20…
