13 Ton Reinforced Excavator Bucket for PC130 / CAT 313

Website:

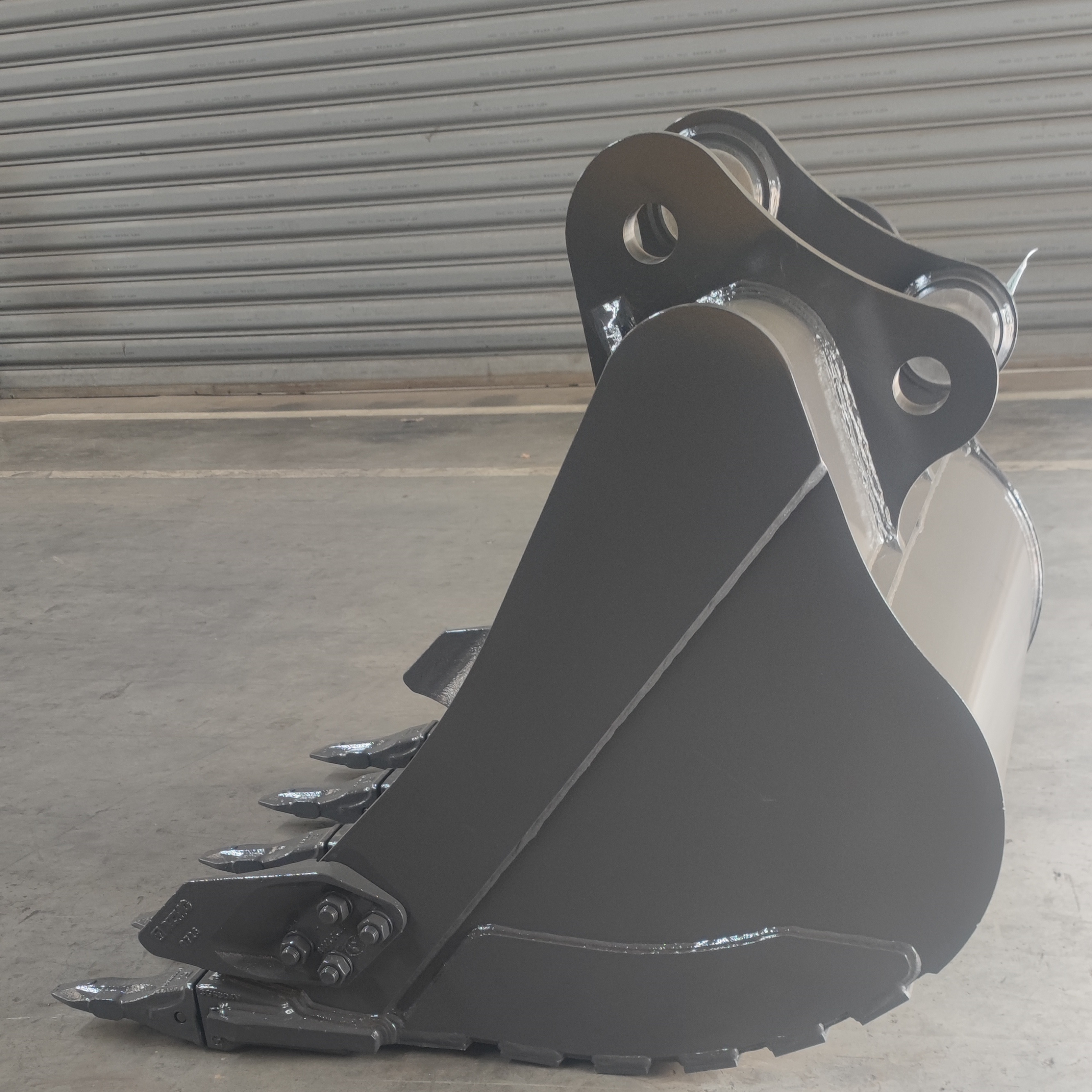

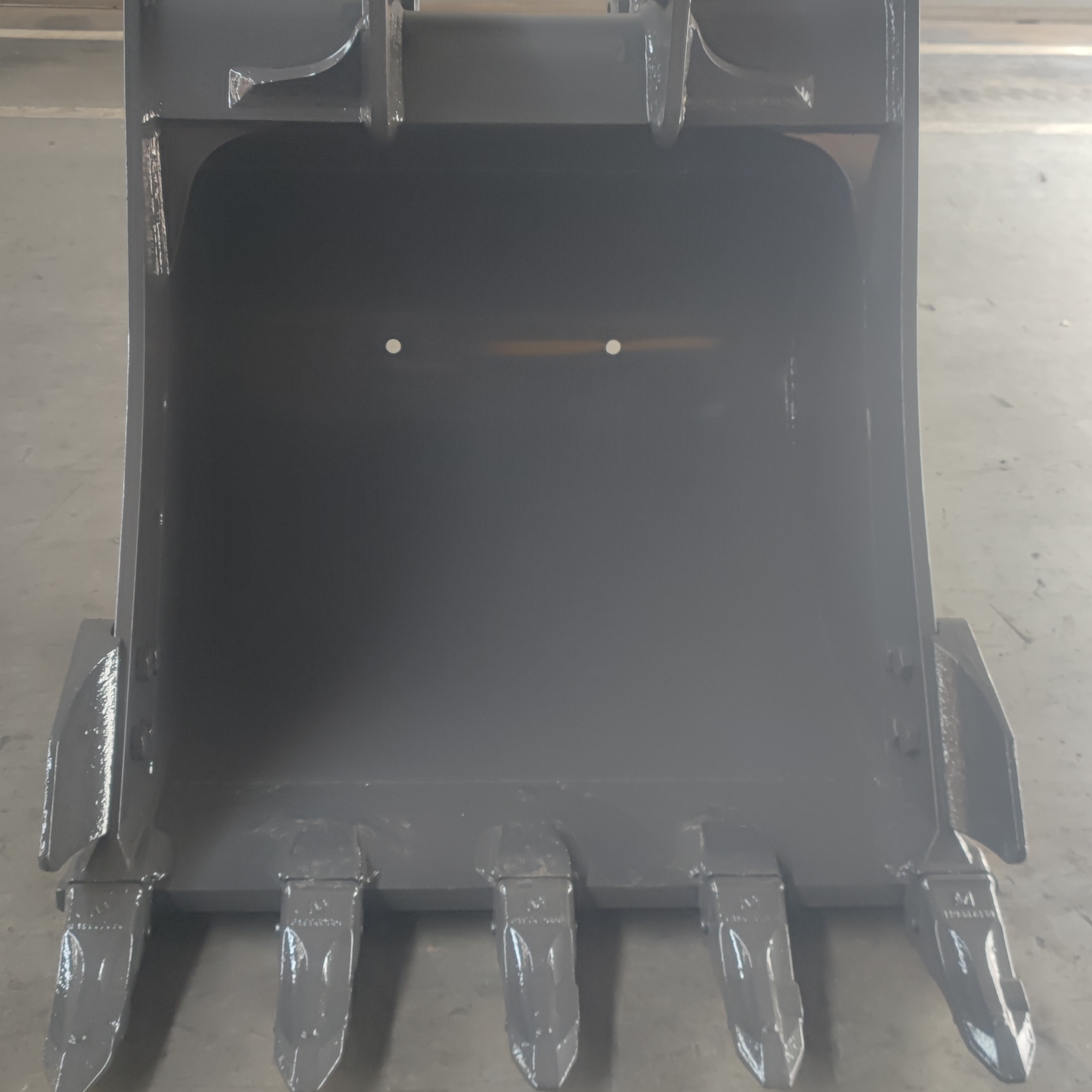

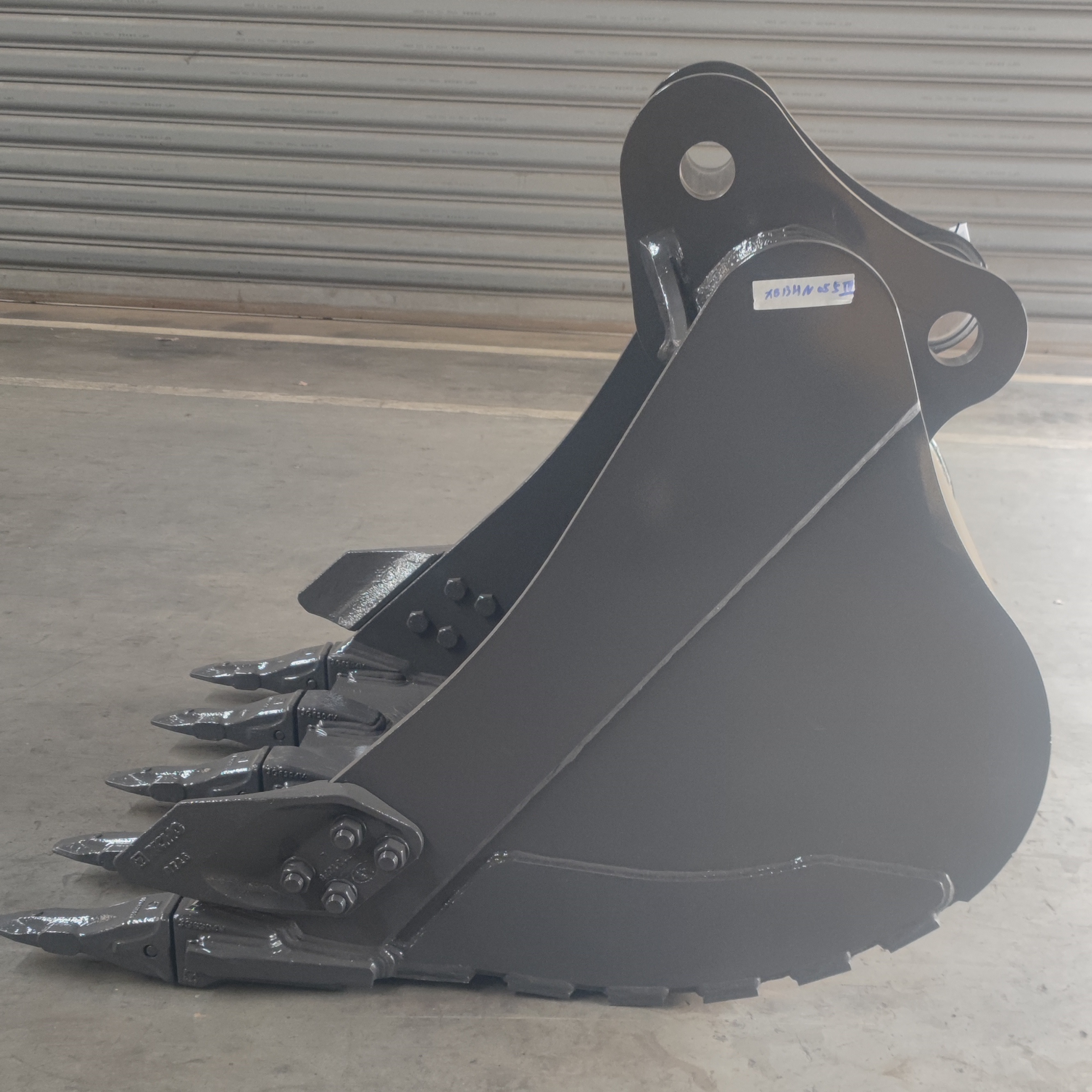

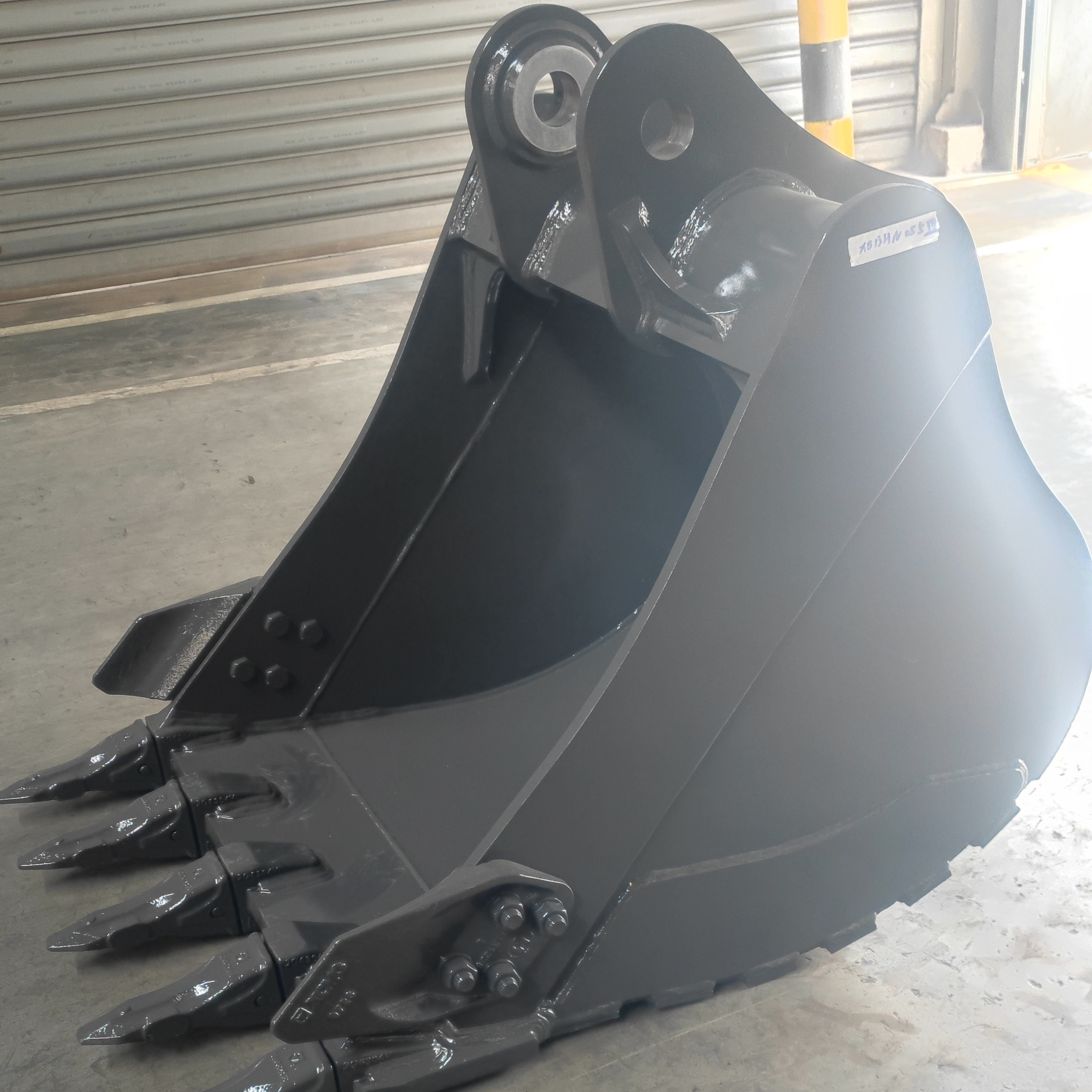

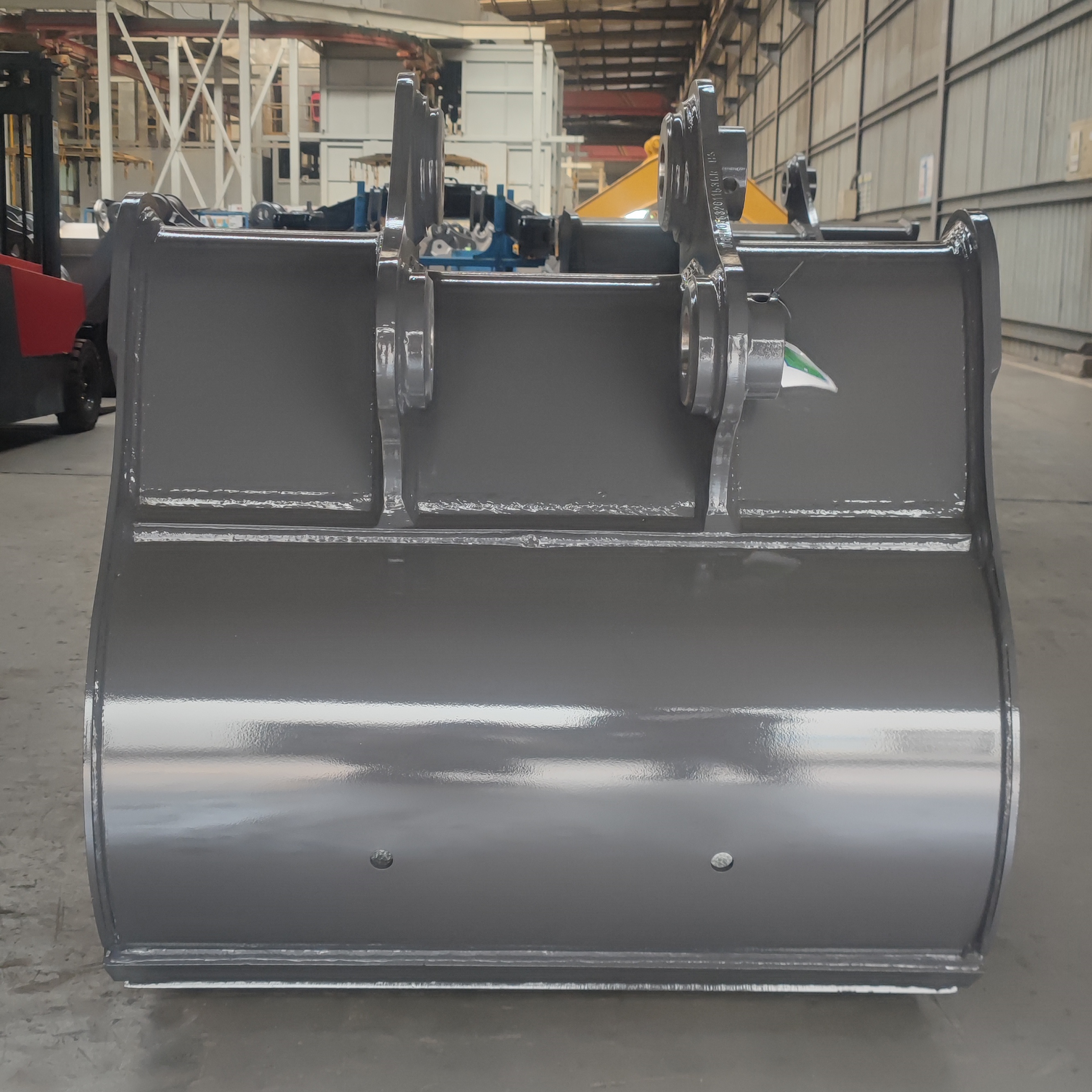

13 Ton Reinforced Excavator Bucket for PC130 / CAT 313

Overview A 13-ton machine-specific reinforced bucket with a capacity of 0.55 cubic meters and a width of 1040mm. It can be used by Komatsu PC130, Caterpillar 313, Sany SY135, and XCMG XE135. This is a reinforced standard design. It can handle general earthwork, medium-hard soil, and mixed soil with a small amount of gravel. The balance between cost-effectiveness and durability is good. It is cost-effective for small and medium-sized earthwork and municipal projects. Specifications   Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings / Wear Parts 13T-0.55m³ Reinforced bucket 13 0.55 1040 WH60C Q355B NM400 Left-side tooth 2713-1228L Left-side tooth 2713-1228R J300 retaining pin 8E6259 J300 tooth pin 9J-2308 Rock bucket tooth 1U3302RC-N Tooth adapter 3G6304V (30mm) General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone.   Product Performance Advant…
