PAP-04V-S to PALR-04VF terminal cable

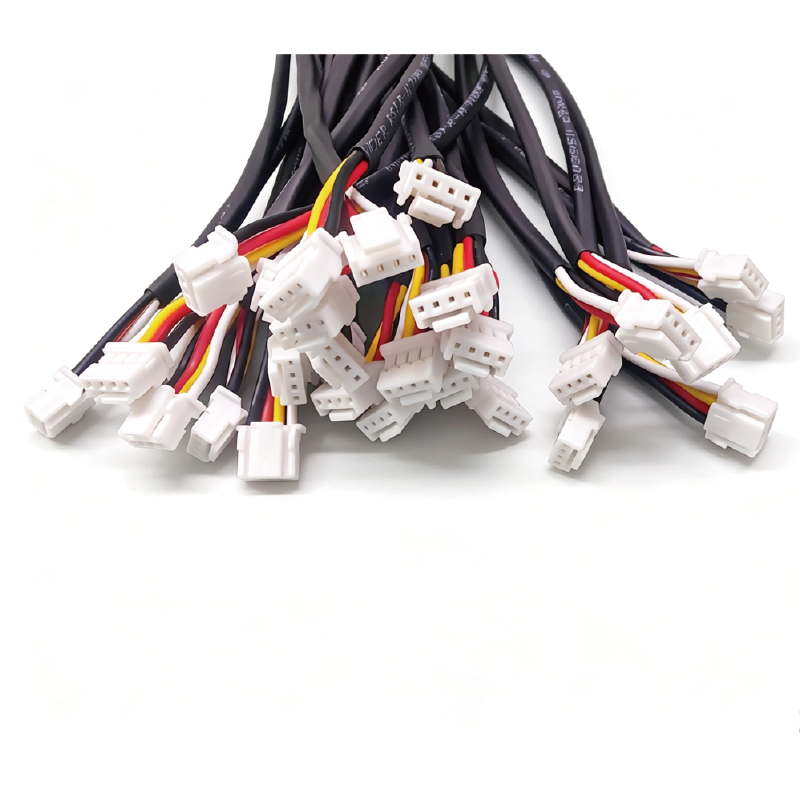

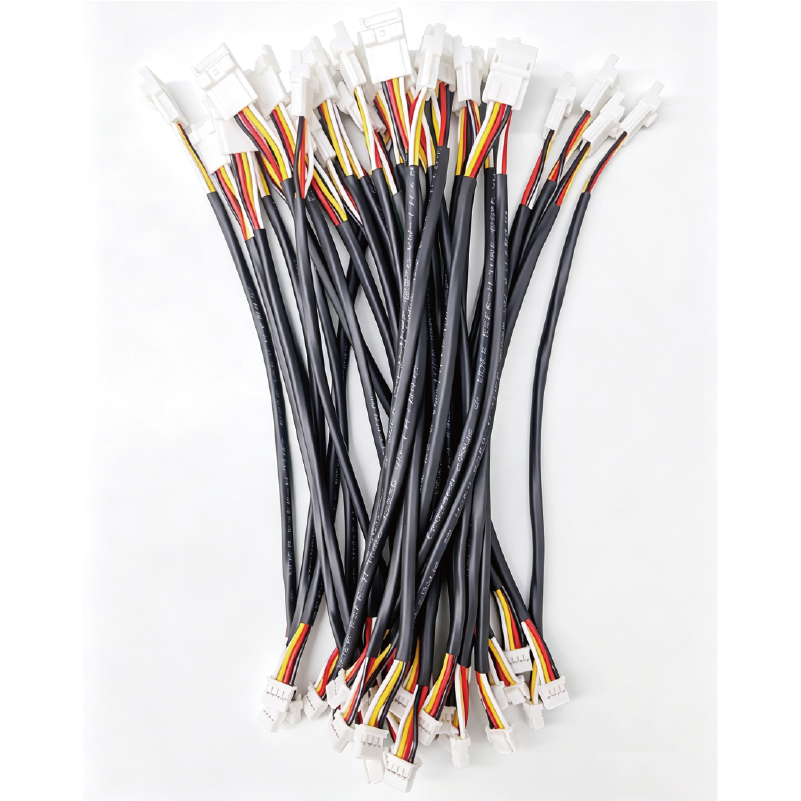

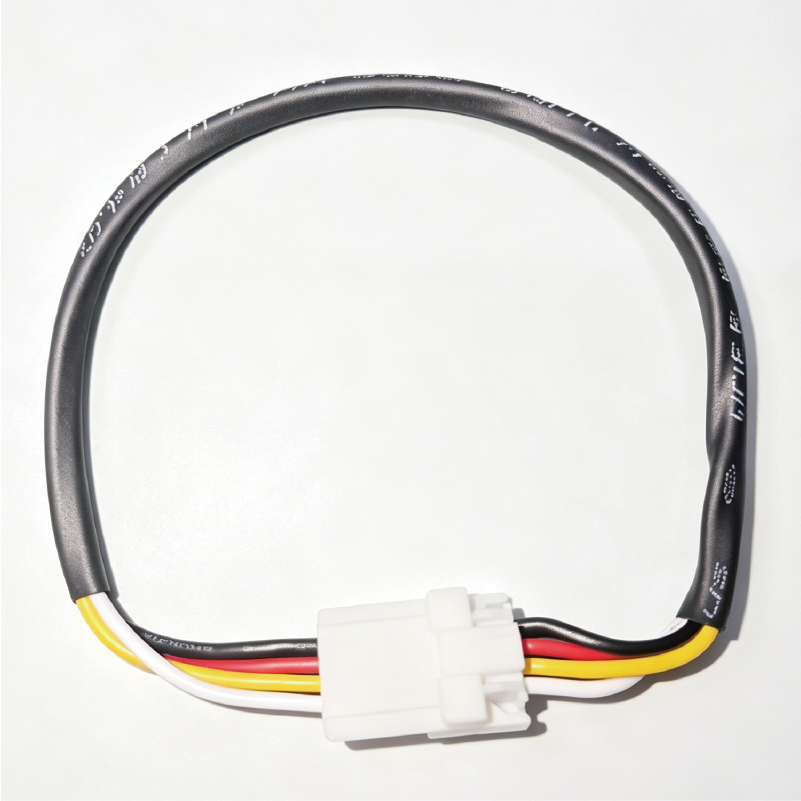

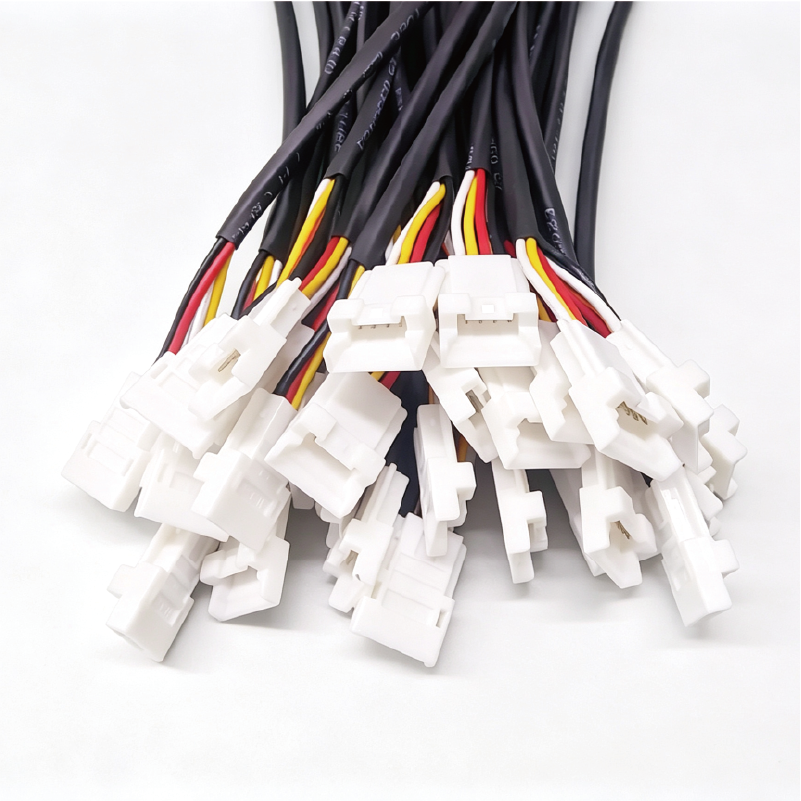

PAP-04V-S to PALR-04VF Terminal Cable   This lead joins a JST PA-series board housing to a matching wire-to-wire plug, both 4-position with a 2.0 mm pitch. One end is PAP-04V-S, the top-entry socket housing that clicks onto a PCB header; the other is PALR-04VF, the PAL plug carrying a locking slide. Between them sit four crimped copper cores, cut, stripped and terminated to the ordered length. Racked in a pack it works as a ‌battery module wiring harness‌, tapping cell voltage and temperature from a sampling board to the BMS input. Handled daily it behaves as a ‌storage battery cable assembly‌, surviving repeated connect and disconnect during cabinet maintenance. Looped between sub-assemblies it is a ‌power pack connecting harness‌, holding pack-side and system-side units together with a latch that does not shake loose. Because both ends are crimped in house, one drawing also becomes a ‌customized dual head terminal cable‌ — unequal leg lengths, printed cores, sleeving or a mixed pin-o…
