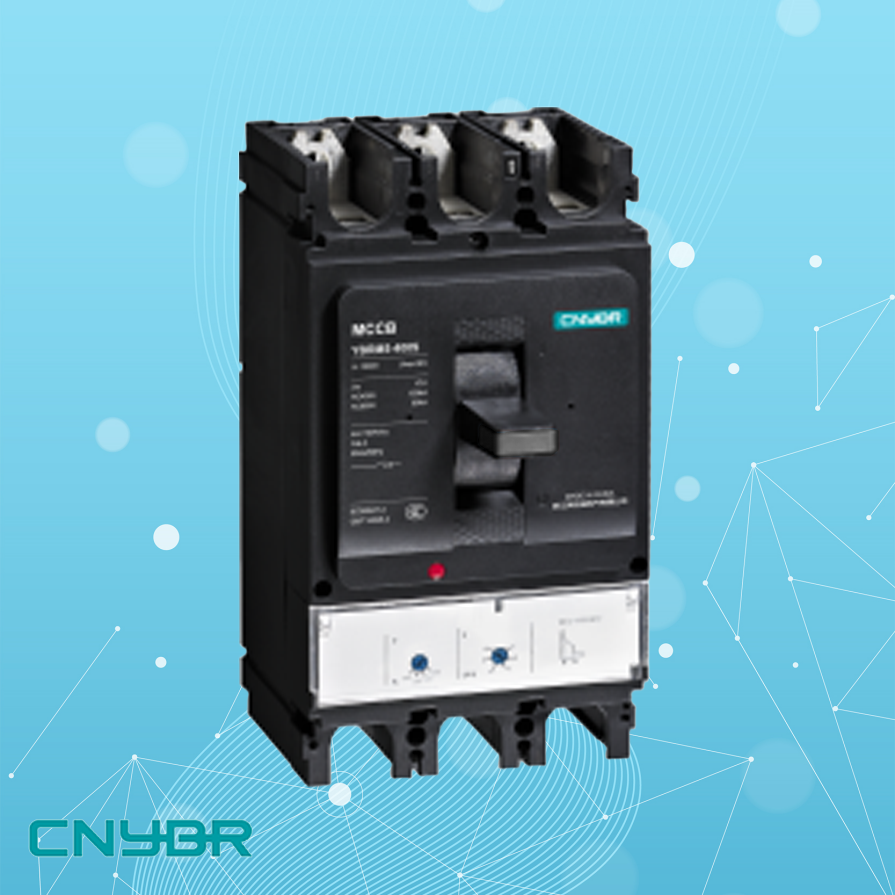

Adaptation Molded Case Breaker: YBRM5-400 Circuit

Adaptation Molded Case Breaker: YBRM5-400 Circuit

The number of poles is 3P, 4P, the rated working voltage is AC400/690V, and the rated current is 250 - 400A. Rated insulation voltage AC1000V, rated shock withstand voltage 8KV. Adjustable technologies such as rated current and short-circuit current are adopted, making it convenient for customers to choose and accurately match actual electricity demand. Breaking capacity N type 400V rated limit short circuit breaking capacity 55kA, etc., ICS = 100% ICU. The mechanical life is 20000 times, the electrical life (400V) is 10000 times, and the parameters of the thermomagnetic and magnetic trippers are adjustable. The size is 100% compatible, easy to assemble, the operating mechanism is double insulated, a variety of accessories can be assembled, the handle lock prevents misoperation, and the materials are high-quality and environmentally friendly. Usage: In industrial and building power distribution systems, it provides flexible short-circuit and overload protection for devices with a rated…
